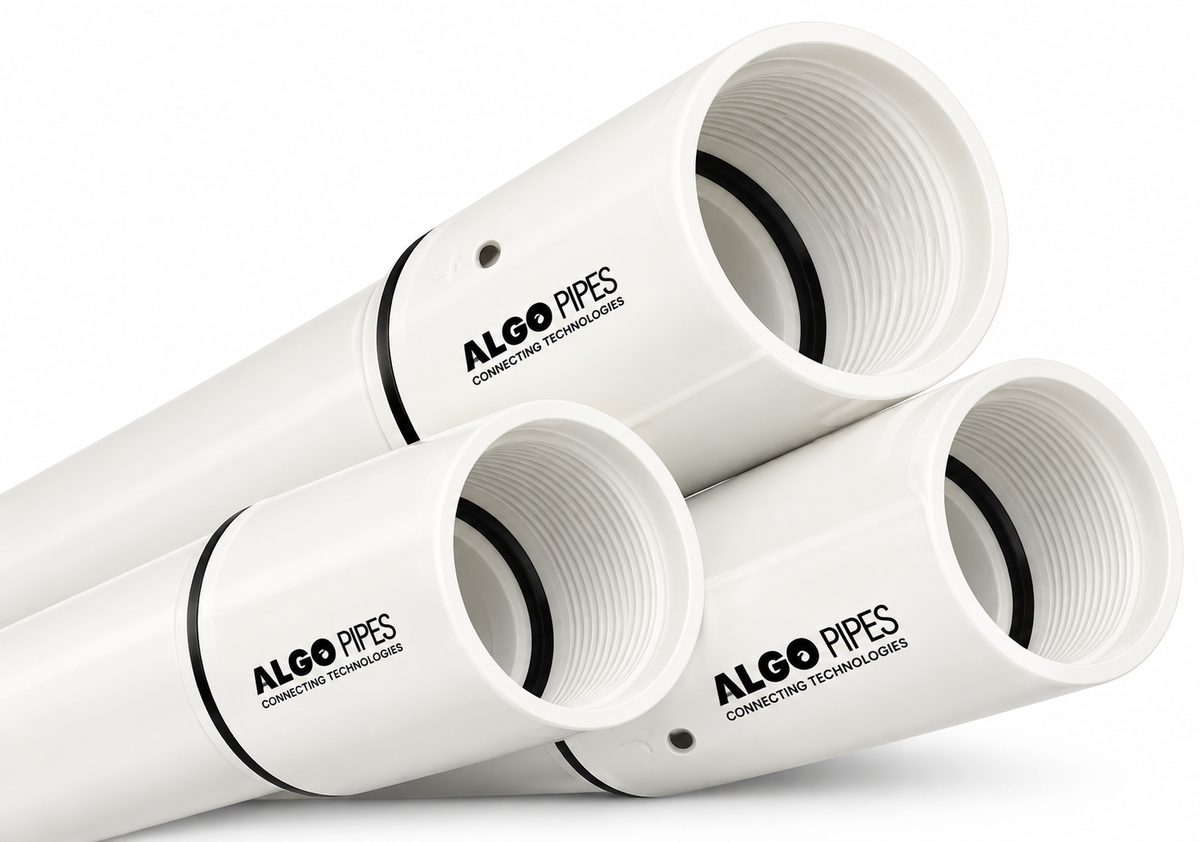

ALGO 1.25" STD uPVC Column Pipe
The ALGO 1.25" STD uPVC Column Pipe is designed for reliable water delivery in borehole and submersible pump installations. Manufactured from uPVC with a smooth internal surface, the pipe helps reduce hydraulic friction losses and supports efficient water flow through the pumping system.
The STD pipe features a 27 kg pressure rating and is suitable for installation depths of up to 260 meters. Its square-threaded jointing system and rubber gasket provide secure connection and pressure sealing while allowing quick and convenient installation.
Key Features
-
1.25" STD uPVC column pipe
-
27 kg pressure rating
-
Maximum installation depth of 260 meters
-
2.14 kg pipe weight
-
Smooth surface helps reduce hydraulic friction losses
-
Designed to support improved water flow
-
Internal and external square-threaded spigot ends
-
Rubber gasket for reliable jointing and pressure sealing
-
Special square thread for quick and easy installation
-
Internal sealing provision helps reduce friction loss and over-tightening
-
Step-ring provision helps prevent leakage and over-tightening
-
Suitable for vertical, horizontal or inclined installation
-
Maximum ambient temperature of 70°C
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Product Type | uPVC Column Pipe |
| Pipe Class | STD |
| Nominal Size | 1.25" / 32 mm |
| Nominal Outside Diameter | 42.16 mm |
| Maximum O.D. Including Coupler | 55.10 mm |
| Wall Thickness | 5.00 mm |
| Pressure Rating | 27 kg |
| Weight | 2.14 kg |
| Maximum Installation Depth | 260 meters |
| Maximum Ambient Temperature | 70°C |
| Installation Position | Vertical, Horizontal or Inclined |
| Material | uPVC |
Jointing & Sealing
The pipe incorporates internal and external square-threaded spigot ends designed to provide strength while allowing quick and easy assembly. A rubber gasket assists with pressure sealing, while the internal sealing and step-ring provisions help prevent leakage and reduce the risk of over-tightening during installation.
Applications
Ideal for:
-
Borehole installations
-
Submersible pump systems
-
Borehole water delivery
-
Groundwater pumping systems
-
Domestic water supply
-
Agricultural water systems
-
Water-transfer installations
The ALGO 1.25" STD uPVC Column Pipe combines a 27 kg pressure rating, 5.00 mm wall thickness and maximum installation depth of 260 meters with a secure square-threaded jointing system for dependable borehole and submersible pump installations.
