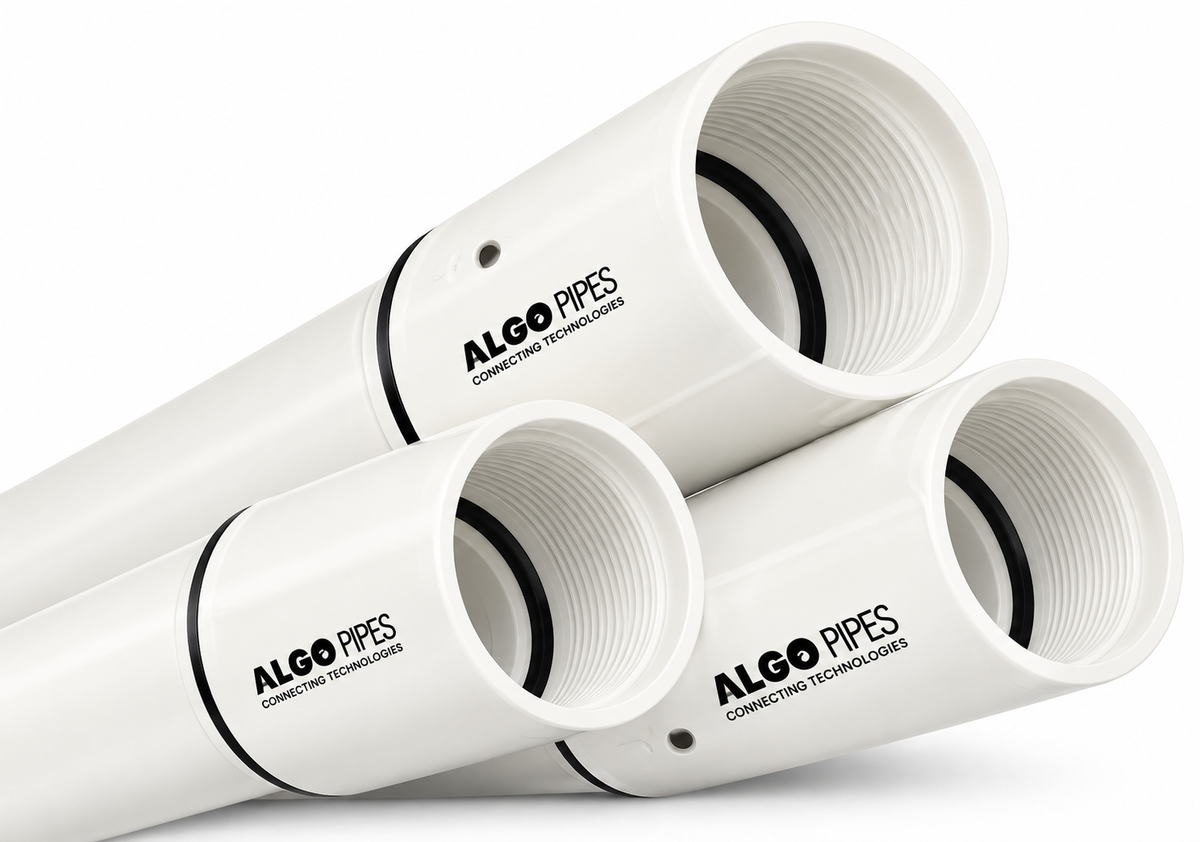

ALGO 1.5" STD uPVC Column Pipe
The ALGO 1.5" STD uPVC Column Pipe is designed for reliable water delivery in borehole and submersible pump installations. Its smooth internal surface helps reduce hydraulic friction losses, supporting efficient water flow through the pumping system.
The 1.5" STD pipe features a 27 kg pressure rating and is suitable for installation depths of up to 210 meters. Its square-threaded jointing system and rubber gasket provide secure connection and pressure sealing while allowing convenient installation.
Key Features
-
1.5" STD uPVC column pipe
-
27 kg pressure rating
-
Maximum installation depth of 210 meters
-
2.62 kg pipe weight
-
Smooth surface helps reduce hydraulic friction losses
-
Designed to support improved water flow
-
Internal and external square-threaded spigot ends
-
Rubber gasket for reliable jointing and pressure sealing
-
Special square thread allows quick and easy installation
-
Internal sealing provision helps prevent friction loss and over-tightening
-
Step-ring provision helps prevent leakage and over-tightening
-
Suitable for vertical, horizontal or inclined installation
-
Maximum ambient temperature of 70°C
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Product Type | uPVC Column Pipe |
| Pipe Class | STD |
| Nominal Size | 1.5" / 40 mm |
| Nominal Outside Diameter | 48.26 mm |
| Maximum O.D. Including Coupler | 62.50 mm |
| Wall Thickness | 5.20 mm |
| Pressure Rating | 27 kg |
| Weight | 2.62 kg |
| Maximum Installation Depth | 210 meters |
| Maximum Ambient Temperature | 70°C |
| Installation Position | Vertical, Horizontal or Inclined |
| Material | uPVC |
Jointing & Sealing
The pipe incorporates internal and external square-threaded spigot ends designed to provide strength while allowing quick and easy assembly. A rubber gasket provides reliable pressure sealing, while the internal sealing and step-ring provisions help prevent leakage and reduce the risk of over-tightening during installation.
Applications
Ideal for:
-
Borehole installations
-
Submersible pump systems
-
Borehole water delivery
-
Groundwater pumping systems
-
Domestic water supply
-
Agricultural water systems
-
Water-transfer installations
The ALGO 1.5" STD uPVC Column Pipe combines a 27 kg pressure rating, 5.20 mm wall thickness and maximum installation depth of 210 meters with a secure square-threaded jointing system for dependable borehole and submersible pump installations.
