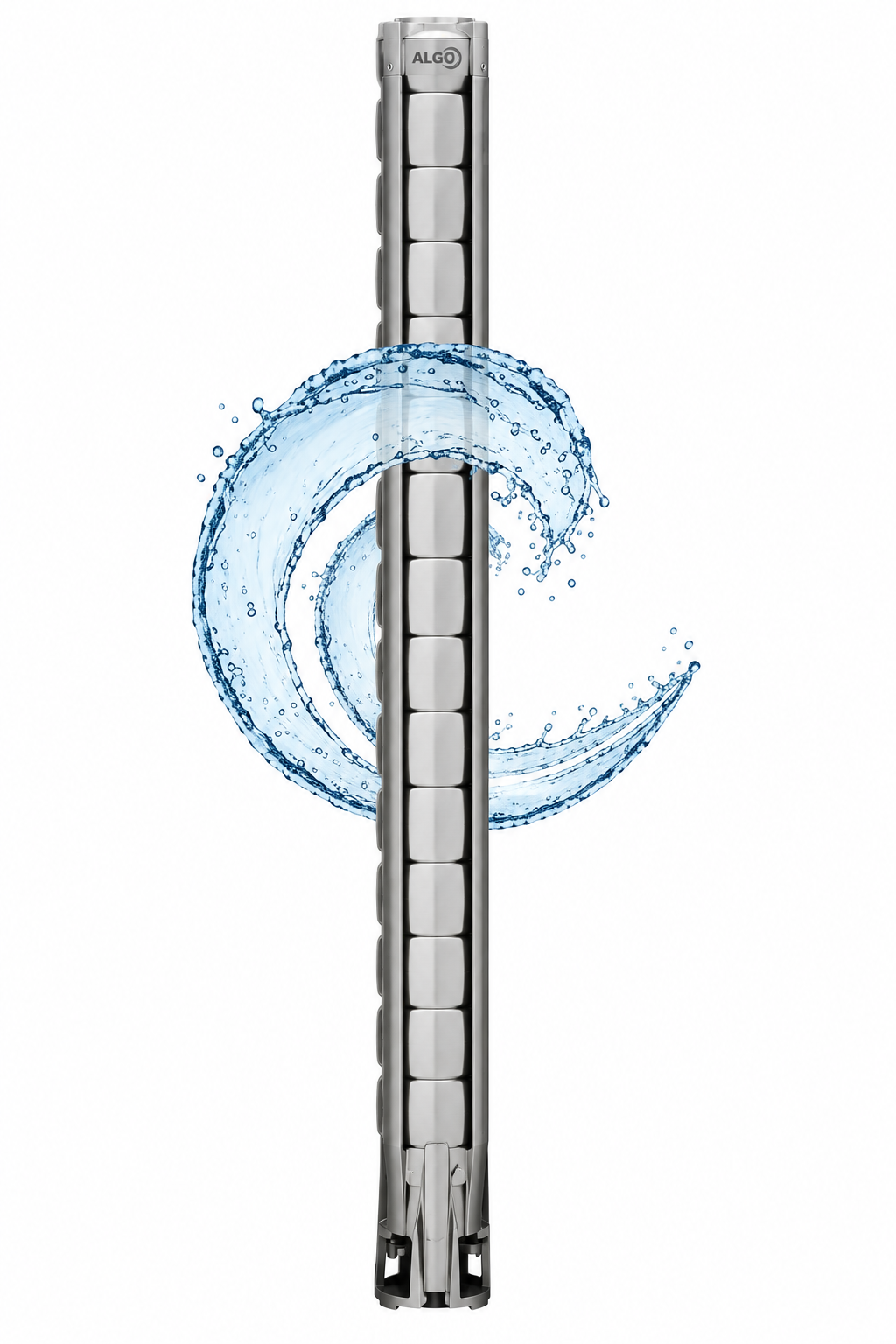

ALGO 10PS-160/13 – X-ALINOX 10" Stainless Steel Submersible Pump End
The ALGO 10PS-160/13 X-ALINOX is a 10" stainless steel submersible pump end designed for borehole and high-volume water supply applications. With its 160 m³/h hydraulic range, it is suited to submersible pumping systems requiring dependable high-volume water delivery for agricultural, irrigation and general water transfer applications.
The 10PS-160/13 is designed for use with a 170 kW submersible motor and features a 6" delivery outlet. Its stainless steel construction provides durability for demanding borehole pumping applications.
Key Features
-
10" stainless steel submersible pump end
-
X-ALINOX Series
-
Model 10PS-160/13
-
13-stage configuration
-
Designed for a 170 kW submersible motor
-
160 m³/h hydraulic range
-
6" delivery outlet
-
Stainless steel construction
-
Suitable for borehole installations
-
Designed for reliable high-volume water supply and transfer
-
Designed for use as part of a complete submersible pumping system
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Series | X-ALINOX |
| Model | 10PS-160/13 |
| Product Type | Stainless Steel Submersible Pump End |
| Nominal Diameter | 10" |
| Stages | 13 |
| Power | 170 kW |
| Hydraulic Range | 160 m³/h |
| Delivery Size | 6" |
Applications
Ideal for:
-
Borehole water supply
-
Agricultural water systems
-
Large-scale irrigation systems
-
Water transfer applications
-
High-volume water supply
-
Submersible borehole pumping systems
Please Note: This product is a pump end only and requires a compatible submersible motor and the necessary electrical and installation components to form a complete pumping system.
