Description

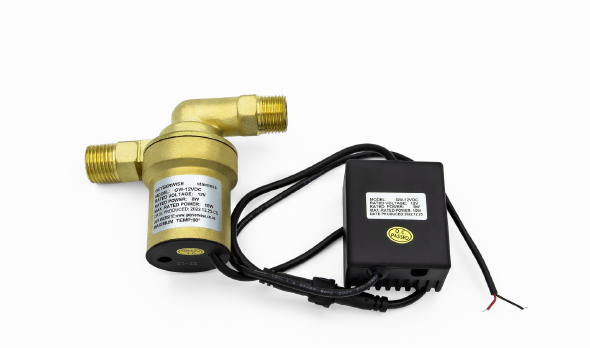

Use 12V pumped solar thermal water heating systems DC
Specification: 12V DC, Max 8Lpm, Max 2 m, 5 W
Soft start: 2W
Required Voltage scope: 7~17.7V,
Rated: 12V DC
System pressure: Operating = 600kpa, Tested = 3500kpa
Max continuous working liquid temperature: 90ºC
Max temperature/minimum period: 100ºC
Flow rate: 2L/min to 10L/min
Noise: 35 dB (±10%)
Size: 91 mm x 47 mm x 96 mm
Colour: Complete brass
