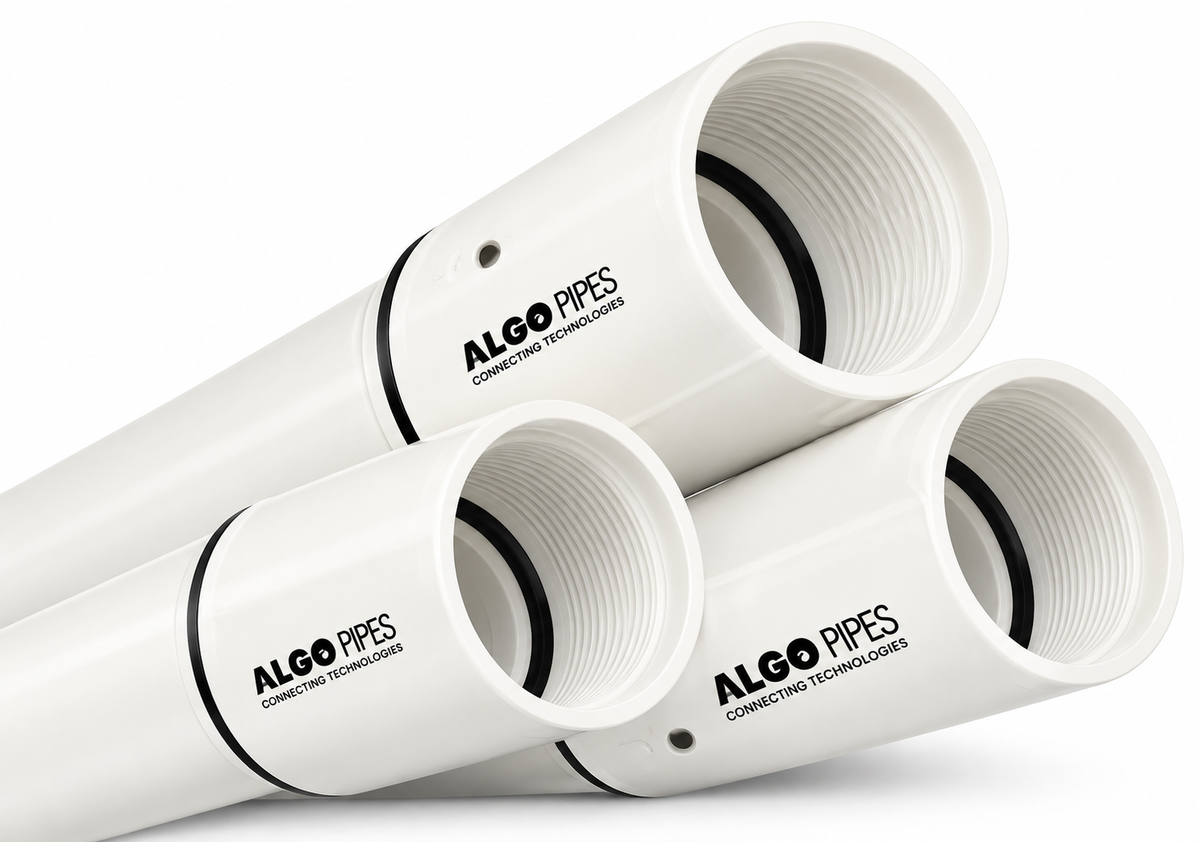

ALGO 2" SUPER HEAVY uPVC Column Pipe
The ALGO 2" SUPER HEAVY uPVC Column Pipe is designed for demanding deep borehole and submersible pump installations where higher pressure capacity and increased installation depth are required. Manufactured from durable uPVC, its smooth internal surface helps minimize hydraulic friction losses and supports efficient water flow through the pumping system.
The 2" SUPER HEAVY pipe features a 35 kg pressure rating and is suitable for installation depths of up to 350 meters. Its square-threaded jointing system, rubber gasket and specialized sealing provisions provide a secure connection while allowing quick and convenient installation.
Key Features
-
2" SUPER HEAVY uPVC column pipe
-
35 kg pressure rating
-
Maximum installation depth of 350 meters
-
5.48 kg pipe weight
-
Super heavy-duty construction for deep borehole installations
-
Smooth internal surface helps minimize hydraulic friction losses
-
Supports efficient water flow
-
Internal and external square-threaded spigot ends
-
Rubber gasket for reliable pressure sealing
-
Special square thread for quick and easy installation
-
Internal sealing provision helps reduce friction loss and over-tightening
-
Step-ring provision helps prevent leakage and over-tightening
-
Suitable for vertical, horizontal or inclined installation
-
Maximum ambient temperature of 70°C
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Product Type | uPVC Column Pipe |
| Pipe Class | SUPER HEAVY |
| Nominal Size | 2" / 50 mm |
| Nominal Outside Diameter | 60.32 mm |
| Maximum O.D. Including Coupler | 79.00 mm |
| Wall Thickness | 8.80 mm |
| Pressure Rating | 35 kg |
| Weight | 5.48 kg |
| Maximum Installation Depth | 350 meters |
| Maximum Ambient Temperature | 70°C |
| Installation Position | Vertical, Horizontal or Inclined |
| Material | uPVC |
Jointing & Sealing
The ALGO 2" SUPER HEAVY uPVC Column Pipe features internal and external square-threaded spigot ends designed for strong and convenient jointing. The rubber gasket provides reliable pressure sealing, while the internal sealing and step-ring provisions help prevent leakage and reduce the risk of over-tightening during installation.
Applications
Ideal for:
-
Deep borehole installations
-
Submersible pump systems
-
Borehole water delivery
-
Groundwater pumping systems
-
Agricultural water systems
-
Commercial water supply
-
High-pressure water delivery systems
-
Water-transfer installations
The ALGO 2" SUPER HEAVY uPVC Column Pipe combines a 35 kg pressure rating, 8.80 mm wall thickness and maximum installation depth of 350 meters, providing a robust column pipe solution for demanding deep borehole and submersible pump installations.
