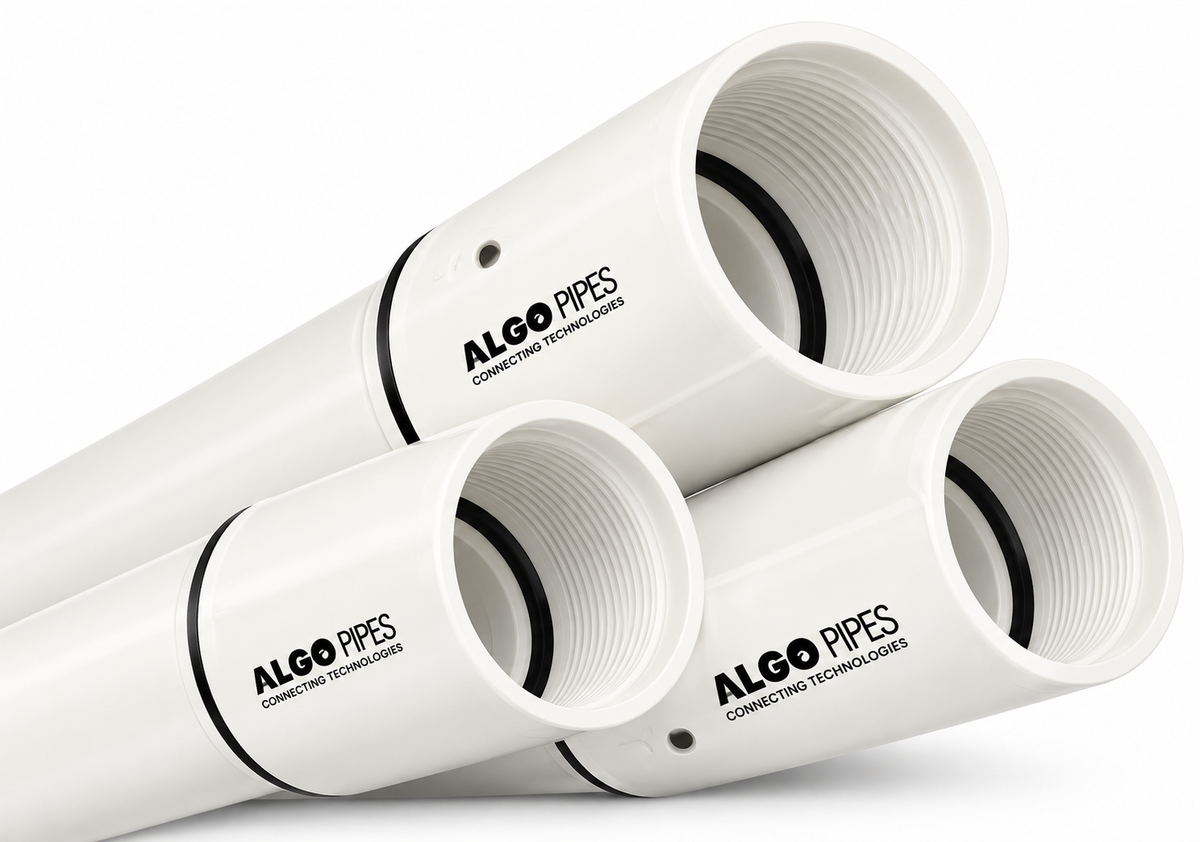

ALGO 3" HEAVY uPVC Column Pipe
The ALGO 3" HEAVY uPVC Column Pipe is designed for demanding borehole and submersible pump installations requiring increased pressure capacity and greater installation depth. Manufactured from durable uPVC, its smooth internal surface helps reduce hydraulic friction losses and supports efficient water flow through the pumping system.
The 3" HEAVY pipe features a 27 kg pressure rating and is suitable for installation depths of up to 270 meters. Its square-threaded jointing system and rubber gasket provide secure connection and reliable pressure sealing while allowing quick and convenient installation.
Key Features
-
3" HEAVY uPVC column pipe
-
27 kg pressure rating
-
Maximum installation depth of 270 meters
-
8.70 kg pipe weight
-
Heavy-duty construction for deeper installations
-
Smooth surface helps reduce hydraulic friction losses
-
Helps support efficient water flow
-
Internal and external square-threaded spigot ends
-
Rubber gasket for reliable jointing and pressure sealing
-
Special square thread for quick and easy installation
-
Internal sealing provision helps reduce friction loss and over-tightening
-
Step-ring provision helps prevent leakage and over-tightening
-
Suitable for vertical, horizontal or inclined installation
-
Maximum ambient temperature of 70°C
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Product Type | uPVC Column Pipe |
| Pipe Class | HEAVY |
| Nominal Size | 3" / 80 mm |
| Nominal Outside Diameter | 88.00 mm |
| Maximum O.D. Including Coupler | 105.00 mm |
| Wall Thickness | 9.50 mm |
| Pressure Rating | 27 kg |
| Weight | 8.70 kg |
| Maximum Installation Depth | 270 meters |
| Maximum Ambient Temperature | 70°C |
| Installation Position | Vertical, Horizontal or Inclined |
| Material | uPVC |
Jointing & Sealing
The pipe features internal and external square-threaded spigot ends designed to provide strong and convenient jointing. A rubber gasket provides reliable pressure sealing, while the internal sealing and step-ring provisions help prevent leakage and reduce the risk of over-tightening during installation.
Applications
Ideal for:
-
Deep borehole installations
-
Submersible pump systems
-
Borehole water delivery
-
Groundwater pumping systems
-
Domestic and commercial water supply
-
Agricultural water systems
-
Water-transfer installations
The ALGO 3" HEAVY uPVC Column Pipe combines a 27 kg pressure rating, 9.50 mm wall thickness and maximum installation depth of 270 meters, providing a heavy-duty column pipe solution for demanding borehole and submersible pump installations.
