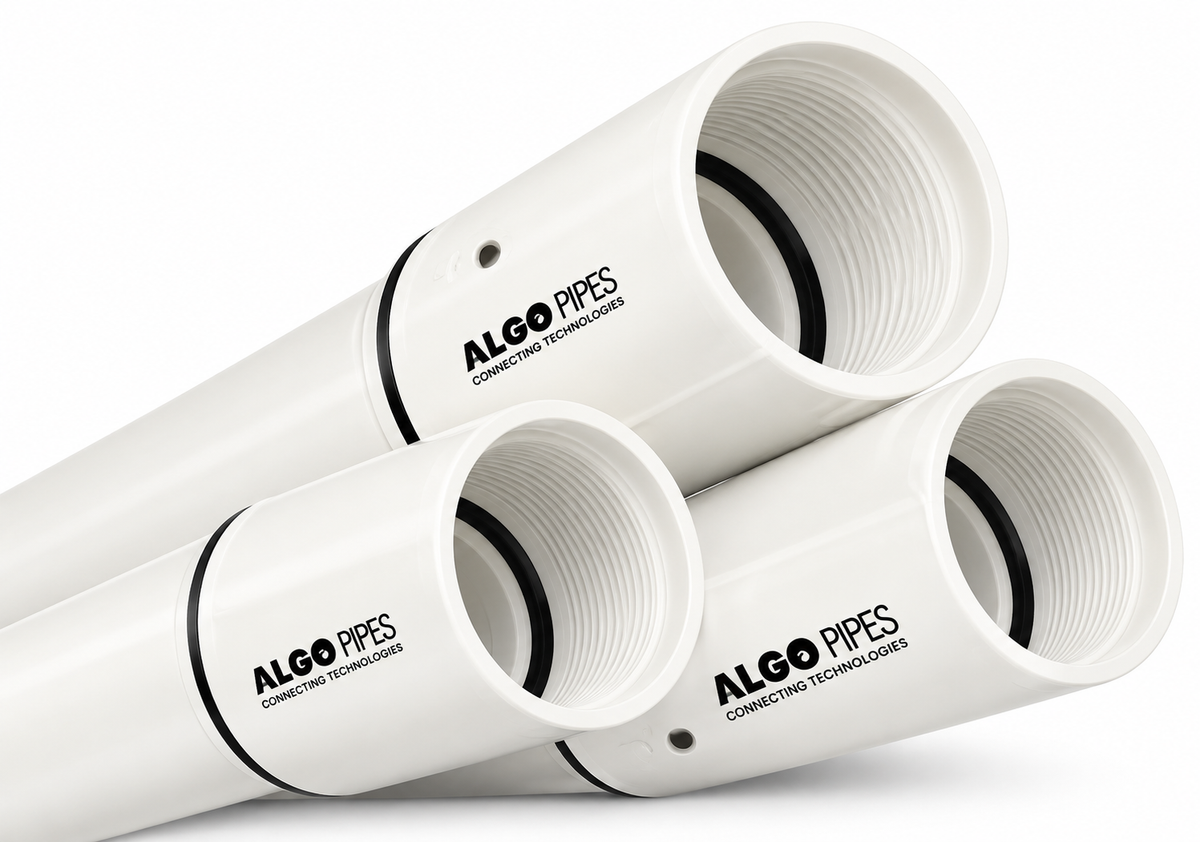

ALGO 4" HEAVY uPVC Column Pipe
The ALGO 4" HEAVY uPVC Column Pipe is designed for demanding borehole and submersible pump installations requiring increased pressure capacity and greater installation depth. Manufactured from durable uPVC, its extremely smooth internal surface helps minimize hydraulic friction losses and supports efficient water flow through the pumping system.
The 4" HEAVY pipe features a 27 kg pressure rating and is suitable for installation depths of up to 270 meters. Its square-threaded jointing system, rubber gasket and specialized sealing provisions provide a secure connection while supporting quick and convenient installation.
Key Features
-
4" HEAVY uPVC column pipe
-
27 kg pressure rating
-
Maximum installation depth of 270 meters
-
14.45 kg pipe weight
-
Heavy-duty construction for deeper borehole installations
-
Smooth internal surface helps minimize hydraulic friction losses
-
Supports efficient water flow
-
Internal and external square-threaded spigot ends
-
Rubber gasket for reliable pressure sealing
-
Special square thread for quick and easy installation
-
Internal sealing provision helps reduce friction loss and over-tightening
-
Step-ring provision helps prevent leakage and over-tightening
-
Suitable for vertical, horizontal or inclined installation
-
Maximum ambient temperature of 70°C
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Product Type | uPVC Column Pipe |
| Pipe Class | HEAVY |
| Nominal Size | 4" / 100 mm |
| Nominal Outside Diameter | 113.80 mm |
| Maximum O.D. Including Coupler | 132.00 mm |
| Wall Thickness | 11.50 mm |
| Pressure Rating | 27 kg |
| Weight | 14.45 kg |
| Maximum Installation Depth | 270 meters |
| Maximum Ambient Temperature | 70°C |
| Installation Position | Vertical, Horizontal or Inclined |
| Material | uPVC |
Jointing & Sealing
The ALGO 4" HEAVY uPVC Column Pipe features internal and external square-threaded spigot ends for strong and convenient jointing. The rubber gasket provides reliable pressure sealing, while the internal sealing and step-ring provisions help prevent leakage and reduce the risk of over-tightening during installation.
Applications
Ideal for:
-
Deep borehole installations
-
Submersible pump systems
-
Borehole water delivery
-
Groundwater pumping systems
-
Agricultural water systems
-
Commercial water supply
-
Water-transfer installations
The ALGO 4" HEAVY uPVC Column Pipe combines a 27 kg pressure rating, 11.50 mm wall thickness and maximum installation depth of 270 meters, providing a heavy-duty solution for demanding borehole and submersible pump installations.
