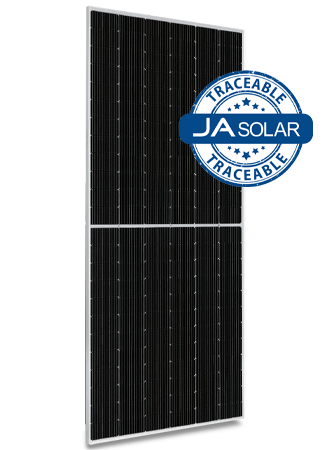

JA Solar 600W N-Type TOPCon MBB Double Glass Bifacial Solar Panel – Silver Frame QC4
The JA Solar 600W N-Type TOPCon Double Glass Bifacial Solar Panel is a high-efficiency photovoltaic module designed to deliver powerful and reliable energy generation for residential, commercial, and industrial solar installations.
Featuring advanced N-Type TOPCon cell technology, a multi-busbar (MBB) design and half-cell configuration, the module achieves an impressive 23.2% efficiency with a rated output of 600W. N-Type technology provides excellent long-term performance, reduced light-induced degradation (LID), improved low-light response and a favourable temperature coefficient for reliable energy production across varying operating conditions.
The panel's bifacial design allows solar energy to be captured from both the front and rear surfaces, providing the potential for additional energy generation when installed in suitable environments where reflected light can reach the rear of the module.
A durable double-glass construction provides enhanced protection against moisture, dust and environmental stresses while supporting long-term outdoor performance. The module is backed by a 12-year product warranty and a 30-year linear power output warranty.
The panel also incorporates the JA Solar Integrated Traceable System and is supplied with QC Solar QC4.10-35 connectors rated to 1500V.
Key Features
-
600W Rated Output – High-power module suitable for demanding solar installations
-
23.2% Module Efficiency – Maximises power generation from available installation space
-
N-Type TOPCon Technology – Designed for high efficiency, low degradation and reliable long-term performance
-
MBB Half-Cell Configuration – Supports improved electrical performance and power output
-
Bifacial Energy Generation – Captures solar irradiation from both the front and rear of the module
-
Double Glass Construction – Provides increased durability and environmental protection
-
Excellent Low-Light Performance – Improved energy generation under weaker illumination conditions
-
Low Temperature Coefficient – Helps maintain performance as module temperature increases
-
Integrated Traceability – Features JA Solar's Integrated Traceable System
-
QC4 Connectors – Supplied with QC Solar QC4.10-35 1500V connectors
-
Silver Frame – Durable framed construction for professional solar installations
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | JAM72D-40-600-MB-TS-QC4 |
| Rated Power | 600W |
| Cell Technology | N-Type TOPCon |
| Module Type | Double Glass Bifacial |
| Efficiency | 23.2% |
| VMPP | 43.76V |
| IMPP | 13.71A |
| Open Circuit Voltage (Voc) | 52.4V |
| Short Circuit Current (Isc) | 14.48A |
| Temperature Coefficient (Pmax) | -0.30%/°C |
| Dimensions | 2,278 × 1,134 × 30 mm |
| Weight | 33 kg |
| Frame Colour | Silver |
| Connector | QC Solar QC4.10-35 |
| Connector Voltage Rating | 1500V |
| Clamp Position | Long side only |
| MCS Reference | BABT 8515-341-600W |
| Pallet Classification | Oversized |
Warranty
-
Product Warranty: 12 Years
-
Linear Power Output Warranty: 30 Years
Applications
Ideal for a wide range of photovoltaic installations, including:
-
Residential solar and backup power systems
-
Commercial solar installations
-
Industrial PV systems
-
Ground-mounted solar arrays
-
Large-scale rooftop installations
-
Bifacial installations designed to benefit from rear-side irradiance
Please Note: Due to the panel's 2,278 × 1,134 mm dimensions and 33 kg weight, appropriate mounting equipment and handling procedures should be used. The module must be clamped along the long sides only in accordance with the manufacturer's installation requirements.
