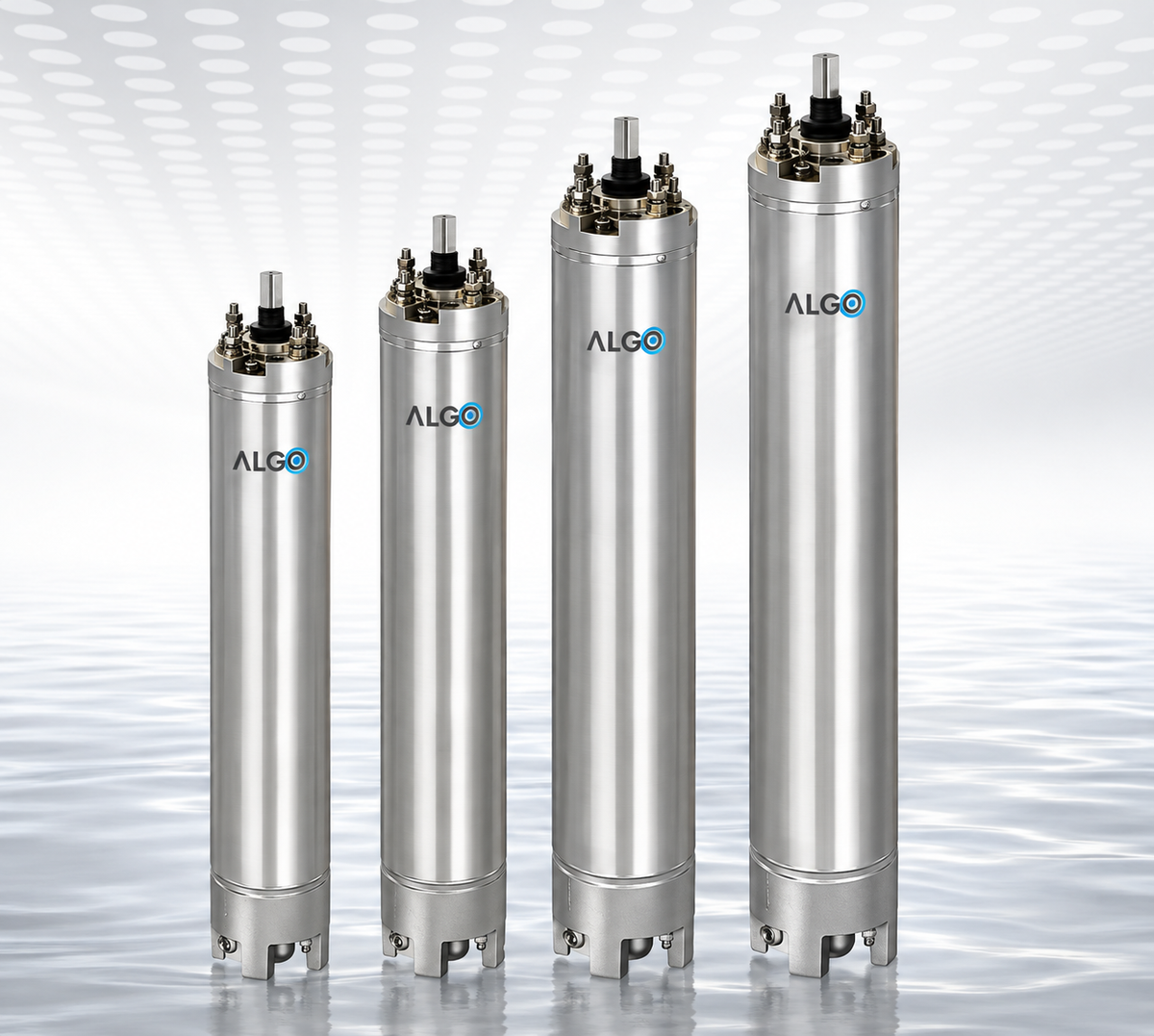

ALGO A6SF-185T5 – AQUA Series 6" Water Filled Three-Phase Submersible Motor – 525V
The ALGO A6SF-185T5 AQUA Series is a 6" water filled three-phase submersible motor designed for borehole and high-capacity water pumping applications. Built for dependable submerged operation, it is suitable for use with compatible 6" submersible pump ends in agricultural, irrigation, commercial and general water supply systems.
The A6SF-185T5 has an 18.5 kW power rating and a 525V three-phase configuration. It has a nominal speed of 2900 rpm, Class Y insulation, and an IP58 / IP68 degree of protection, making it suitable for continuous submerged operation in demanding borehole environments.
Key Features
-
6" water filled submersible motor
-
AQUA Series
-
Model A6SF-185T5
-
18.5 kW motor power
-
Three-phase configuration
-
525V motor version
-
Nominal speed of 2900 rpm
-
Class Y insulation
-
IP58 / IP68 degree of protection
-
S1 continuous duty rating
-
Counter-clockwise direction of rotation
-
Minimum cooling flow of 0.15 m/sec
-
Up to 20 starts per hour
-
Permanently connected cable leadout
-
3 & 4 core PVC flat cable configuration
-
Suitable for borehole and high-capacity water pumping systems
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Series | AQUA |
| Model | A6SF-185T5 |
| Product Type | Water Filled Submersible Motor |
| Nominal Diameter | 6" Motor (100 mm) |
| Maximum Outer Diameter | 144 mm |
| Power | 18.5 kW |
| Series Power Range | 4–45 kW |
| Phase | Three Phase |
| Voltage | 525V |
| Nominal Speed | 2900 rpm |
| Insulation Class | Y |
| Degree of Protection | IP58 / IP68 |
| Direction of Rotation | Counter-clockwise |
| Duty Type | S1 Continuous |
| Minimum Cooling Flow | 0.15 m/sec |
| Maximum Liquid Temperature | 33°C / 70°C with PE2-PA winding |
| Starts Per Hour | 20 |
| Cable Leadout | Permanently Connected |
| Cable Type | 3 & 4 Core PVC Flat Cable |
Materials of Construction – A6S / A6SF
| Component | Material |
|---|---|
| Upper & Lower Housing | Casted SS304 |
| Stator Shell | SS304 |
| Thrust Pad | Carbon / Teflon |
| Thrust Bearing | SS304 / SS420 |
| Diaphragm | Nitrile Rubber |
| Motor Base | SS304 |
| Upper Housing Shell | CI, FG 200 / 260 |
| Shaft | SS420 / 431 |
| Sleeve | SS410 |
Applications
Ideal for:
-
Borehole pumping systems
-
Agricultural water supply
-
Irrigation systems
-
Commercial water supply
-
High-capacity water transfer
-
Deep-well pumping installations
-
Compatible 6" submersible pump systems
Please Note: This product is a submersible motor only and requires a compatible submersible pump end and the necessary electrical, cabling and installation components to form a complete pumping system.
