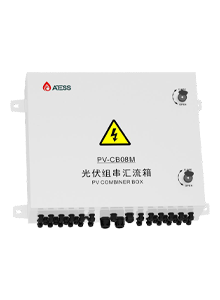

ATESS 8-Channel PV Combiner Box

ATESS 8-Channel PV Combiner Box

The ATESS 8-Channel PV Combiner Box is designed to safely combine multiple PV module strings into a single DC output, providing organised string management and essential electrical protection for larger solar PV installations.

Featuring 8 PV input channels, the combiner box incorporates comprehensive DC protection, including fuses and surge protection (SPD). An integrated smart controller supports system monitoring, while the RS485 communication interface enables communication with compatible monitoring equipment.

Its durable IP65-rated enclosure provides protection against dust and water ingress, making it suitable for demanding solar installation environments.

Key Features

• 8-Channel PV String Combination – Combines multiple PV module strings into a consolidated DC output

• Integrated DC Protection – Includes fuse and surge protection (SPD)

• Lightning Protection – Helps protect connected PV equipment against electrical surges

• Smart Controller – Integrated controller for system monitoring

• Optional String Monitoring – Supports individual PV string monitoring where configured

• RS485 Communication – Provides a communication interface for compatible monitoring systems

• IP65 Protection Rating – Suitable for demanding installation environments

• Flexible Design – Designed for integration into larger PV systems

Technical Specifications

Applications

Suitable for solar PV installations requiring the connection and protection of multiple PV strings, particularly commercial, industrial and larger-scale solar systems.

Please Note: The combiner box must be selected according to the PV array's string voltage, current and configuration to ensure compatibility with the connected inverter or power conversion system.
