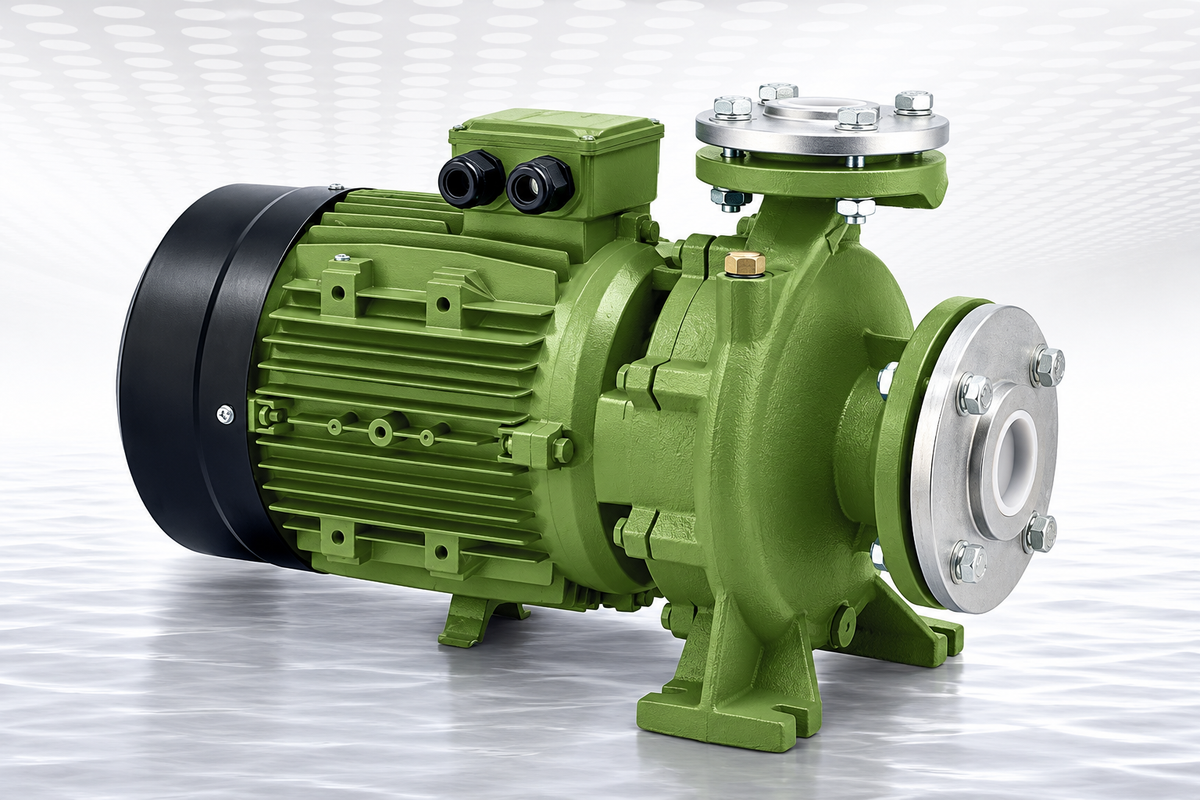

ALGO CM 32-160B – CM Series Close Coupled Centrifugal Pump
The ALGO CM 32-160B is a close coupled centrifugal pump designed for reliable clean-water pumping and general water transfer applications. Its compact close coupled configuration combines the pump and motor into a practical single-unit design, making it suitable for agricultural, irrigation, commercial and general water supply systems.
The CM 32-160B is equipped with a 2.2 kW / 3 HP three-phase motor and features a 50 × 32 mm connection size. Operating at 2900 rpm on a 380V–415V, 50Hz three-phase supply, it is designed for continuous-duty pumping applications.
Key Features
-
CM Series close coupled centrifugal pump
-
Model CM 32-160B
-
2.2 kW / 3 HP motor power
-
Three-phase motor configuration
-
380V–415V, 50Hz AC supply
-
2900 rpm operating speed
-
50 × 32 mm connection size
-
IP55 degree of protection
-
Class F / B insulation
-
S1 continuous duty operation
-
Compact close coupled pump and motor design
-
Suitable for clean-water pumping and transfer
-
Suitable for agricultural, irrigation and commercial water systems
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Series | CM |
| Model | CM 32-160B |
| Product Type | Close Coupled Centrifugal Pump |
| Motor Power | 2.2 kW / 3 HP |
| Phase | Three Phase |
| Voltage | 380V–415V |
| Frequency | 50Hz |
| Speed | 2900 rpm |
| Connection Size | 50 × 32 mm |
| Degree of Protection | IP55 |
| Insulation Class | F / B |
| Duty Type | S1 Continuous |
| Pump Configuration | Close Coupled Centrifugal |
Performance
| Flow Rate | Head |
|---|---|
| 150 L/min | 26 m |
| 200 L/min | 25 m |
| 250 L/min | 24 m |
| 300 L/min | 22 m |
| 350 L/min | 21 m |
The CM 32-160B delivers up to approximately 26 m head across the supplied performance data, with listed flow points ranging from 150 to 350 L/min.
Applications
Ideal for:
-
General clean-water supply
-
Agricultural water systems
-
Irrigation systems
-
Water transfer applications
-
Tank filling
-
Commercial water supply
-
Water circulation systems
-
General-purpose centrifugal pumping
The ALGO CM 32-160B provides a dependable 2.2 kW close coupled centrifugal pumping solution for applications requiring continuous operation and reliable clean-water transfer.
