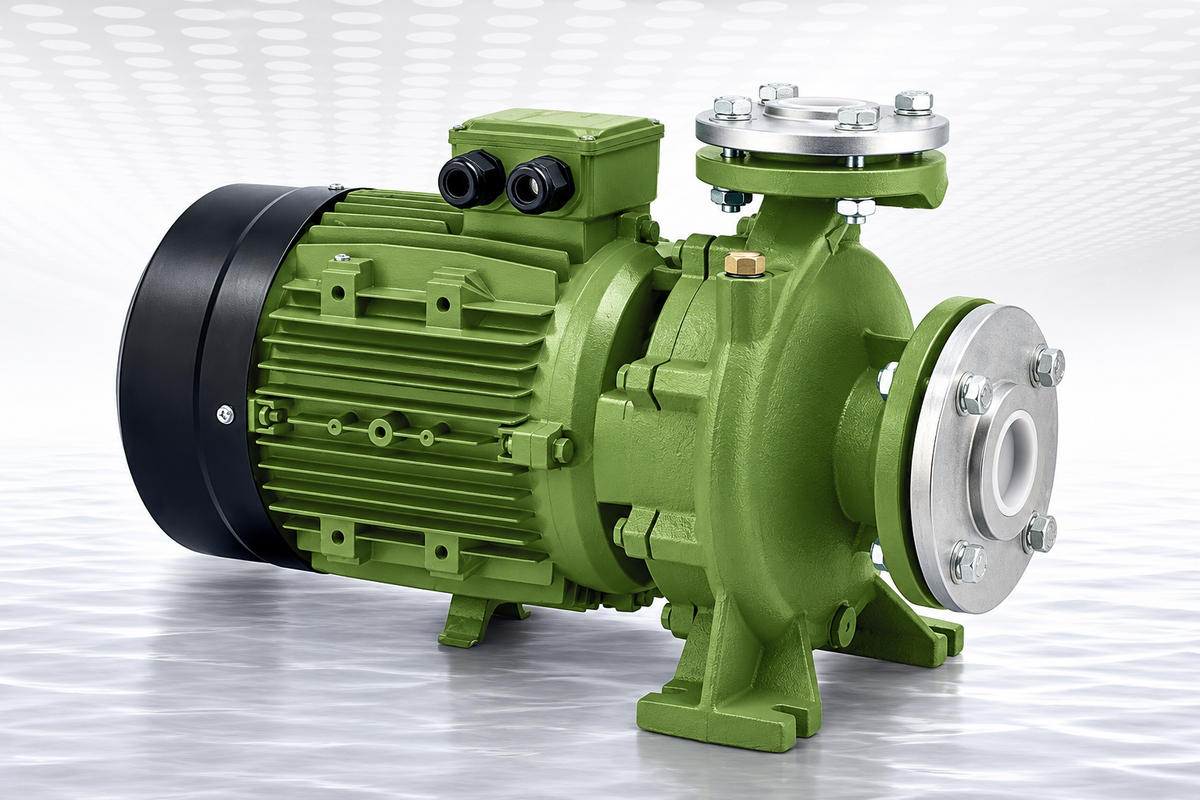

ALGO CM 32-160C – CM Series Close Coupled Centrifugal Pump
The ALGO CM 32-160C is a close coupled centrifugal pump designed for reliable clean-water pumping and general water transfer applications. Its compact close coupled configuration combines the pump and motor into a practical single-unit design, making it suitable for agricultural, irrigation, commercial and general water supply systems.
The CM 32-160C is equipped with a 1.5 kW three-phase motor and features a 50 × 32 mm connection size. Operating at 2900 rpm on a 380V–415V, 50Hz three-phase supply, it is designed for continuous-duty pumping applications where dependable water movement is required.
Key Features
-
CM Series close coupled centrifugal pump
-
Model CM 32-160C
-
1.5 kW motor power
-
Three-phase motor configuration
-
380V–415V, 50Hz AC supply
-
2900 rpm operating speed
-
50 × 32 mm connection size
-
IP55 degree of protection
-
Class F / B insulation
-
S1 continuous duty operation
-
Compact close coupled pump and motor design
-
Suitable for clean-water pumping and transfer
-
Designed for agricultural, irrigation and general water supply applications
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Series | CM |
| Model | CM 32-160C |
| Product Type | Close Coupled Centrifugal Pump |
| Motor Power | 1.5 kW |
| Phase | Three Phase |
| Voltage | 380V–415V |
| Frequency | 50Hz |
| Speed | 2900 rpm |
| Connection Size | 50 × 32 mm |
| Degree of Protection | IP55 |
| Insulation Class | F / B |
| Duty Type | S1 Continuous |
| Pump Configuration | Close Coupled Centrifugal |
CM Series Operating Range
| Specification | Range |
|---|---|
| Head Range | 8–73 m |
| Flow Range | 50–3320 L/min |
The head and flow figures above represent the overall CM Series operating range. Actual performance depends on the specific pump model and operating point.
Applications
Ideal for:
-
General clean-water supply
-
Agricultural water systems
-
Irrigation systems
-
Water transfer applications
-
Tank filling and water circulation
-
Commercial water supply
-
General-purpose centrifugal pumping systems
The ALGO CM 32-160C provides a compact and dependable centrifugal pumping solution for applications requiring a 1.5 kW three-phase close coupled pump with continuous-duty capability.
