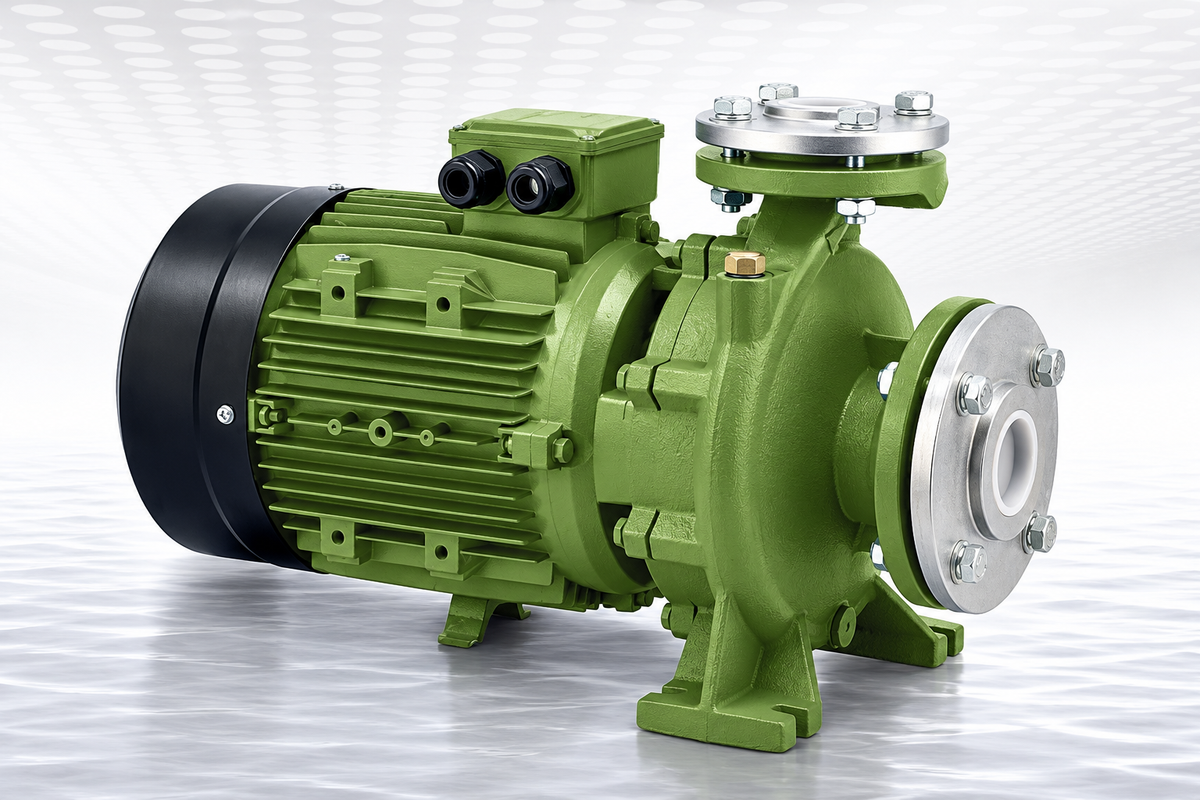

ALGO CM 50-125A – CM Series Close Coupled Centrifugal Pump
The ALGO CM 50-125A is a close coupled centrifugal pump designed for reliable clean-water pumping and water transfer applications. Its compact close coupled configuration combines the pump and motor into a single-unit design, making it suitable for agricultural, irrigation, commercial and general water supply systems requiring dependable continuous operation.
The CM 50-125A is equipped with a 4 kW / 5.5 HP three-phase motor. Operating at 2900 rpm on a 380V–415V, 50Hz three-phase supply, it provides efficient water delivery for a variety of clean-water pumping applications.
Key Features
-
CM Series close coupled centrifugal pump
-
Model CM 50-125A
-
4 kW / 5.5 HP motor power
-
Three-phase motor configuration
-
380V–415V, 50Hz AC supply
-
2900 rpm operating speed
-
IP55 degree of protection
-
Class F / B insulation
-
S1 continuous duty operation
-
Compact close coupled pump and motor design
-
Suitable for clean-water pumping and transfer
-
Ideal for agricultural, irrigation and commercial water systems
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Series | CM |
| Model | CM 50-125A |
| Product Type | Close Coupled Centrifugal Pump |
| Motor Power | 4 kW / 5.5 HP |
| Phase | Three Phase |
| Voltage | 380V–415V |
| Frequency | 50Hz |
| Speed | 2900 rpm |
| Degree of Protection | IP55 |
| Insulation Class | F / B |
| Duty Type | S1 Continuous |
| Pump Configuration | Close Coupled Centrifugal |
Applications
Ideal for:
-
Agricultural water supply
-
Irrigation systems
-
General clean-water supply
-
Water transfer applications
-
Tank filling and transfer
-
Commercial water systems
-
Water circulation systems
-
General-purpose centrifugal pumping
The ALGO CM 50-125A provides a dependable 4 kW close coupled centrifugal pumping solution for installations requiring continuous operation and efficient clean-water transfer.
