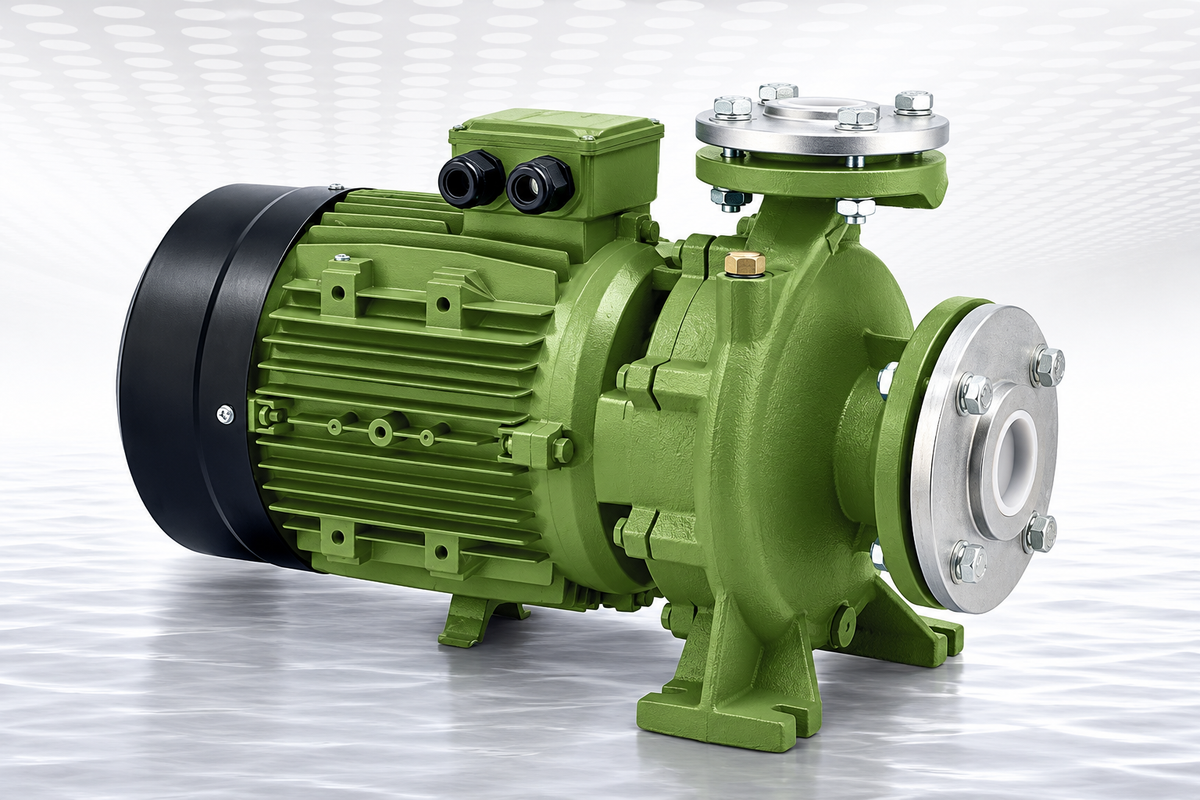

ALGO CM 65-160B – CM Series Close Coupled Centrifugal Pump
The ALGO CM 65-160B is a close coupled centrifugal pump designed for high-volume clean-water pumping and water transfer applications. Its close coupled configuration combines the pump and motor into a compact single-unit design, making it suitable for agricultural, irrigation, commercial and general water supply systems requiring dependable continuous operation.
The CM 65-160B is equipped with an 11 kW / 15 HP three-phase motor. Operating at 2900 rpm on a 380V–415V, 50Hz three-phase supply, it delivers strong flow and head performance for demanding clean-water applications.
Key Features
-
CM Series close coupled centrifugal pump
-
Model CM 65-160B
-
11 kW / 15 HP motor power
-
Three-phase motor configuration
-
380V–415V, 50Hz AC supply
-
2900 rpm operating speed
-
IP55 degree of protection
-
Class F / B insulation
-
S1 continuous duty operation
-
High-volume centrifugal pumping performance
-
Compact close coupled pump and motor design
-
Suitable for clean-water pumping and transfer
-
Ideal for agricultural, irrigation and commercial water systems
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Series | CM |
| Model | CM 65-160B |
| Product Type | Close Coupled Centrifugal Pump |
| Motor Power (P2) | 11 kW / 15 HP |
| Input Power (P1) | 13 kW |
| Rated Current at 400V | 22.5 A |
| Phase | Three Phase |
| Voltage | 380V–415V |
| Frequency | 50Hz |
| Speed | 2900 rpm |
| Degree of Protection | IP55 |
| Insulation Class | F / B |
| Duty Type | S1 Continuous |
| Pump Configuration | Close Coupled Centrifugal |
Performance
| Flow Rate | Head |
|---|---|
| 0 L/min | 33 m |
| 700 L/min | 34.6 m |
| 800 L/min | 34.4 m |
| 900 L/min | 34.2 m |
| 1,000 L/min | 34 m |
| 1,100 L/min | 33.7 m |
| 1,200 L/min | 33.3 m |
| 1,300 L/min | 32.8 m |
| 1,400 L/min | 32.1 m |
| 1,600 L/min | 30.6 m |
| 1,800 L/min | 28.8 m |
| 2,000 L/min | 26.7 m |
| 2,200 L/min | 24.1 m |
| 2,400 L/min | 21.1 m |
The CM 65-160B delivers approximately 34.6 m of head at 700 L/min, 34 m at 1,000 L/min, 26.7 m at 2,000 L/min, and 21.1 m at 2,400 L/min, providing dependable performance across a substantial flow range.
Applications
Ideal for:
-
Agricultural water supply
-
Irrigation systems
-
High-volume water transfer
-
General clean-water supply
-
Tank filling and transfer
-
Commercial water systems
-
Water circulation systems
-
General-purpose centrifugal pumping
The ALGO CM 65-160B provides a powerful 11 kW close coupled centrifugal pumping solution for applications requiring high flow rates, dependable head performance and continuous clean-water transfer.
