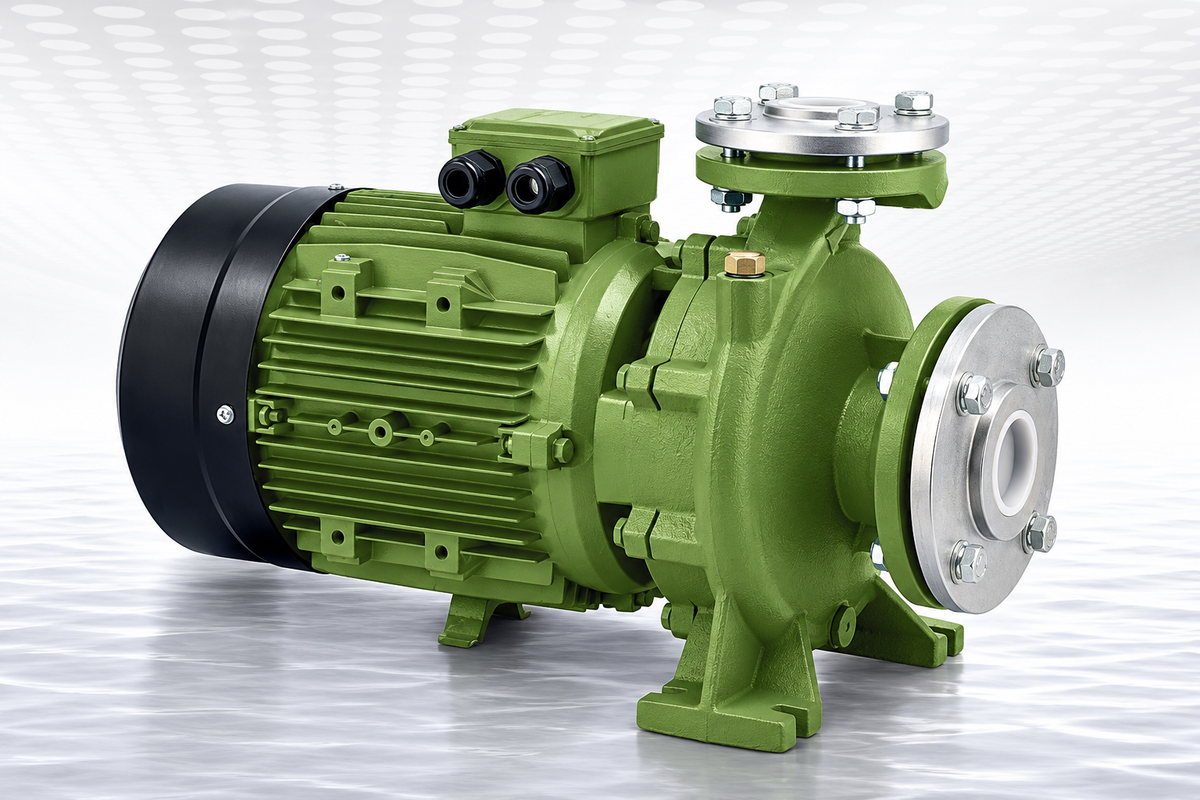

ALGO CM 65-200B – CM Series Close Coupled Centrifugal Pump
The ALGO CM 65-200B is a powerful close coupled centrifugal pump designed for high-volume clean-water pumping and water transfer applications. Its close coupled configuration combines the pump and motor into a compact single-unit design, making it suitable for agricultural, irrigation, commercial and general water supply systems requiring reliable continuous operation.
The CM 65-200B is equipped with an 18.5 kW / 25 HP three-phase motor. Operating at 2900 rpm on a 380V–415V, 50Hz three-phase supply, it delivers strong flow and head performance for demanding clean-water applications.
Key Features
-
CM Series close coupled centrifugal pump
-
Model CM 65-200B
-
18.5 kW / 25 HP motor power
-
Three-phase motor configuration
-
380V–415V, 50Hz AC supply
-
2900 rpm operating speed
-
IP55 degree of protection
-
Class F / B insulation
-
S1 continuous duty operation
-
High-volume centrifugal pumping performance
-
Compact close coupled pump and motor design
-
Suitable for clean-water pumping and transfer
-
Ideal for agricultural, irrigation and commercial water systems
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Series | CM |
| Model | CM 65-200B |
| Product Type | Close Coupled Centrifugal Pump |
| Motor Power (P2) | 18.5 kW / 25 HP |
| Input Power (P1) | 22.6 kW |
| Rated Current at 400V | 38.2 A |
| Phase | Three Phase |
| Voltage | 380V–415V |
| Frequency | 50Hz |
| Speed | 2900 rpm |
| Degree of Protection | IP55 |
| Insulation Class | F / B |
| Duty Type | S1 Continuous |
| Pump Configuration | Close Coupled Centrifugal |
Performance
| Flow Rate | Head |
|---|---|
| 0 L/min | 51.6 m |
| 900 L/min | 52.6 m |
| 1,000 L/min | 52.2 m |
| 1,100 L/min | 51.8 m |
| 1,200 L/min | 51 m |
| 1,300 L/min | 50.2 m |
| 1,400 L/min | 49.3 m |
| 1,600 L/min | 47.1 m |
| 1,800 L/min | 44.1 m |
| 2,000 L/min | 40.9 m |
| 2,200 L/min | 36.6 m |
| 2,400 L/min | 31.3 m |
The CM 65-200B delivers approximately 52.6 m of head at 900 L/min, 49.3 m at 1,400 L/min, 40.9 m at 2,000 L/min, and 31.3 m at 2,400 L/min, providing strong performance across a substantial flow range.
Applications
Ideal for:
-
Agricultural water supply
-
Irrigation systems
-
High-volume water transfer
-
General clean-water supply
-
Tank filling and transfer
-
Commercial water systems
-
Water circulation systems
-
General-purpose centrifugal pumping
The ALGO CM 65-200B provides a powerful 18.5 kW close coupled centrifugal pumping solution for applications requiring high flow rates, strong head performance and dependable continuous clean-water transfer.
