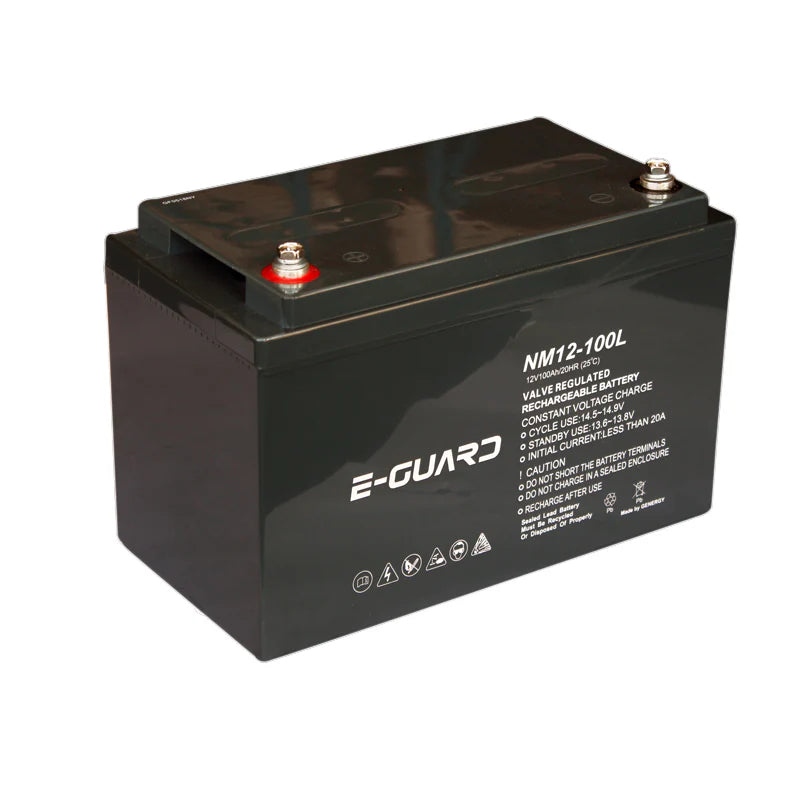

E-GUARD 12V 100Ah GEL Deep Cycle Battery – Long Life Energy Storage
The E-GUARD NML Long Life Battery range is engineered with advanced GEL technology and an AGM separator (commonly known as Lead Crystal technology), making it an ideal energy storage solution for solar and alternative energy systems. Designed for durability, reliability, and long service life, this battery delivers consistent deep cycle performance in demanding applications.
With a design floating life of up to 10 years at 20°C, the E-GUARD 12V 100Ah battery is perfect for renewable energy systems, backup power installations, and off-grid applications requiring dependable power storage.
Key Features
-
Advanced GEL + AGM Separator Technology
-
Long Design Life – Up to 10 Years
-
Excellent Deep Cycle Performance
-
Ideal for Solar & Renewable Energy Storage
-
Low Internal Resistance for Efficient Power Delivery
-
Maintenance-Free Operation
-
Low Self-Discharge Rate
-
Reliable Performance Across Wide Temperature Ranges
Typical Applications
-
Solar Energy Systems
-
Wind Energy Systems
-
UPS & EPS Backup Systems
-
Power Utility Systems
-
Off-Grid Power Installations
-
Inverter Backup Systems
Technical Specifications
-
Nominal Voltage: 12V
-
Capacity:
-
106.4Ah @ 20HR
-
103.8Ah @ 10HR
-
-
Internal Resistance: 5mΩ
-
Maximum Discharge Current: 1000A (5 Seconds)
-
Recommended Charge Voltage:
-
Cycle Use: 14.7V – 14.9V
-
Standby Use: 13.6V – 13.8V
-
-
Maximum Charge Current: 27A
-
Operating Temperature Range:
-
Discharge: -15°C to 50°C
-
Charge: 0°C to 50°C
-
Storage: -15°C to 50°C
-
-
Recommended Operating Temperature: 15°C – 25°C
-
Self-Discharge: Approximately 3% per month @ 20°C
Dimensions & Weight
-
Length: 395mm
-
Width: 110mm
-
Height: 286mm
-
Total Height: 286mm
-
Weight: 31.7kg
Installation Notice
All solar products, power systems, water heating, gas products, and associated components must be installed by appropriately qualified personnel in accordance with local wiring regulations and standards.
