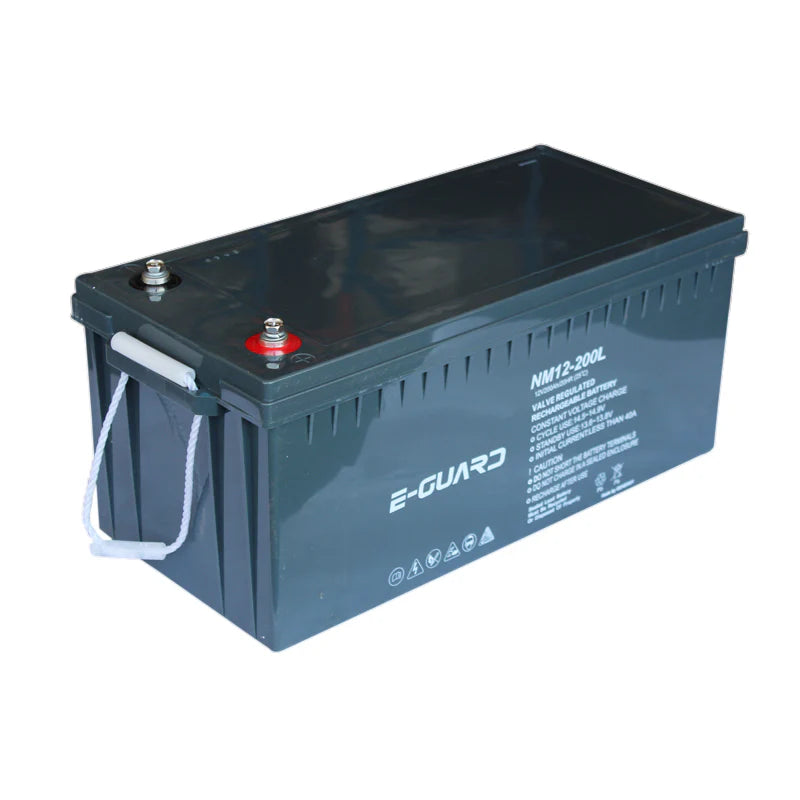

E-GUARD 12V 200Ah GEL Deep Cycle Solar Battery – Long Life Energy Storage
The E-GUARD NML Long Life Battery is a premium deep cycle GEL battery designed specifically for solar, backup power, and alternative energy storage applications. Featuring advanced GEL technology with an AGM separator (commonly known as Lead Crystal technology), this battery delivers exceptional durability, reliable power output, and extended service life.
Engineered for demanding renewable energy systems, the E-GUARD 12V 200Ah battery offers outstanding deep cycle performance, low self-discharge, and excellent resistance to harsh operating conditions. With a design floating life of up to 15 years at 20°C, it is ideal for residential, commercial, and industrial energy storage installations.
Key Features
-
Advanced GEL + AGM Separator (Lead Crystal) Technology
-
Long Design Life – Up to 15 Years
-
High Capacity Deep Cycle Performance
-
Excellent for Solar & Renewable Energy Systems
-
Low Internal Resistance for Efficient Power Delivery
-
Low Self-Discharge Rate
-
Maintenance-Free Design
-
Reliable Performance in Wide Temperature Conditions
Typical Applications
-
Solar Energy Systems
-
Wind Energy Systems
-
UPS & EPS Backup Systems
-
Power Utility Storage
-
Off-Grid Energy Systems
-
Inverter Backup Systems
Technical Specifications
-
Nominal Voltage: 12V
-
Capacity:
-
232.4Ah @ 20HR
-
226.6Ah @ 10HR
-
-
Internal Resistance: 3.5mΩ
-
Max Discharge Current: 2200A (5 Seconds)
-
Recommended Charge Voltage:
-
Cycle Use: 14.7V – 14.9V
-
Standby Use: 13.6V – 13.8V
-
-
Maximum Charge Current: 58A
-
Operating Temperature:
-
Discharge: -15°C to 50°C
-
Charge: 0°C to 50°C
-
Storage: -15°C to 50°C
-
-
Recommended Operating Temperature: 15°C – 25°C
-
Self-Discharge: Approximately 3% per month @ 20°C
Dimensions & Weight
-
Length: 522mm
-
Width: 269mm
-
Height: 220mm
-
Total Height: 225mm
-
Weight: 65.5kg
Installation Notice
All solar products, power systems, water heating, gas products, and associated components must be installed by qualified professionals in accordance with local wiring regulations and standards.
