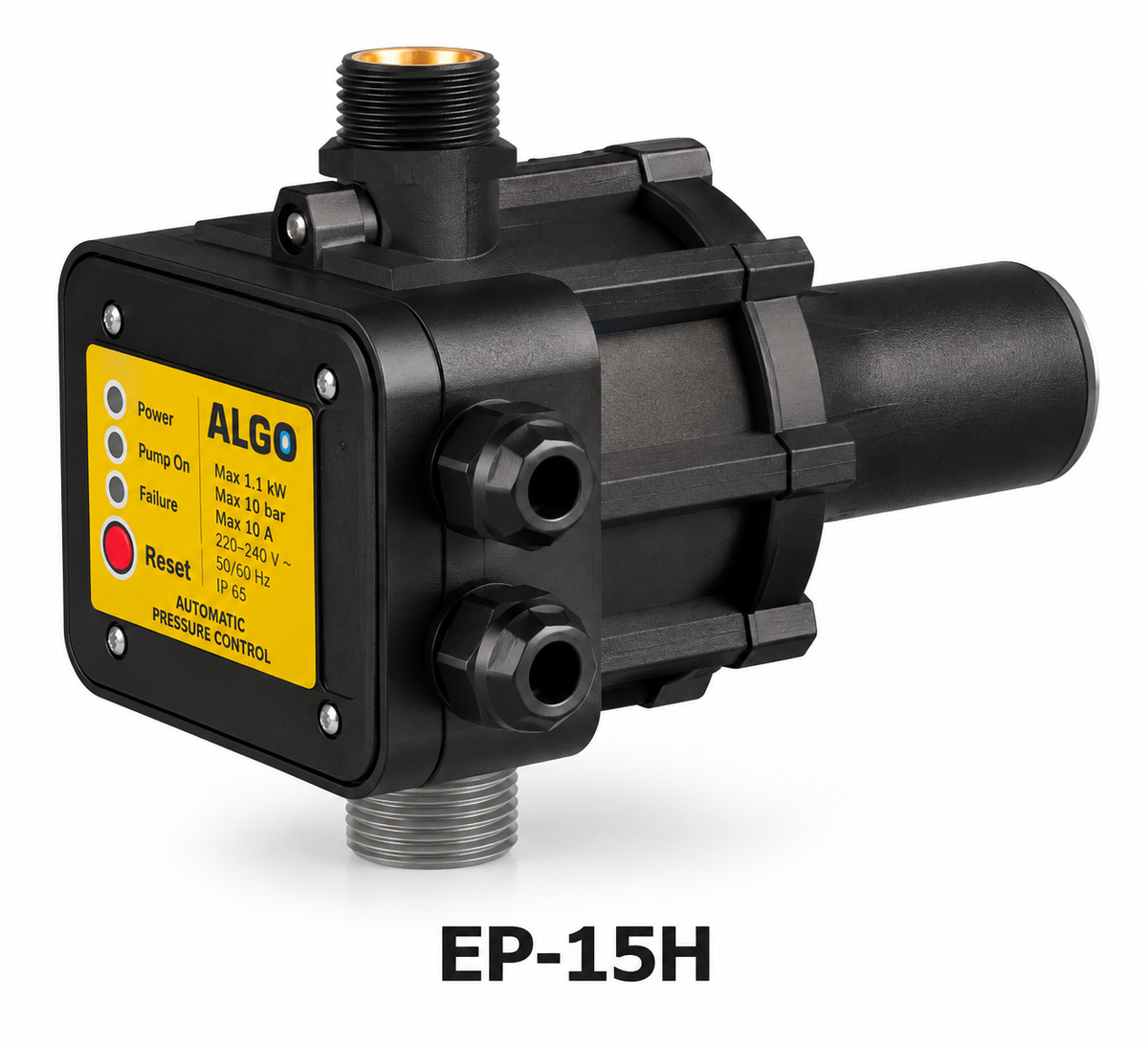

ALGO EP-15H – Automatic Electronic Pump Controller
The ALGO EP-15H is an automatic electronic pump controller designed to provide convenient and reliable control of compatible water pumps. It automatically manages pump operation according to water demand, helping create a practical automatic water supply or pressure boosting system.
The EP-15H features a maximum current rating of 10A, a 1.5 bar starting pressure, and 1" × 1" connections. It also incorporates an inbuilt non-return valve (NRV) and dry-run protection, providing additional protection for the connected pump during operation.
Key Features
-
Automatic electronic pump controller
-
Automatically controls pump start and stop operation
-
Maximum current rating of 10A
-
1.5 bar starting pressure
-
Maximum working pressure of 10 bar
-
1" × 1" connections
-
Inbuilt non-return valve (NRV)
-
Built-in dry-run protection
-
Maximum working temperature of 50°C
-
Designed for automatic water pump control
-
Suitable for domestic water supply systems
-
Ideal for pressure boosting and clean-water applications
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Model | EP-15H |
| Product Type | Automatic Electronic Pump Controller |
| Maximum Current | 10 A |
| Starting Pressure | 1.5 Bar |
| Maximum Working Pressure | 10 Bar |
| Connection Size | 1" × 1" |
| Maximum Working Temperature | 50°C |
| Non-Return Valve | Inbuilt |
| Dry-Run Protection | Yes |
Automatic Pump Control
The EP-15H automatically manages the connected pump according to water demand. When water is required, the controller activates the pump and automatically stops it when demand ends, helping provide convenient operation without requiring manual switching.
Its dry-run protection helps protect the connected pump when an adequate water supply is unavailable, while the inbuilt NRV helps prevent reverse water flow through the system.
Applications
Ideal for:
-
Domestic water supply systems
-
Residential pressure boosting
-
Tank-to-house water supply
-
Automatic water pump systems
-
Garden water supply
-
Clean-water transfer systems
-
General pump control applications
The ALGO EP-15H provides a practical automatic pump-control solution combining 10A capacity, 1.5 bar starting pressure, an inbuilt NRV and dry-run protection for reliable everyday water pump operation.
