Geyser Gecko PV Solar Water Heating System

The Geyser Gecko PV Solar Water Heating System is the perfect way to transform your traditional electric geyser into an energy-efficient solar water heating solution. Designed to maximise the use of solar energy, the system helps reduce electricity consumption while providing reliable hot water using your existing geyser installation.

The Geyser Gecko intelligently directs power from solar panels directly to your geyser element, eliminating the need for batteries and allowing you to make the most of available solar energy. The system can operate in either PV-only mode, where solar energy is used exclusively to heat the geyser, or in Hybrid Mode, where grid power supplements solar energy when required.

Using the Geyser Gecko mobile app, users can remotely monitor, configure and manage their water heating system from anywhere with an internet connection.

Key Features

• Easy Installation – Compatible with existing electric geysers and does not require a specialised geyser element.

• Energy Savings – Reduce geyser electricity consumption by more than 50%.

• Powerful Performance – Supports geyser elements up to 4kW.

• PV-Only Operation – Operates directly from solar PV power.

• Hybrid Functionality – Combines solar PV and grid power when additional heating is required.

• Accurate Monitoring – Includes a digital temperature probe for precise temperature measurement.

• Remote Management – Monitor and control the system through the Geyser Gecko mobile app.

• Smart Upgrade – Converts an existing geyser into a solar-assisted water heating solution.

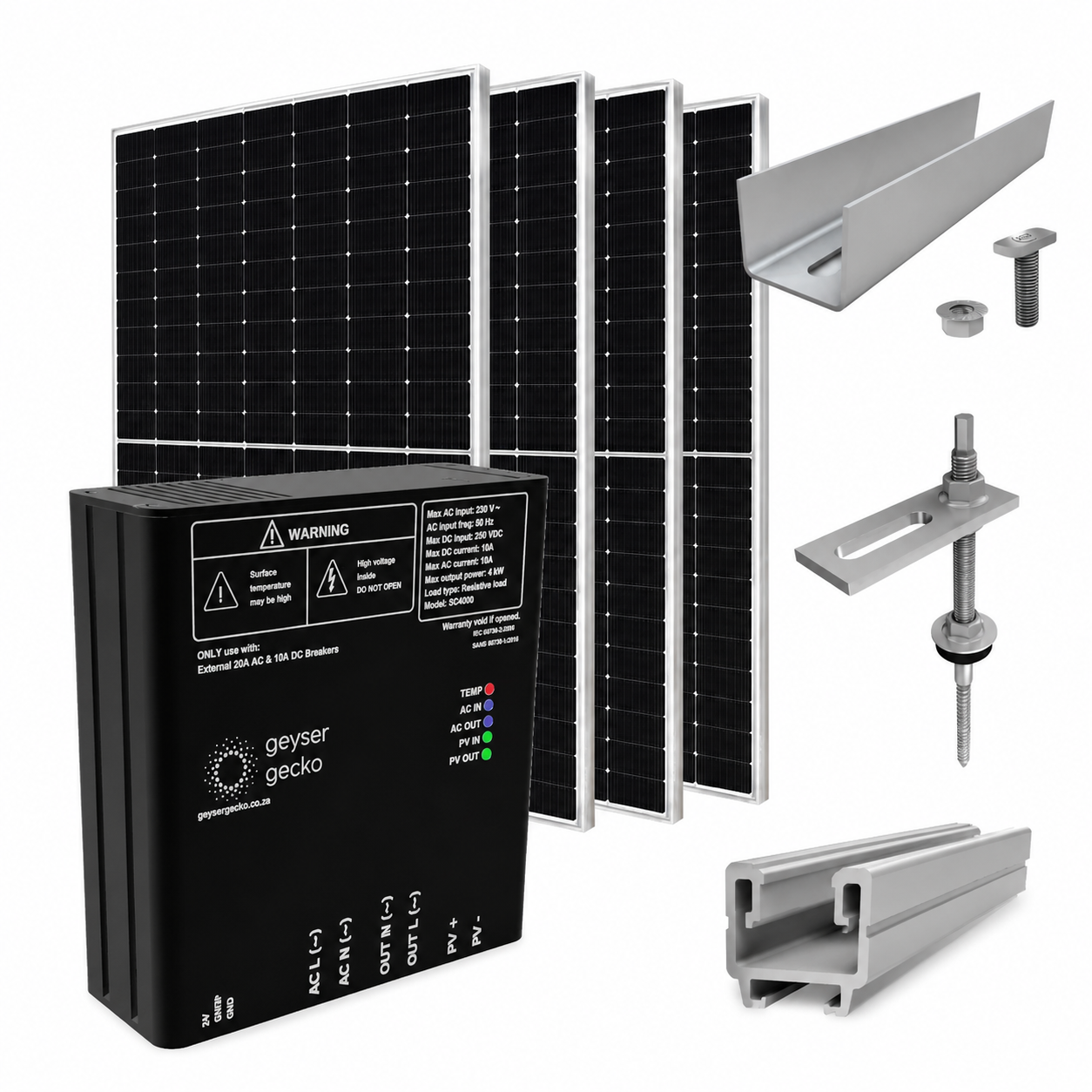

System Includes

Geyser Gecko PV Geyser Controller Kit

The Geyser Gecko controller directs power from the solar panels directly to the geyser element, enabling efficient solar water heating.

Kit Contents:

• Geyser Gecko Controller

• Digital Temperature Sensor

• 20A AC 2-Pole Breaker

• DC Circuit Breaker

• 40A Change-Over Switch

• Safety & Branding Stickers

• User Manual

Solar PV Panels

• 4 × 460W N-Type Double Glass Bifacial Solar Panels

• Total Installed PV Capacity: 1840W

• Factory-fitted Staubli MC4-EVO2 connectors

Roof Mounting System

A roof mounting system is included with each kit and is supplied according to the selected product variant.

Available mounting options:

• IBR Roof Kit – Designed for IBR metal roofing profiles.
• Corrugated Roof Kit – Designed for traditional corrugated metal roofing.
• Tile Roof Kit – Designed for tiled residential roofs using roof hooks and mounting rails.
• Klip-Lok / Standing Seam Roof Kit – Designed for concealed-fix metal roofs using seam clamps with no roof penetrations.

The mounting hardware supplied will vary depending on the roof type selected.

Technical Specifications

Installation Requirements

Included

• Geyser Gecko PV Geyser Controller Kit

• 4 × 460W Solar PV Panels

• Roof Mounting System (selected roof type)

Not Included

The following installation materials are supplied by the installer and are dependent on the installation location:

• Distribution Board (recommended as close as possible to the main DB board and not in the roof space)

• 4mm² PV Cable (Black)

• 4mm² PV Cable (Red)

• Earth Cable

• Lagging

• Cable Ties

• Conduit and Fittings

• Sprag

• MC4 Male/Female Connectors (if required)

• CAT5E / CAT6 FTP Shielded Cable for temperature probe extensions

• Ventilation Plug

Connectivity Requirements

Reliable Wi-Fi coverage is required at the installation location for remote monitoring and control via the Geyser Gecko mobile application.

Important Notice

All solar products, water heating systems and associated electrical components must be installed by appropriately qualified personnel.

All installations must comply with applicable electrical regulations, wiring standards and local codes of practice.

Acuiri and Geyser Gecko shall not be held liable for any malfunction, damage or performance issues resulting from incorrect installation, non-compliant wiring practices or failure to follow the manufacturer's installation instructions.
