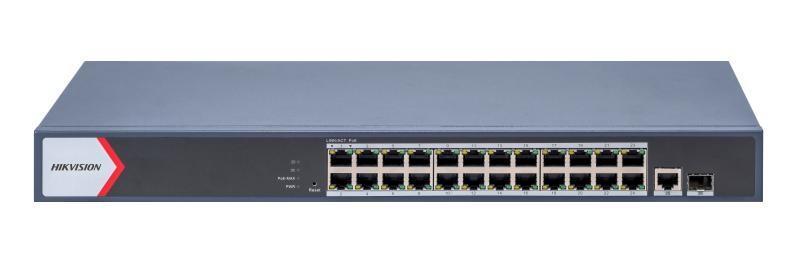

24-Port Gigabit Smart PoE Switch with 370W PoE Budget
The 24-Port Gigabit Smart PoE Switch is a high-performance managed network switch designed for professional IP surveillance, enterprise networking, and commercial PoE deployments. Featuring 24 Gigabit PoE ports, an additional Gigabit RJ45 uplink, and a Gigabit SFP fibre uplink, it provides reliable high-speed connectivity for IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.
With a 370W total PoE power budget, support for IEEE 802.3af/at, and advanced Layer 2 management features including VLANs, QoS, STP/RSTP, DHCP Snooping, and Link Aggregation, this switch is ideal for demanding network environments. Built-in 6kV surge protection and intelligent PoE management help ensure stable, reliable operation.
Key Features
-
24 × Gigabit PoE ports
-
1 × Gigabit RJ45 uplink port
-
1 × Gigabit SFP fibre uplink port
-
370W total PoE power budget
-
Supports IEEE 802.3af and IEEE 802.3at
-
Maximum 30W PoE output per port
-
Long-range PoE mode up to 300 metres
-
PoE Watchdog automatically restarts unresponsive cameras
-
Supports 802.1Q VLAN, QoS, STP/RSTP, and DHCP Snooping
-
Cable diagnostics for cable length, open circuits, and short circuits
-
6kV surge protection
-
Rack-mountable metal enclosure
Technical Specifications
Network Ports
-
24 × 10/100/1000 Mbps PoE Ports
-
1 × Gigabit RJ45 Uplink
-
1 × Gigabit SFP Fibre Port
PoE
-
PoE Standards:
-
IEEE 802.3af
-
IEEE 802.3at
-
-
PoE Ports:
-
Ports 1–24
-
-
Maximum PoE per Port:
-
30W
-
-
Total PoE Budget:
-
370W
-
Network Performance
-
Switching Capacity:
-
56 Gbps
-
-
Packet Forwarding Rate:
-
41.66 Mpps
-
-
MAC Address Table:
-
8K
-
-
Internal Cache:
-
4.1 Mbits
-
Smart Features
-
IEEE 802.1Q VLAN
-
VLAN ID Range:
-
1–4094
-
-
Supports up to 32 VLANs
-
Trunk and Access Port Modes
-
Static Link Aggregation
-
Up to 8 Aggregation Groups
-
QoS with SP and WRR Scheduling
-
STP (802.1D)
-
RSTP (802.1w)
-
Port Isolation
-
DHCP Snooping
-
LLDP Device Discovery
-
Port Mirroring
-
Cable Diagnostics
-
Web-based Management
-
DHCP Client
-
Remote Management
-
Hik-Central Pro Compatible
-
Hik-Partner Pro Compatible
Long-Range Mode
-
Supports transmission distances of up to 300 metres on Ports 1–24*
*Actual performance depends on cable quality and connected device specifications.
Physical Specifications
-
Enclosure:
-
Metal
-
-
Installation:
-
19-inch Rack Mount
-
-
Dimensions:
-
440 × 220.8 × 44 mm
-
-
Weight:
-
3.1 kg
-
Environmental
-
Operating Temperature:
-
0°C to 45°C
-
-
Storage Temperature:
-
-40°C to 85°C
-
-
Operating Humidity:
-
5%–95% (Non-condensing)
-
Power
-
Input Voltage:
-
100–240V AC, 50/60Hz
-
-
Maximum Power Consumption:
-
400W
-
-
Idle Power Consumption:
-
30W
-
-
Surge Protection:
-
6kV
-
What's Included
-
1 × 24-Port Gigabit Smart PoE Switch
-
Rack mounting brackets
-
Power cable
-
Quick installation guide
Ideal Applications
Perfect for:
-
IP CCTV systems
-
Commercial security installations
-
Office networks
-
Enterprise LANs
-
Schools and campuses
-
Hotels
-
Warehouses
-
Retail stores
-
Wireless access point deployments
-
VoIP phone systems
Benefits
-
Powers up to 24 PoE devices from a single switch
-
High 370W PoE budget supports demanding surveillance systems
-
Gigabit performance ensures fast and reliable data transmission
-
Fibre uplink provides high-speed backbone connectivity
-
Long-range PoE extends installation flexibility up to 300m
-
Intelligent PoE Watchdog automatically recovers offline cameras
-
Advanced Layer 2 management improves network security and efficiency
-
Built-in surge protection safeguards connected equipment
-
Rack-mounted design is ideal for professional installations
Professional Installation Recommended
For optimum performance, install the switch in a suitable network cabinet with adequate ventilation. Configure VLANs, QoS, PoE settings, and security features according to your network requirements. Professional installation is recommended for enterprise and surveillance deployments.
