ALGO Master Pack 1 – 3" Submersible Pump, Motor & Accessories Kit
The ALGO 3" Master Pack 1 is a complete submersible pumping package designed to provide the essential components required for a borehole pumping installation in one convenient solution. Combining the pump, motor, control equipment, cable and installation accessories, this package offers a practical solution for residential and general water supply applications.
Powered by a 0.37 kW (0.5 HP) motor, the Master Pack 1 operates on 230V single-phase, 50Hz power and features a compact 3" design suitable for borehole installations where space is limited.
Key Features
-
Complete 3" submersible pump and motor package
-
0.37 kW / 0.5 HP power rating
-
Single-phase 230V, 50Hz operation
-
2900 rpm operating speed
-
15-stage pump configuration
-
Maximum head of approximately 64 m
-
Maximum flow of up to 2.7 m³/h
-
1¼" outlet connection
-
Supplied with control box
-
Includes cable, safety rope, base plate and adaptors
-
Convenient all-in-one borehole pumping solution

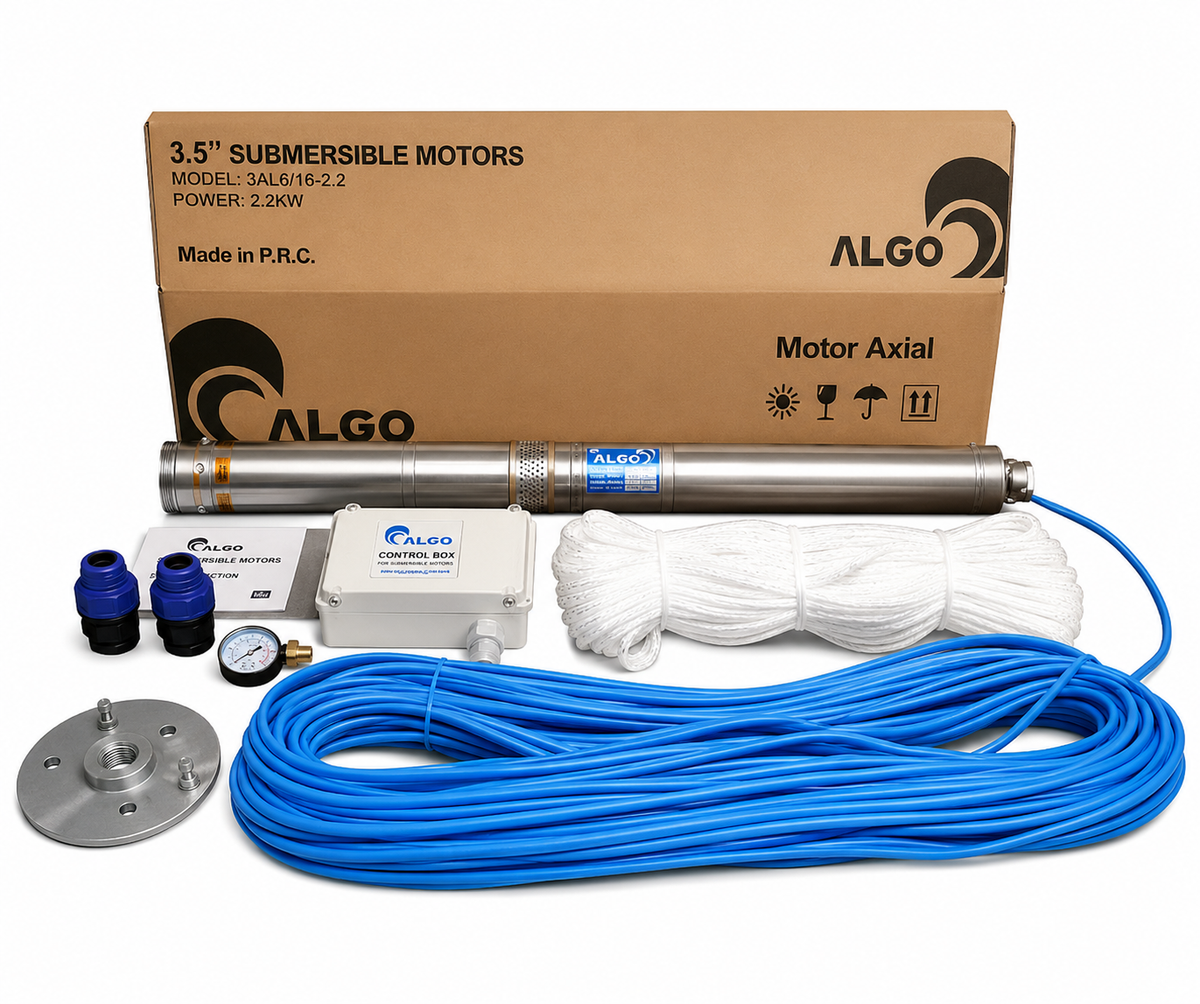

What's Included
-
3" Submersible Pump
-
Submersible Motor
-
Control Box
-
40 m Submersible Cable
-
50 m Safety Rope
-
Aluminium Cast Base Plate
-
2 × Adaptors
Technical Specifications
| Specification | Details |
|---|---|
| Model | Master Pack 1 |
| Pump Model | 3MP1 |
| Nominal Diameter | 3" |
| Stages | 15 |
| Power | 0.37 kW / 0.5 HP |
| Voltage | 230V |
| Phase | Single Phase |
| Frequency | 50Hz |
| Speed | 2900 rpm |
| Outlet Size | 1¼" |
| Maximum Head | 64 m |
| Maximum Flow | 2.7 m³/h |
| Cable Length | 40 m |
| Safety Rope Length | 50 m |
Performance
| Flow Rate | Head |
|---|---|
| 0 m³/h | 64 m |
| 0.3 m³/h | 63 m |
| 0.6 m³/h | 62 m |
| 0.9 m³/h | 61 m |
| 1.2 m³/h | 58 m |
| 1.5 m³/h | 54 m |
| 1.8 m³/h | 49 m |
| 2.1 m³/h | 43 m |
| 2.4 m³/h | 36 m |
| 2.7 m³/h | 27 m |
Applications
Ideal for:
-
Residential borehole water supply
-
Household water systems
-
Garden and irrigation water supply
-
Water transfer applications
-
General-purpose borehole pumping
The ALGO 3" Master Pack 1 provides a convenient complete package for users looking for a compact borehole pumping solution with the key components and accessories required for installation.
