ALGO Master Pack 2 – 3" Submersible Pump, Motor & Accessories Kit
The ALGO 3" Master Pack 2 is a complete submersible borehole pumping package that combines the pump, motor, control equipment and essential installation accessories into one convenient solution. Designed for dependable water supply applications, the compact 3" configuration is well suited to residential borehole installations.
Powered by a 0.55 kW motor, the Master Pack 2 operates on 230V single-phase, 50Hz power and features a 21-stage pump capable of delivering a maximum head of approximately 89 metres.
Key Features
-
Complete 3" submersible pump and motor package
-
0.55 kW power rating
-
Single-phase 230V, 50Hz operation
-
2900 rpm operating speed
-
21-stage pump configuration
-
Maximum head of approximately 89 m
-
Maximum flow of up to 2.7 m³/h
-
1¼" outlet connection
-
Supplied with control box
-
Includes cable, safety rope, base plate and adaptors
-
Convenient all-in-one borehole pumping solution

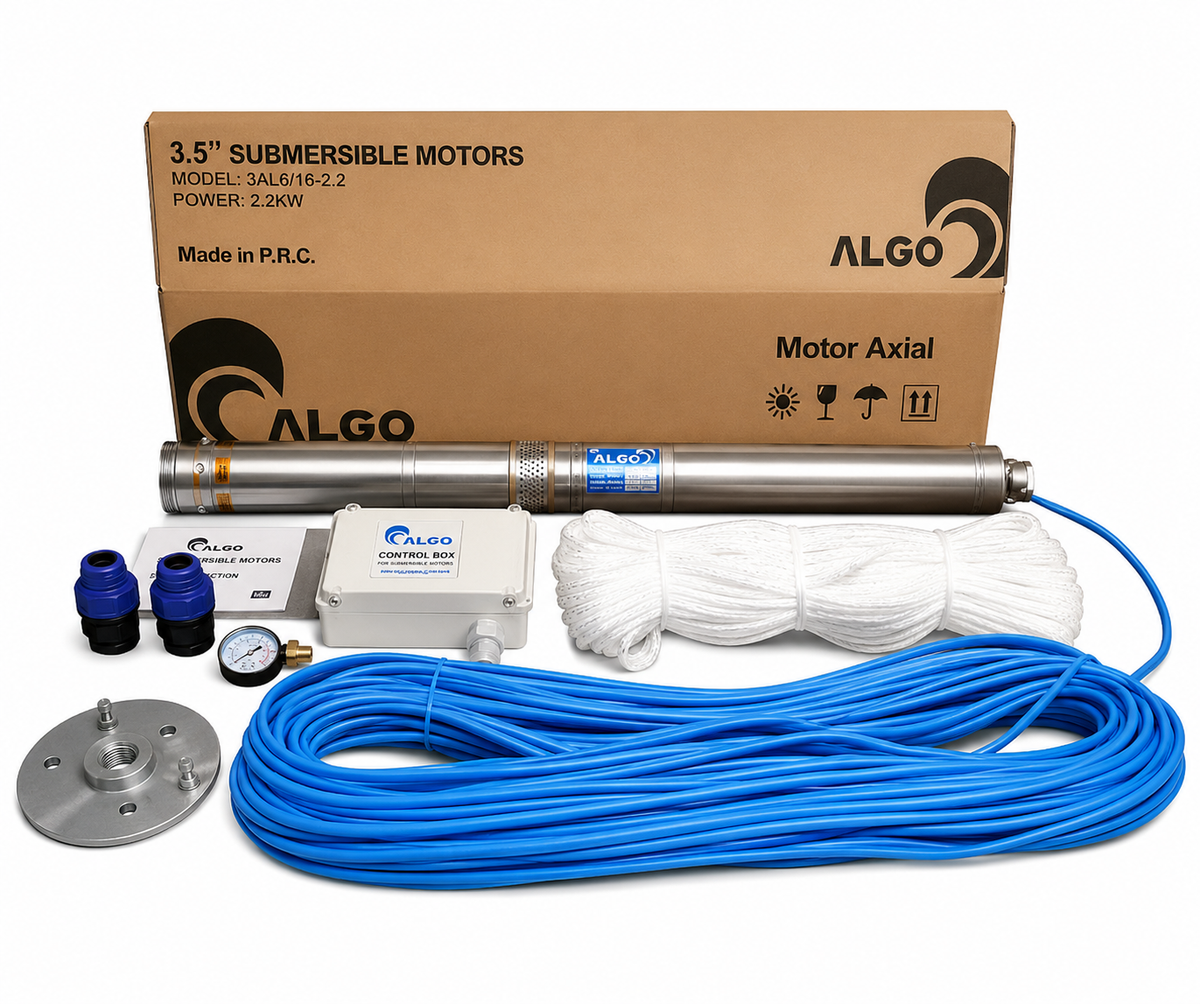

What's Included
-
3" Submersible Pump
-
Submersible Motor
-
Control Box
-
80 m Submersible Cable
-
90 m Safety Rope
-
Aluminium Cast Base Plate
-
2 × Adaptors
Technical Specifications
| Specification | Details |
|---|---|
| Model | Master Pack 2 |
| Pump Model | 3MP2 |
| Nominal Diameter | 3" |
| Stages | 21 |
| Power | 0.55 kW |
| Voltage | 230V |
| Phase | Single Phase |
| Frequency | 50Hz |
| Speed | 2900 rpm |
| Outlet Size | 1¼" |
| Maximum Head | 89 m |
| Maximum Flow | 2.7 m³/h |
| Cable Length | 80 m |
| Safety Rope Length | 90 m |
Performance
| Flow Rate | Head |
|---|---|
| 0 m³/h | 89 m |
| 0.3 m³/h | 89 m |
| 0.6 m³/h | 87 m |
| 0.9 m³/h | 85 m |
| 1.2 m³/h | 81 m |
| 1.5 m³/h | 76 m |
| 1.8 m³/h | 68 m |
| 2.1 m³/h | 60 m |
| 2.4 m³/h | 51 m |
| 2.7 m³/h | 38 m |
Applications
Ideal for:
-
Residential borehole water supply
-
Household water systems
-
Garden and irrigation water supply
-
Water transfer applications
-
General-purpose borehole pumping
The ALGO 3" Master Pack 2 provides a practical complete pumping solution for applications requiring greater head performance than the Master Pack 1, while retaining the compact 3" borehole configuration.
