ALGO Master Pack 2 – 4" Submersible Pump, Motor & Accessories Kit
The ALGO 4" Master Pack 2 is a complete submersible borehole pumping package designed to provide a convenient and reliable water supply solution. Combining the pump, motor, control equipment, cable and essential installation accessories, this package provides the key components required for a practical borehole installation.
Powered by a 0.55 kW motor, the Master Pack 2 operates on 230V single-phase, 50Hz power and features a 12-stage pump capable of delivering a maximum head of approximately 87 metres.
Key Features
-
Complete 4" submersible pump and motor package
-
0.55 kW power rating
-
Single-phase 230V, 50Hz operation
-
2900 rpm operating speed
-
12-stage pump configuration
-
Maximum head of approximately 87 m
-
Maximum flow of up to 3.3 m³/h
-
1¼" outlet connection
-
Supplied with control box
-
Includes cable, safety rope, base plate and adaptors
-
Convenient all-in-one borehole pumping solution

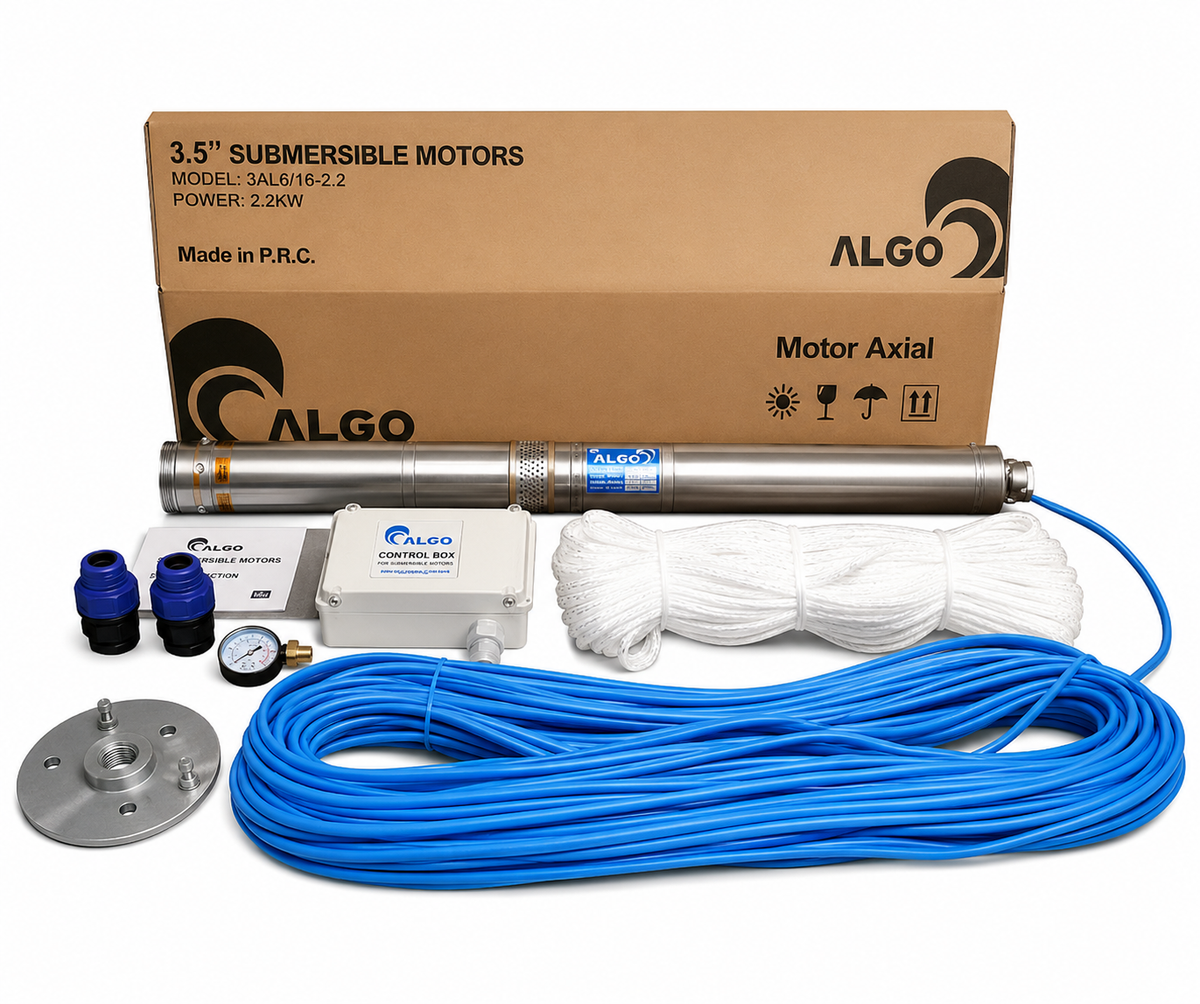

What's Included
-
4" Submersible Pump
-
Submersible Motor
-
Control Box
-
70 m Submersible Cable
-
90 m Safety Rope
-
Aluminium Cast Base Plate
-
2 × Adaptors
Technical Specifications
| Specification | Details |
|---|---|
| Model | Master Pack 2 |
| Pump Model | 4MP2 |
| Pump Configuration | 2/12 |
| Nominal Diameter | 4" |
| Stages | 12 |
| Power | 0.55 kW |
| Voltage | 230V |
| Phase | Single Phase |
| Frequency | 50Hz |
| Speed | 2900 rpm |
| Outlet Size | 1¼" |
| Maximum Head | 87 m |
| Maximum Flow | 3.3 m³/h |
| Cable Length | 70 m |
| Safety Rope Length | 90 m |
Performance
| Flow Rate | Head |
|---|---|
| 0 m³/h | 87 m |
| 0.3 m³/h | 87 m |
| 0.6 m³/h | 86 m |
| 0.9 m³/h | 85 m |
| 1.2 m³/h | 82 m |
| 1.5 m³/h | 78 m |
| 1.8 m³/h | 73 m |
| 2.1 m³/h | 65 m |
| 2.4 m³/h | 57 m |
| 2.7 m³/h | 46 m |
| 3.0 m³/h | 35 m |
| 3.3 m³/h | 22 m |
Applications
Ideal for:
-
Residential borehole water supply
-
Household water systems
-
Garden and irrigation water supply
-
Water transfer applications
-
General-purpose borehole pumping
The ALGO 4" Master Pack 2 offers a complete and convenient borehole pumping solution with increased head performance, making it suitable for installations requiring reliable water delivery from greater depths.
