ALGO Master Pack 3 – 4" Submersible Pump, Motor & Accessories Kit
The ALGO 4" Master Pack 3 is a complete submersible borehole pumping package designed to provide reliable water delivery for residential and general borehole applications. The package combines the pump, motor, control equipment, cable and essential installation accessories into one convenient solution.
Powered by a 0.75 kW (1 HP) motor, the Master Pack 3 operates on 230V single-phase, 50Hz power and features a 15-stage pump capable of delivering a maximum head of approximately 116 metres.
Key Features
-
Complete 4" submersible pump and motor package
-
0.75 kW / 1 HP power rating
-
Single-phase 230V, 50Hz operation
-
2900 rpm operating speed
-
15-stage pump configuration
-
Maximum head of approximately 116 m
-
1¼" outlet connection
-
Supplied with control box
-
Includes cable, safety rope, base plate and adaptors
-
Convenient all-in-one borehole pumping solution

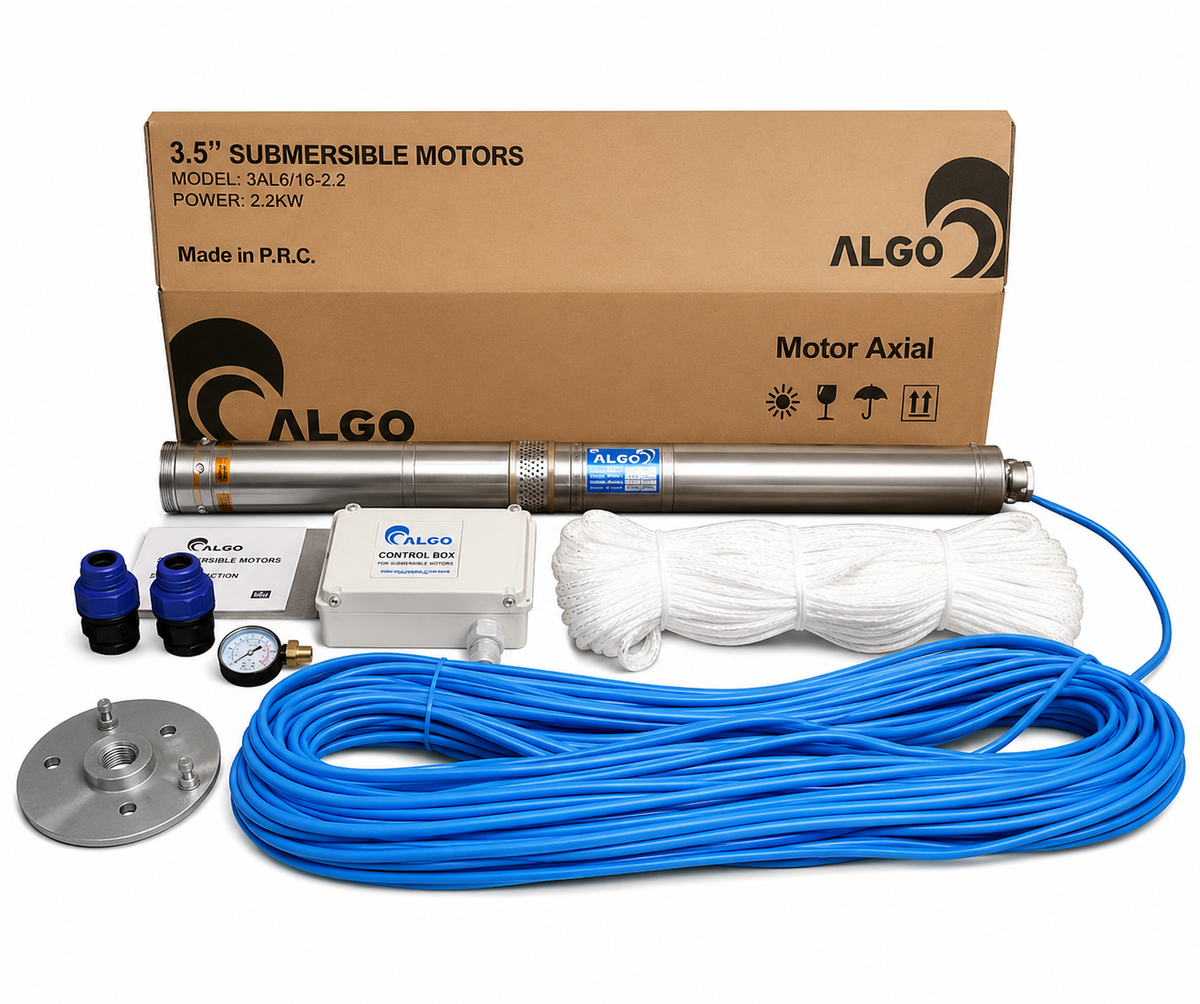

What's Included
-
4" Submersible Pump
-
Submersible Motor
-
Control Box
-
80 m Submersible Cable
-
100 m Safety Rope
-
Aluminium Cast Base Plate
-
2 × Adaptors
Technical Specifications
| Specification | Details |
|---|---|
| Model | Master Pack 3 |
| Pump Model | 4MP3 |
| Pump Configuration | 2/15 |
| Nominal Diameter | 4" |
| Stages | 15 |
| Power | 0.75 kW / 1 HP |
| Voltage | 230V |
| Phase | Single Phase |
| Frequency | 50Hz |
| Speed | 2900 rpm |
| Outlet Size | 1¼" |
| Maximum Head | 116 m |
| Cable Length | 80 m |
| Safety Rope Length | 100 m |
Performance
| Flow Rate | Head |
|---|---|
| 0 m³/h | 116 m |
| 0.3 m³/h | 116 m |
| 0.6 m³/h | 115 m |
| 0.9 m³/h | 113 m |
| 1.2 m³/h | 109 m |
| 1.5 m³/h | 104 m |
| 1.8 m³/h | 97 m |
| 2.1 m³/h | 87 m |
| 2.4 m³/h | 76 m |
| 2.7 m³/h | 62 m |
| 3.0 m³/h | 46 m |
| 3.3 m³/h | 29 m |
Applications
Ideal for:
-
Residential borehole water supply
-
Household water systems
-
Garden and irrigation water supply
-
Water transfer applications
-
Deeper borehole installations
-
General-purpose borehole pumping
The ALGO 4" Master Pack 3 provides strong head performance in a convenient complete package, making it a practical option for borehole installations requiring dependable water delivery from greater depths.
