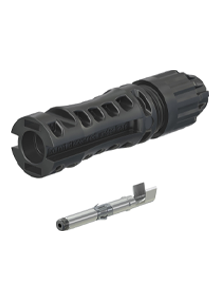

MC4-EVO2A 1500V DC Male Connector (32.0325) – 10mm² Single
The MC4-EVO2A 1500V DC Male Connector (32.0325) is a premium photovoltaic (PV) cable connector from Stäubli, designed for secure, high-performance DC connections in modern solar power systems.
Engineered for 10mm² solar cable and approved for 1500V DC applications, this connector features Stäubli's industry-leading MULTILAM® contact technology, delivering exceptional conductivity, low contact resistance, and long-term reliability. Its robust IP68-rated construction ensures dependable performance in harsh outdoor environments, making it ideal for residential, commercial, and utility-scale solar installations.
Key Features
-
Genuine Stäubli MC4-EVO2A male connector
-
Designed for 10mm² solar cable
-
Rated for systems up to 1500V DC (IEC)
-
MULTILAM® contact technology for superior electrical performance
-
Internationally certified (IEC, UL, JET and cTÜVus)
-
UV-resistant construction
-
Resistant to ammonia and salt mist corrosion
-
IP68-rated weather protection
-
Long service life in demanding outdoor environments
-
Includes insulating housing with maroon seal
Technical Specifications
Connector
-
Product Type: PV Cable Connector
-
Connector Type: MC4-EVO2A Male Cable Coupler
-
Cable Size: 10mm²
-
Supplier Code: 32.0325P0100
-
Maximum System Voltage: 1500V DC (IEC)
-
Protection Rating: IP68
-
Contact Technology: MULTILAM®
-
Product Weight: 0.02kg
What's Included
-
1 × MC4-EVO2A 1500V DC Male Connector (10mm²)
-
Integrated insulating housing
-
Maroon sealing insert
Compatibility
Compatible with:
-
MC4-EVO2 10mm² Female Connector (MC4-EVO2-10-FEM)
-
10mm² photovoltaic cable
-
Residential, commercial, and utility-scale solar PV systems
Important: This connector requires the dedicated MC4-EVO2 crimping tool. Standard MC4 crimping tools are not compatible and should not be used.
Ideal Applications
The MC4-EVO2A Male Connector is ideal for:
-
Solar PV installations
-
Residential solar systems
-
Commercial solar projects
-
Utility-scale photovoltaic systems
-
Solar cable terminations
-
Solar system maintenance and cable replacement
Professional Installation Recommended
This product should be installed by a qualified electrician or accredited solar installer. Use only the approved MC4-EVO2 crimping tool to ensure a safe, compliant, and reliable electrical connection. All installations should comply with applicable electrical regulations and photovoltaic installation standards.
