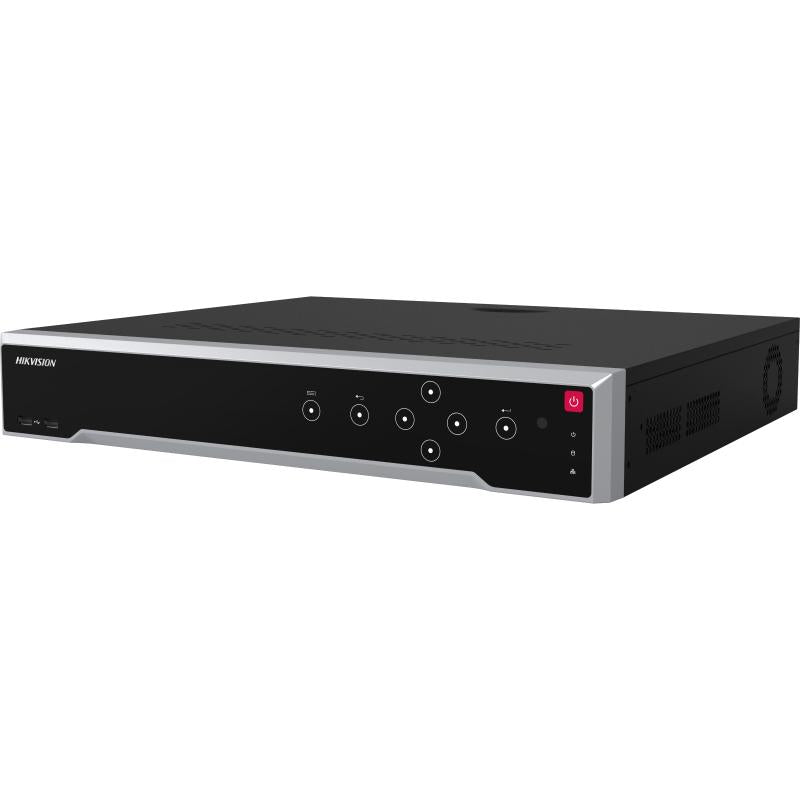

Hikvision DS-7764NI-M4 64-Channel 8K Network Video Recorder (NVR)
The Hikvision DS-7764NI-M4 is a professional-grade 64-channel Network Video Recorder (NVR) designed for large-scale IP surveillance systems. Supporting up to 64 IP cameras, 8K HDMI output, and H.265+ video compression, it delivers exceptional recording performance while reducing storage and bandwidth requirements.
With 400 Mbps incoming and outgoing bandwidth, support for cameras up to 32MP, and four SATA bays accommodating up to 64TB of total storage (4 × 16TB), the DS-7764NI-M4 is ideal for enterprise, commercial, industrial, and high-security applications.
Key Features
-
Supports up to 64 IP cameras
-
Compatible with cameras up to 32MP resolution
-
H.265+/H.265/H.264+/H.264 video compression
-
8K HDMI output for ultra-high-definition display
-
Dual HDMI and VGA video outputs
-
400 Mbps incoming and 400 Mbps outgoing bandwidth
-
Supports up to 16TB per hard drive
-
Four SATA interfaces for up to 64TB total storage
-
Simultaneous playback of up to 16 channels
-
Connect up to 8 Hikvision IP speakers
-
ONVIF-compatible for integration with third-party cameras
-
Rack-mountable 1.5U chassis
Technical Specifications
Video & Recording
-
Channels: 64 IP Cameras
-
Maximum Camera Resolution: 32MP
-
Video Compression:
-
H.265+
-
H.265
-
H.264+
-
H.264
-
-
Recording Resolution:
-
Up to 32MP
-
-
Synchronous Playback:
-
16 Channels
-
Decoding Capacity
-
2 × 32MP @ 30fps
-
3 × 24MP @ 30fps
-
4 × 16MP @ 30fps
-
6 × 12MP @ 30fps
-
10 × 8MP @ 30fps
-
20 × 4MP @ 30fps
-
40 × 1080p @ 30fps
Bandwidth
-
Incoming Bandwidth: 400 Mbps
-
Outgoing Bandwidth: 400 Mbps
Video Outputs
-
HDMI 1
-
Up to 8K (7680 × 4320) @ 30Hz
-
4K @ 60Hz
-
-
HDMI 2
-
Up to 4K @ 60Hz
-
-
VGA Output
-
Up to 1920 × 1080 @ 60Hz
-
-
Video Modes:
-
HDMI1 + VGA simultaneous output
-
HDMI1 and HDMI2 independent output
-
Audio
-
1 × RCA Audio Output
-
1 × RCA Two-Way Audio
-
Audio Compression:
-
G.711 u-law
-
G.711 A-law
-
G.722
-
G.726
-
AAC
-
MP2L2
-
Storage
-
4 × SATA Interfaces
-
Maximum Drive Capacity:
-
16TB per HDD
-
-
Total Maximum Capacity:
-
64TB
-
-
1 × eSATA Interface
Network
-
2 × Gigabit Ethernet Ports (RJ-45)
-
Remote Connections:
-
Up to 128 Users
-
-
Supported Protocols:
-
TCP/IP
-
DHCP
-
IPv4 / IPv6
-
DNS
-
DDNS
-
NTP
-
RTSP
-
SMTP
-
SNMP
-
HTTPS
-
ONVIF
-
UPnP
-
SADP
-
NFS
-
iSCSI
-
ISUP
-
Interfaces
-
Front:
-
2 × USB 2.0
-
-
Rear:
-
1 × USB 3.0
-
-
2 × RS-485
-
1 × RS-232
-
Alarm Inputs:
-
16
-
-
Alarm Outputs:
-
9
-
-
Controllable 12V Alarm Output
Power
-
Power Supply:
-
100–240V AC
-
-
Power Consumption:
-
≤15W (without HDDs)
-
Environmental
-
Operating Temperature:
-
-10°C to 55°C
-
-
Operating Humidity:
-
10%–90%
-
Physical
-
Chassis:
-
19-inch Rack Mount (1.5U)
-
-
Dimensions:
-
445 × 400 × 75 mm
-
-
Weight:
-
≤5kg (without hard drives)
-
What's Included
-
1 × Hikvision DS-7764NI-M4 64-Channel NVR
-
Power cable
-
Rack mounting accessories
-
Quick start guide
Hard drives sold separately.
Ideal Applications
Perfect for:
-
Enterprise security systems
-
Shopping centres
-
Industrial facilities
-
Warehouses
-
Schools and universities
-
Hospitals
-
Hotels
-
Office parks
-
Government buildings
-
Large commercial premises
Benefits
-
Supports up to 64 high-resolution IP cameras
-
Records cameras up to 32MP for exceptional image quality
-
8K HDMI output delivers ultra-high-definition live view and playback
-
H.265+ compression significantly reduces storage requirements
-
400 Mbps throughput supports demanding surveillance installations
-
Four HDD bays provide up to 64TB of storage capacity
-
Dual Gigabit network ports improve network performance
-
Supports intelligent surveillance systems and Hikvision IP speakers
-
Rack-mounted design for professional server rooms and security installations
Professional Installation Recommended
The Hikvision DS-7764NI-M4 is designed for professional surveillance systems. Installation, network configuration, storage setup, and camera integration should be carried out by a qualified CCTV technician to ensure optimal performance and reliable operation.
