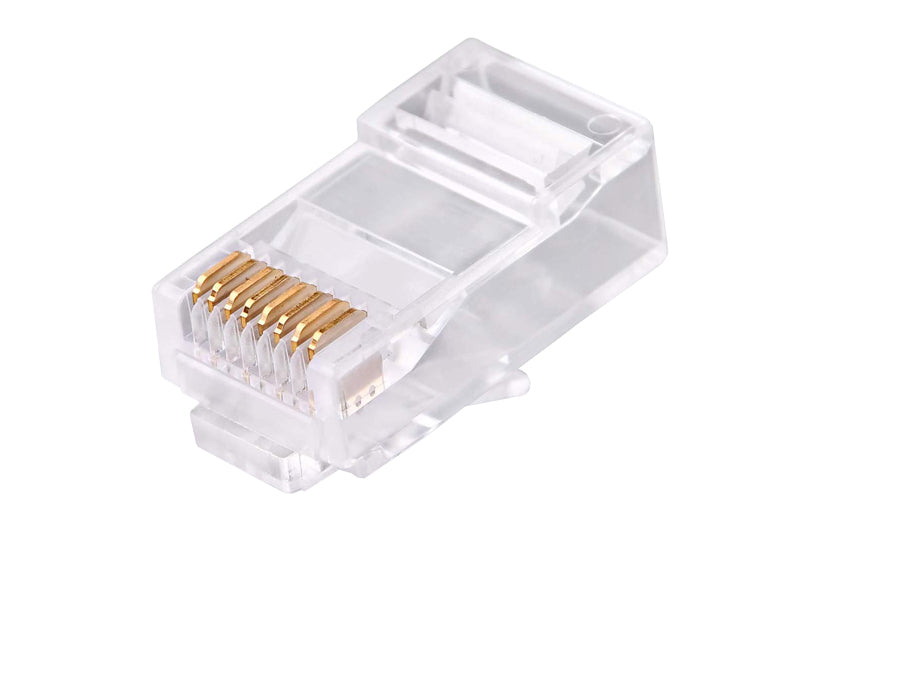

CAT5e EZ RJ45 UTP Connector
The CAT5e EZ RJ45 UTP Connector is designed to simplify network cable termination while ensuring reliable, high-performance connections. Its innovative EZ pass-through design allows all eight conductors to pass completely through the connector before crimping, making it easy to verify the correct wire sequence and reducing installation errors.
Compatible with 23–26 AWG UTP solid or stranded CAT5e cable, these connectors feature 50-micron gold-plated contacts over a copper alloy base for excellent conductivity, corrosion resistance, and long-lasting performance. When used with a compatible EZ crimp tool, the excess wire is trimmed during crimping, producing clean, professional terminations with minimal effort.
Key Features
-
EZ pass-through design for faster, easier cable termination
-
Allows all 8 conductors to pass through the connector for visual verification
-
Helps reduce wiring mistakes and packet loss caused by poor terminations
-
Compatible with CAT5e UTP network cables
-
Fits 23–26 AWG conductors
-
50-micron gold-plated contacts for excellent conductivity
-
Durable polycarbonate housing
-
Ideal for professional and DIY network installations
Technical Specifications
-
Product Type: RJ45 Pass-Through Connector
-
Category: CAT5e
-
Connector Type: UTP (Unshielded Twisted Pair)
-
Design: EZ Pass-Through
-
Number of Conductors: 8P8C (8 Position, 8 Contact)
-
Compatible Cable Size: 23–26 AWG
-
Contact Material: 50 Micron Gold Plating over Copper Alloy
-
Housing Material: Polycarbonate
What's Included
-
CAT5e EZ RJ45 UTP Connector(s)
(Quantity depends on the selected pack size.)
Ideal Applications
Perfect for:
-
Ethernet network installations
-
IP CCTV systems
-
Structured cabling
-
Home and office networking
-
Router and switch connections
-
Patch cable assembly
-
Network maintenance and repairs
Benefits
-
Faster and more accurate cable termination
-
Visually confirms correct wire order before crimping
-
Reduces installation errors and failed terminations
-
Gold-plated contacts provide reliable signal transmission
-
Helps minimise packet loss and connection issues
-
Suitable for both professional installers and DIY users
Installation Information
For best results, use a compatible EZ crimp tool, which crimps the connector and trims the excess conductors in a single operation. Ensure the cable is wired according to the required T568A or T568B wiring standard before crimping.
