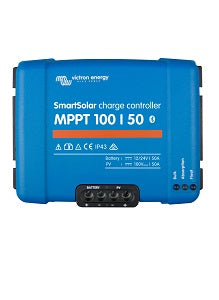

Victron SmartSolar MPPT 100/50 12/24V 50A Charge Controller
The Victron SmartSolar MPPT 100/50 is a high-performance MPPT solar charge controller designed for 12V and 24V battery systems. Featuring ultra-fast Maximum Power Point Tracking (MPPT) and built-in Bluetooth, it maximises solar energy harvest while providing advanced monitoring and configuration through the VictronConnect App.
With advanced MPPT tracking for partial shading conditions, flexible charging algorithms, and comprehensive electronic protection, it is an ideal solution for residential, commercial, and off-grid solar installations.
Features
-
Compatible with 12V and 24V battery systems
-
Maximum charging current: 50A
-
Ultra-fast MPPT technology
-
Advanced MPPT tracking in partial shading conditions
-
Up to 98% conversion efficiency
-
Built-in Bluetooth Smart for setup, monitoring, and firmware updates
-
Real-time monitoring via the VictronConnect App
-
Fully programmable charging algorithm
-
Eight pre-programmed charging algorithms
-
Screw terminal connections
-
Comprehensive electronic protection against overheating, reverse polarity, reverse current, and short circuits
Specifications
| Specification | Details |
|---|---|
| Brand | Victron Energy |
| Model | SmartSolar MPPT 100/50 |
| Part Number | VIC-SMARTSOL-MPPT-100-50 |
| Product Type | MPPT Solar Charge Controller |
| System Voltage | 12/24V |
| Maximum Charge Current | 50A |
| MPPT Quantity | 1 |
| MPPT Input Voltage Range | 13–100V DC |
| Start-up Voltage | 13V DC |
| Shutdown Voltage | 13V DC |
| Maximum PV Input Voltage | 100V DC |
| Maximum PV Power | 1,320W |
| Maximum PV Input Current | 50A |
| Maximum DC Inputs | 6 |
| Connector Type | Screw Terminal |
| Integrated DC Switch | No |
| DC Fuses | No |
| Communication | Bluetooth Smart |
| Weight | 1.73kg |
| Warranty | 5 Years |
Installation Notice: This product must be installed by a qualified electrician or technician. All installations must comply with local electrical regulations and standards.
