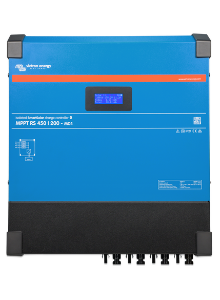

Victron SmartSolar MPPT RS 450/100 MC4 48V 100A Charge Controller
The Victron SmartSolar MPPT RS 450/100 MC4 is a high-performance 48V MPPT solar charge controller designed for on-grid and off-grid solar energy systems. Supporting up to 450V DC PV input and 100A battery charging, it delivers efficient solar charging for high-voltage PV installations.
Featuring two independent MPPT trackers, integrated Bluetooth, VE.Can and VE.Direct communication, and MC4 PV connections, it provides advanced monitoring, flexible system design, and seamless integration with Victron Energy systems.
Features
-
48V MPPT solar charge controller
-
Up to 450V DC PV input
-
Maximum charging current: 100A
-
Two independent MPPT trackers
-
Multiple MPPT tracking inputs
-
Isolated PV connections for enhanced safety
-
Input voltage range: 65–450V DC
-
Start-up voltage: 115V DC
-
Integrated display and Bluetooth
-
VE.Can and VE.Direct communication ports
-
Configure and monitor with the VictronConnect App
-
30-day history per individual MPPT
-
Suitable for on-grid and off-grid solar systems
Specifications
| Specification | Details |
|---|---|
| Brand | Victron Energy |
| Model | SmartSolar MPPT RS 450/100 MC4 |
| Product Type | MPPT Solar Charge Controller |
| System Voltage | 48V |
| Maximum Charge Current | 100A |
| MPPT Quantity | 2 |
| MPPT Input Voltage Range | 65–450V DC |
| Start-up Voltage | 115V DC |
| Shutdown Voltage | 65V DC |
| Maximum PV Input Voltage | 450V DC |
| Maximum PV Power | 11,520W |
| Maximum PV Input Current | 32A |
| Maximum DC Inputs | 2 |
| Connector Type | Round Post |
| Integrated DC Switch | No |
| DC Fuses | No |
| Communication | Bluetooth, VE.Can, VE.Direct |
| IP Rating | IP22 |
| Weight | 7.9kg |
| Warranty | 5 Years |
