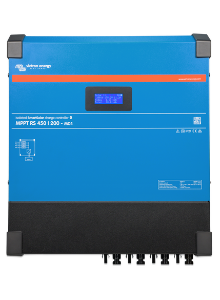

Victron SmartSolar MPPT RS 450/200 MC4 48V 200A Charge Controller
The Victron SmartSolar MPPT RS 450/200 MC4 is a high-performance 48V MPPT solar charge controller designed for large on-grid and off-grid solar energy systems. Supporting up to 450V DC PV input and 200A battery charging, it delivers maximum charging efficiency for high-power battery storage applications.
Featuring four independent MPPT trackers, integrated Bluetooth, VE.Can and VE.Direct communication, and MC4 PV connections, it provides advanced monitoring, flexible system design, and seamless integration with Victron Energy systems.
Features
-
48V MPPT solar charge controller
-
Up to 450V DC PV input
-
Maximum charging current: 200A
-
Four independent MPPT trackers
-
Multiple MPPT tracking inputs
-
Isolated PV connections for enhanced safety
-
Input voltage range: 65–450V DC
-
Start-up voltage: 120V DC
-
Integrated display and Bluetooth
-
VE.Can and VE.Direct communication ports
-
Configure and monitor with the VictronConnect App
-
30-day history per individual MPPT
-
Suitable for on-grid and off-grid solar systems
Specifications
| Specification | Details |
|---|---|
| Brand | Victron Energy |
| Model | SmartSolar MPPT RS 450/200 MC4 |
| Product Type | MPPT Solar Charge Controller |
| System Voltage | 48V |
| Maximum Charge Current | 200A |
| MPPT Quantity | 4 |
| MPPT Input Voltage Range | 65–450V DC |
| Start-up Voltage | 120V DC |
| Shutdown Voltage | 65V DC |
| Maximum PV Input Voltage | 450V DC |
| Maximum PV Power | 23,040W |
| Maximum PV Input Current | 64A |
| Maximum DC Inputs | 4 |
| Connector Type | Round Post |
| Integrated DC Switch | No |
| DC Fuses | No |
| Communication | Bluetooth, VE.Can, VE.Direct |
| IP Rating | IP22 |
| Weight | 25kg |
| Warranty | 5 Years |
