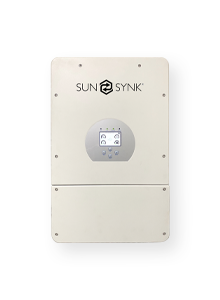

Sunsynk 5kW 48V Single-Phase Classic Hybrid Inverter with Wi-Fi
The Sunsynk 5kW 48V Single-Phase Classic Hybrid Inverter is a versatile hybrid energy solution designed for residential homes, home offices, and small commercial applications.
Engineered to intelligently manage power from solar panels, battery storage, the utility grid, and generators, this inverter delivers reliable backup power while maximising solar self-consumption and energy efficiency.
With built-in Wi-Fi connectivity, an IP65-rated enclosure, and support for parallel operation, the Sunsynk 5kW Classic Hybrid Inverter offers a flexible and scalable solution for modern energy systems.
System Information
The inverter delivers 5,000W continuous single-phase output power and seamlessly integrates multiple energy sources to ensure uninterrupted power during grid outages.
Automatic switching between grid-connected and off-grid operation ensures essential loads remain powered, while separate outputs for essential and non-essential loads provide greater flexibility in system design.
Key Features
-
5kW single-phase hybrid inverter
-
Compatible with lithium-ion and lead-acid batteries
-
Built-in Wi-Fi monitoring (dongle included)
-
Mobile app for remote monitoring
-
IP65-rated enclosure for indoor or outdoor installation
-
Automatic switching between grid-tied and off-grid operation
-
Zero export capability
-
Separate outputs for essential and non-essential loads
-
Supports parallel operation of up to 16 inverters
-
CT clamp included as standard
-
5-year manufacturer's warranty
-
Extended 10-year warranty when paired with Sunsynk G-Series or W-Series batteries*
Technical Specifications
Inverter
-
Rated Output Power: 5,000W
-
Output Type: Single-Phase
-
Battery Voltage: 48V
-
Battery Compatibility: Lithium-Ion and Lead-Acid
-
Maximum Parallel Units: 16
-
Protection Rating: IP65
-
Remote Monitoring: Built-in Wi-Fi
-
Zero Export Function: Yes
-
Essential Load Output: Yes
-
Non-Essential Load Output: Yes
-
Automatic Grid/Off-Grid Switching: Yes
Battery Compatibility
Compatible with a wide range of 48V lithium-ion and lead-acid batteries.
For communication with supported battery brands, use the recommended BMS cable:
-
Pylontech, REVOV and Hubble Lithium: SUN-CAN-3M
-
Freedom Won: F-WON-CAN-SUN
Before commissioning, ensure the inverter has been updated to the latest firmware version.
What's Included
-
Sunsynk 5kW 48V Single-Phase Classic Hybrid Inverter
-
Wi-Fi Monitoring Dongle
-
CT Clamp
-
Installation Documentation
Ideal Applications
The Sunsynk 5kW Classic Hybrid Inverter is ideal for:
-
Residential homes
-
Home offices
-
Small businesses
-
Backup power systems
-
Solar self-consumption installations
-
Grid-tied solar systems
-
Indoor and outdoor installations
Warranty & Registration
This product includes a 5-year manufacturer's warranty, extendable to 10 years when paired with compatible Sunsynk G-Series or W-Series batteries.
To ensure full warranty activation, all Sunsynk installations must be registered within 7 days of commissioning. Failure to register the installation may result in the warranty becoming void.
Important Installation Information
It is recommended that the output circuit breaker complies with SANS 10142-1 requirements.
-
Maximum inverter pass-through current: 35A
-
Recommended output circuit breaker: 32A
Professional Installation Required
This product must be installed by a qualified electrician or accredited solar installer. All installations must comply with applicable local electrical regulations and standards. Incorrect installation may affect system performance and may void the manufacturer's warranty.
