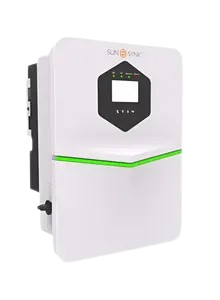

Sunsynk Acure 8kW Single-Phase Hybrid Inverter (White)
The Sunsynk Acure 8kW Single-Phase Hybrid Inverter (White) is a next-generation hybrid energy management solution designed to deliver intelligent, efficient, and secure power management for residential and light commercial solar installations.
Combining advanced hybrid inverter technology with built-in smart home integration, wireless connectivity, and enhanced safety features, the Acure seamlessly manages solar panels, battery storage, and grid power while providing reliable backup during outages.
With its modern user interface, integrated Bluetooth, Wi-Fi, LAN connectivity, and IP65-rated enclosure, the Acure offers an advanced yet user-friendly solution for today's energy demands.
System Information
The inverter delivers 8,000W continuous single-phase output power and supports up to 12,800W of photovoltaic (PV) input, making it suitable for medium to large homes and small commercial applications.
Dual independent MPPT trackers optimise solar generation from multiple roof orientations, while advanced battery management maximises energy storage and backup performance.
Built-in Bluetooth, Wi-Fi, and LAN connectivity eliminate the need for an external data logger, allowing convenient remote monitoring and system management.
Key Features
-
8kW single-phase hybrid inverter
-
Supports up to 12.8kW of solar PV input
-
Dual MPPT trackers with four DC inputs
-
Programmable wireless smart switch (40A switch included)
-
Supports up to 10 wireless smart switches
-
Wireless CT coil capability
-
Built-in Bluetooth, Wi-Fi and LAN connectivity
-
No external data logger required
-
New user-friendly interface
-
Built-in arc fault detection
-
Built-in solar panel theft detection
-
Multi-colour LED status indicator
-
Supports parallel operation of up to 16 units
-
Intelligent air cooling
-
IP65-rated enclosure for indoor or outdoor installation
-
Integrated DC isolation switch
-
High conversion efficiency of up to 97.5%
-
5-year manufacturer's warranty*
Technical Specifications
Inverter
-
Continuous Output Power: 8,000W
-
Peak Surge Power: 16,000W (1 second)
-
Maximum AC Output (5 minutes): 8,000W
-
Maximum PV Input Power: 12,800W
-
MPPT Inputs: 2
-
DC Inputs: 4
-
Maximum DC Input Current: 64A
-
MPPT Operating Voltage Range: 125V – 425V
-
DC Start-up Voltage: 150V
-
DC Shutdown Voltage: 150V
-
Maximum PV Input Voltage: 500V
-
Connector Type: MC4
-
Euro Efficiency: 97.5%
-
Transformer: Transformerless
-
Integrated DC Isolation Switch: Yes
-
Protection Rating: IP65
What's Included
-
Sunsynk Acure 8kW Single-Phase Hybrid Inverter (White)
-
40A Wireless Smart Switch
-
Installation Documentation
Ideal Applications
The Sunsynk Acure 8kW is ideal for:
-
Residential solar systems
-
Premium home backup power
-
Small commercial buildings
-
Smart home energy management
-
Solar self-consumption systems
-
Indoor and outdoor installations
-
Expandable battery storage systems
Warranty & Registration
This product includes a 5-year manufacturer's warranty.
To ensure full warranty activation, the installation must be registered within 7 days of commissioning. Failure to register the installation may result in the warranty becoming void.
Professional Installation Required
This product must be installed by a qualified electrician or accredited solar installer. All installations must comply with applicable local electrical regulations and standards. Incorrect installation may affect system performance and may void the manufacturer's warranty.
