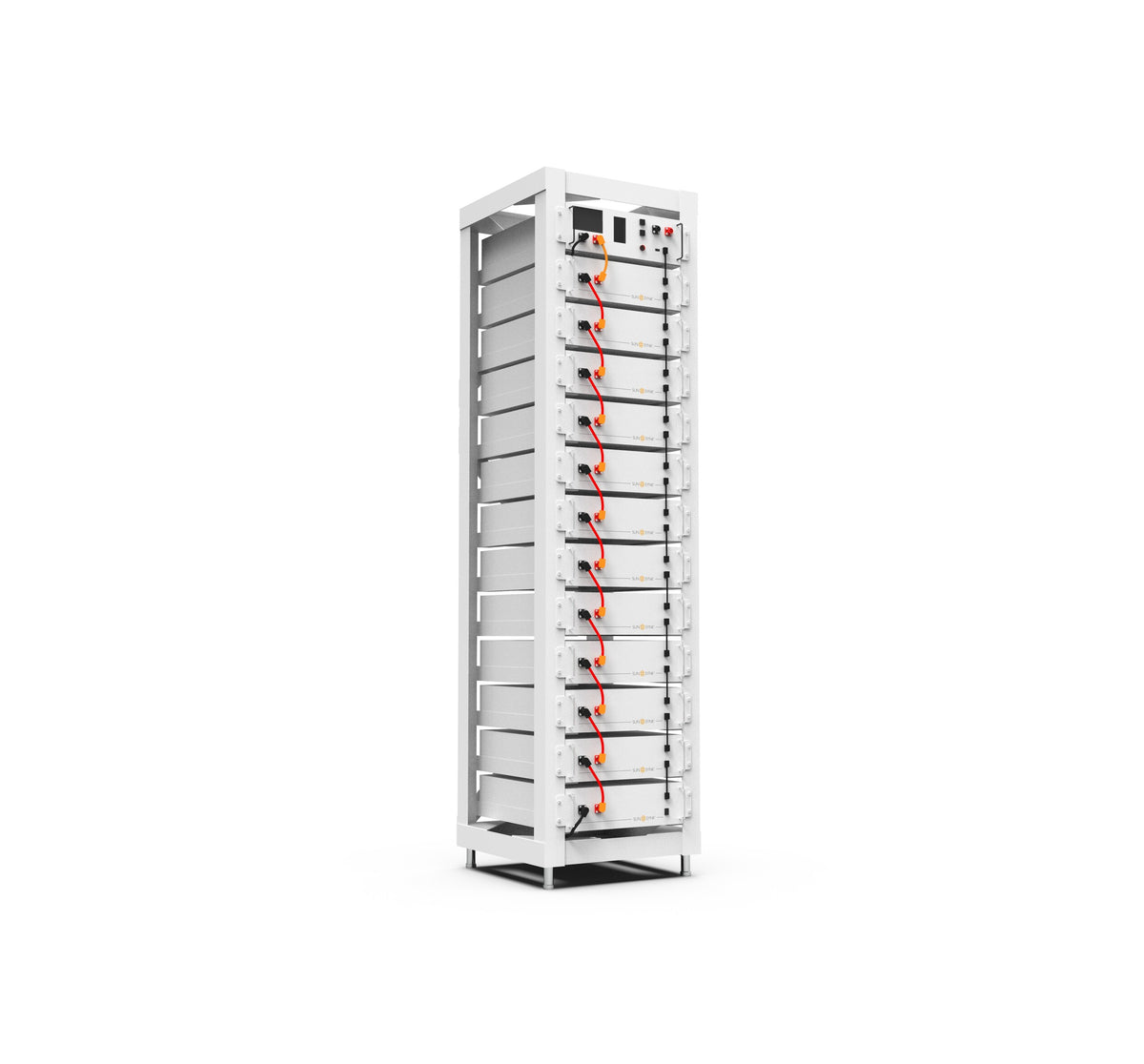

Sunsynk 61.44kWh High Voltage Battery System
The Sunsynk 61.44kWh High Voltage Battery System is a commercial-grade rack-mounted lithium-ion energy storage solution designed for large residential, commercial, agricultural, and industrial applications.
Comprising 12 high-voltage 5.12kWh battery modules, a Battery Management Unit (BMU), and a dedicated rack cabinet, this fully integrated system delivers outstanding reliability, high power output, and scalable energy storage for demanding backup and solar applications.
Designed for compatibility with the Sunsynk 50kW Three-Phase Hybrid Inverter, the system offers exceptional performance with support for large-scale energy storage installations.
System Information
The system combines 12 × 5.12kWh lithium-ion battery modules to provide a total storage capacity of 61.44kWh at a nominal system voltage of 614V.
With a 1C charge and discharge rating, the battery delivers up to 61.44kW of continuous power, making it suitable for high-demand commercial and industrial energy systems.
The modular design allows up to 16 battery stacks to be connected in parallel, providing an impressive total storage capacity of 983.04kWh for larger installations.
Key Features
-
Complete 61.44kWh high-voltage lithium-ion battery system
-
Includes 12 battery modules, BMU and rack cabinet
-
1C charge and discharge capability
-
61.44kW continuous charge and discharge power
-
90% depth of discharge (DoD)
-
Intelligent touchscreen interface
-
Rack-mounted modular design
-
Expandable up to 16 battery stacks (983.04kWh)
-
Designed for commercial and industrial energy storage
-
10-year manufacturer's warranty
Technical Specifications
Battery System
-
Battery Chemistry: Lithium-Ion
-
Total Nominal Capacity: 61.44kWh
-
Nominal Energy: 61,440Wh
-
Nominal Voltage: 614V
-
Depth of Discharge: 90%
-
Continuous Charge Power: 61,440W
-
Continuous Discharge Power: 61,440W
-
Maximum Charge Power (5 minutes): 61,440W
-
Maximum Discharge Power (5 minutes): 61,440W
-
Surge Discharge Power (15 seconds): 61,440W
-
Expandability: Up to 16 battery stacks
-
Maximum Total Capacity: 983.04kWh
-
Product Weight: 660kg
What's Included
-
12 × Sunsynk 5.12kWh High Voltage Battery Modules
-
1 × Sunsynk Battery Management Unit (BMU)
-
1 × Sunsynk 61.44kWh Battery Rack Cabinet
Compatible Inverter
This battery system is compatible with:
-
Sunsynk 50kW Three-Phase Hybrid Inverter (SUN-50.0-3PH)
Important: Ensure the battery bank's power output and storage capacity are suitable for the inverter size and installation requirements before commissioning.
Ideal Applications
The Sunsynk 61.44kWh High Voltage Battery System is ideal for:
-
Commercial buildings
-
Industrial facilities
-
Agricultural installations
-
Large residential properties
-
Three-phase solar systems
-
High-capacity backup power
-
Large-scale battery energy storage systems
Warranty
This product includes a 10-year manufacturer's warranty.
Professional Installation Required
This product must be installed by a qualified electrician or accredited solar installer. All installations must comply with applicable local electrical regulations, manufacturer guidelines, and system design requirements to ensure safe, reliable, and efficient operation.
