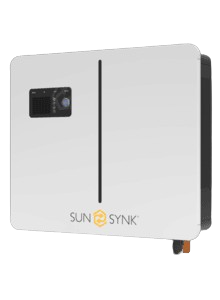

Sunsynk Lynks 6kW 48V Single-Phase IP41 Hybrid Inverter
The Sunsynk Lynks 6kW Single-Phase IP41 Hybrid Inverter is a versatile hybrid energy solution designed for residential homes and small commercial applications.
Designed to integrate solar panels, battery storage, and the utility grid into one intelligent system, the Lynks 6kW provides reliable backup power, efficient solar energy utilisation, and advanced energy management. Compatible with both conventional solar PV systems and microinverters, it offers flexible installation options to suit a wide range of energy requirements.
Built with an IP41-rated enclosure for indoor installations, the inverter features dual MPPT technology, built-in Wi-Fi monitoring, and support for both lithium-ion and lead-acid battery systems.
System Information
The inverter delivers 6,000W continuous single-phase output power and supports up to 8,000W of photovoltaic (PV) input, making it ideal for medium-sized homes, home offices, and small businesses.
Dual independent MPPT trackers maximise solar generation from multiple roof orientations while intelligent battery management ensures efficient charging and dependable backup power during grid interruptions.
The included Wi-Fi dongle enables remote system monitoring, allowing users to track energy production and consumption from anywhere.
Key Features
-
6kW single-phase hybrid inverter
-
Supports up to 8kW of solar PV input
-
Dual MPPT trackers with 15A rated input current per MPPT
-
Compatible with conventional solar PV systems and microinverters
-
Supports both lithium-ion and lead-acid batteries
-
IP41-rated enclosure for indoor installations
-
Built-in Wi-Fi monitoring (dongle included)
-
CT clamp included as standard
-
Integrated DC isolation switch
-
High conversion efficiency of up to 97%
-
5-year manufacturer's warranty*
Technical Specifications
Inverter
-
Continuous Output Power: 6,000W
-
Peak Surge Power: 12,000W (1 second)
-
Maximum AC Output (5 minutes): 6,000W
-
Maximum PV Input Power: 8,000W
-
MPPT Inputs: 2
-
Rated Input Current: 15A per MPPT
-
Maximum DC Input Current: 30A
-
MPPT Operating Voltage Range: 120V – 450V
-
DC Start-up Voltage: 150V
-
DC Shutdown Voltage: 149V
-
Maximum PV Input Voltage: 500V
-
Connector Type: MC4
-
Euro Efficiency: 97%
-
Transformer: Transformerless
-
Integrated DC Isolation Switch: Yes
-
Protection Rating: IP41
Battery Compatibility
The Sunsynk Lynks 6kW is compatible with:
-
Sunsynk X-Series Batteries
-
Pylontech UF5000
-
Pylontech US3000D
-
Freedom Won eTower
Please Note: When using Pylontech or Freedom Won eTower batteries, ensure the inverter firmware has been updated before commissioning. Recommended firmware versions are:
LCD: v1.5-2.0.1.8
Main: v1.5-1.2.4.3
What's Included
-
Sunsynk Lynks 6kW Single-Phase IP41 Hybrid Inverter
-
Wi-Fi Monitoring Dongle
-
CT Clamp
-
Installation Documentation
Ideal Applications
The Sunsynk Lynks 6kW is ideal for:
-
Residential solar systems
-
Family homes
-
Home offices
-
Small businesses
-
Backup power systems
-
Solar self-consumption installations
-
Indoor energy storage systems
Warranty & Registration
This product includes a 5-year manufacturer's warranty.
To ensure full warranty activation, all Sunsynk installations must be registered within 7 days of commissioning. Failure to register the installation may result in the warranty becoming void.
Professional Installation Required
This product must be installed by a qualified electrician or accredited solar installer. All installations must comply with applicable local electrical regulations and standards. Incorrect installation may affect system performance and may void the manufacturer's warranty.
