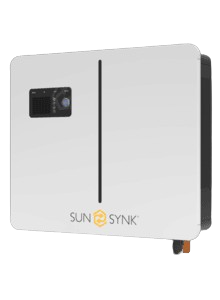

Sunsynk Lynks 8kW 48V Single-Phase IP41 Hybrid Inverter
The Sunsynk Lynks 8kW Single-Phase IP41 Hybrid Inverter is a high-performance hybrid energy solution designed for residential and light commercial solar installations.
Designed to integrate solar panels, battery storage, and the utility grid into one intelligent system, the Lynks 8kW delivers reliable backup power, efficient solar energy utilisation, and advanced energy management. With dual MPPT technology and support for large PV arrays, it is ideal for homes and businesses looking to maximise energy independence.
Built for indoor installations with an IP41-rated enclosure, the inverter includes built-in Wi-Fi monitoring and a CT clamp as standard, making system monitoring and energy management simple and convenient.
System Information
The inverter delivers 8,000W continuous single-phase output power and supports up to 10,000W of photovoltaic (PV) input, making it suitable for medium to large residential properties and small commercial applications.
Dual independent MPPT trackers maximise solar generation from multiple roof orientations while intelligent battery management ensures efficient charging and dependable backup performance.
Remote monitoring is enabled through the included Wi-Fi dongle, allowing users to monitor system performance from anywhere.
Key Features
-
8kW single-phase hybrid inverter
-
Supports up to 10kW of solar PV input
-
Dual MPPT trackers with 23A rated input current per MPPT
-
Compatible with conventional solar PV systems and microinverters
-
IP41-rated enclosure for indoor installations
-
Built-in Wi-Fi monitoring (dongle included)
-
CT clamp included as standard
-
Integrated DC isolation switch
-
High conversion efficiency of up to 97.6%
-
5-year manufacturer's warranty*
Technical Specifications
Inverter
-
Continuous Output Power: 8,000W
-
Peak Surge Power: 16,000W (1 second)
-
Maximum AC Output (5 minutes): 8,000W
-
Maximum PV Input Power: 10,000W
-
MPPT Inputs: 2
-
Rated Input Current: 23A per MPPT
-
Maximum DC Input Current: 46A
-
MPPT Operating Voltage Range: 120V – 450V
-
DC Start-up Voltage: 150V
-
DC Shutdown Voltage: 149V
-
Maximum PV Input Voltage: 500V
-
Connector Type: MC4
-
Euro Efficiency: 97.6%
-
Transformer: Transformerless
-
Integrated DC Isolation Switch: Yes
-
Protection Rating: IP41
Battery Compatibility
The Sunsynk Lynks 8kW is compatible with:
-
Sunsynk X-Series Batteries
-
Pylontech UF5000
-
Pylontech US3000D
-
Freedom Won eTower
Please Note: When using Pylontech or Freedom Won eTower batteries, ensure the inverter firmware has been updated to the latest version before commissioning.
What's Included
-
Sunsynk Lynks 8kW Single-Phase IP41 Hybrid Inverter
-
Wi-Fi Monitoring Dongle
-
CT Clamp
-
Installation Documentation
Ideal Applications
The Sunsynk Lynks 8kW is ideal for:
-
Residential solar systems
-
Large family homes
-
Small commercial buildings
-
Home offices
-
Backup power systems
-
Solar self-consumption installations
-
Indoor energy storage systems
Warranty & Registration
This product includes a 5-year manufacturer's warranty.
To ensure full warranty activation, all Sunsynk installations must be registered within 7 days of commissioning. Failure to register the installation may result in the warranty becoming void.
Professional Installation Required
This product must be installed by a qualified electrician or accredited solar installer. All installations must comply with applicable local electrical regulations and standards. Incorrect installation may affect system performance and may void the manufacturer's warranty.
