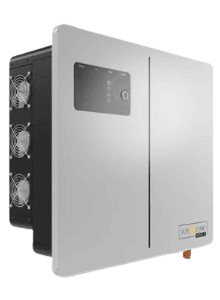

Sunsynk Lynks Pro 2nd Generation 10kW 48V Single-Phase IP65 Hybrid Inverter
The Sunsynk Lynks Pro 2nd Generation 10kW Single-Phase Hybrid Inverter is a high-performance energy management solution designed for larger residential properties, small commercial buildings, and demanding backup power applications.
Built with a durable IP65-rated enclosure, this advanced hybrid inverter seamlessly integrates solar panels, battery storage, the utility grid, wind turbines, and microinverters into one intelligent system. With support for large solar arrays, dual MPPT technology, and built-in remote monitoring, the Lynks Pro delivers outstanding efficiency, flexibility, and reliable backup power.
Designed for both indoor and outdoor installations, it also supports three-phase system configurations, making it an excellent choice for expandable energy systems.
System Information
The inverter delivers 10,000W continuous single-phase output power and supports up to 15,000W of photovoltaic (PV) input, making it ideal for larger homes, offices, farms, and commercial applications.
Dual independent MPPT trackers maximise solar energy production from multiple roof orientations while intelligent battery management optimises charging, energy storage, and backup performance.
The integrated touchscreen LCD provides intuitive local system control, while the included Wi-Fi dongle enables convenient remote monitoring from anywhere.
Key Features
-
10kW single-phase hybrid inverter
-
Supports up to 15kW of solar PV input
-
Dual MPPT trackers with 28A rated input current per MPPT
-
Compatible with solar panels, battery storage, wind turbines and microinverters
-
Supports three-phase system configuration
-
IP65-rated enclosure for indoor or outdoor installation
-
Touchscreen LCD display
-
Built-in Wi-Fi monitoring (dongle included)
-
CT clamp included as standard
-
Integrated DC isolation switch
-
High conversion efficiency of up to 97.6%
-
5-year manufacturer's warranty*
Technical Specifications
Inverter
-
Continuous Output Power: 10,000W
-
Peak Surge Power: 20,000W (1 second)
-
Maximum AC Output (5 minutes): 10,000W
-
Maximum PV Input Power: 15,000W
-
MPPT Inputs: 2
-
Rated Input Current: 28A per MPPT
-
Maximum DC Input Current: 56A
-
MPPT Operating Voltage Range: 120V – 450V
-
DC Start-up Voltage: 150V
-
DC Shutdown Voltage: 149V
-
Maximum PV Input Voltage: 500V
-
Connector Type: MC4
-
Euro Efficiency: 97.6%
-
Transformer: Transformerless
-
Integrated DC Isolation Switch: Yes
-
Protection Rating: IP65
Battery Compatibility
The Sunsynk Lynks Pro 2nd Generation is compatible with:
-
Sunsynk X-Series Batteries
-
Pylontech UF5000
-
Pylontech US3000D
-
Freedom Won eTower
Please Note: The Lynks Pro 2nd Generation IP65 range is not compatible with the Sunsynk Lynks IP41 range.
What's Included
-
Sunsynk Lynks Pro 2nd Generation 10kW Single-Phase Hybrid Inverter
-
Wi-Fi Monitoring Dongle
-
CT Clamp
-
Installation Documentation
Ideal Applications
The Sunsynk Lynks Pro is ideal for:
-
Large residential homes
-
Luxury residences
-
Small commercial buildings
-
Farms and agricultural applications
-
High-demand backup power systems
-
Solar self-consumption systems
-
Expandable battery storage systems
-
Indoor and outdoor installations
Warranty & Registration
This product includes a 5-year manufacturer's warranty.
To ensure full warranty activation, all Sunsynk installations must be registered within 7 days of commissioning. Failure to register the installation may result in the warranty becoming void.
Professional Installation Required
This product must be installed by a qualified electrician or accredited solar installer. All installations must comply with applicable local electrical regulations and standards. Incorrect installation may affect system performance and may void the manufacturer's warranty.
