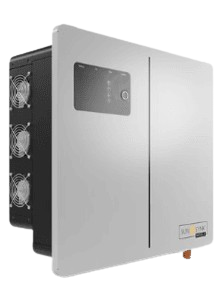

Sunsynk Lynks Pro 2nd Generation 12kW 48V Single-Phase IP65 Hybrid Inverter
The Sunsynk Lynks Pro 2nd Generation 12kW Single-Phase Hybrid Inverter is a premium high-capacity energy management solution designed for large residential properties, luxury homes, farms, and commercial applications requiring powerful single-phase backup and solar integration.
Engineered with a durable IP65-rated enclosure, this advanced hybrid inverter supports solar panels, battery storage, the utility grid, wind turbines, and microinverters. Its enhanced user interface, high solar capacity, and intelligent energy management make it ideal for demanding energy applications.
Supporting up to 18kW of solar PV, built-in Wi-Fi monitoring, and the ability to operate in three-phase configurations, the Lynks Pro provides outstanding flexibility for both new installations and future system expansion.
System Information
The inverter delivers 12,000W continuous single-phase output power and supports up to 18,000W of photovoltaic (PV) input, making it suitable for larger homes, commercial premises, and high-consumption backup systems.
Dual independent MPPT trackers optimise energy production from multiple roof orientations while intelligent battery management ensures efficient charging, energy storage, and backup operation.
The upgraded touchscreen LCD provides intuitive local system control, while the included Wi-Fi dongle enables remote monitoring from anywhere.
Key Features
-
12kW single-phase hybrid inverter
-
Supports up to 18kW of solar PV input
-
Dual MPPT trackers with 30A rated input current per MPPT
-
Compatible with solar panels, battery storage, wind turbines and microinverters
-
Supports three-phase system configuration
-
New and improved touchscreen user interface
-
IP65-rated enclosure for indoor or outdoor installation
-
Built-in Wi-Fi monitoring (dongle included)
-
CT clamp included as standard
-
NRS097 Approved
-
Integrated DC isolation switch
-
High conversion efficiency of up to 97.6%
-
5-year manufacturer's warranty*
Technical Specifications
Inverter
-
Continuous Output Power: 12,000W
-
Peak Surge Power: 24,000W (1 second)
-
Maximum AC Output (5 minutes): 12,000W
-
Maximum PV Input Power: 18,000W
-
MPPT Inputs: 2
-
Rated Input Current: 30A per MPPT
-
Maximum DC Input Current: 60A
-
MPPT Operating Voltage Range: 120V – 450V
-
DC Start-up Voltage: 150V
-
DC Shutdown Voltage: 149V
-
Maximum PV Input Voltage: 500V
-
Connector Type: MC4
-
Euro Efficiency: 97.6%
-
Transformer: High Frequency (HF)
-
Integrated DC Isolation Switch: Yes
-
Protection Rating: IP65
-
Compliance: NRS097 Approved
Battery Compatibility
The Sunsynk Lynks Pro 2nd Generation is compatible with:
-
Sunsynk X-Series Batteries
-
Pylontech UF5000
-
Pylontech US3000D
-
Freedom Won eTower
What's Included
-
Sunsynk Lynks Pro 2nd Generation 12kW Single-Phase Hybrid Inverter
-
Wi-Fi Monitoring Dongle
-
CT Clamp
-
Installation Documentation
Ideal Applications
The Sunsynk Lynks Pro is ideal for:
-
Large residential homes
-
Luxury residential properties
-
Small commercial buildings
-
Agricultural and farming applications
-
High-demand backup power systems
-
Solar self-consumption systems
-
Expandable battery storage installations
-
Indoor and outdoor installations
Warranty & Registration
This product includes a 5-year manufacturer's warranty.
To ensure full warranty activation, all Sunsynk installations must be registered within 7 days of commissioning. Failure to register the installation may result in the warranty becoming void.
Professional Installation Required
This product must be installed by a qualified electrician or accredited solar installer. All installations must comply with applicable local electrical regulations and standards. Incorrect installation may affect system performance and may void the manufacturer's warranty.
