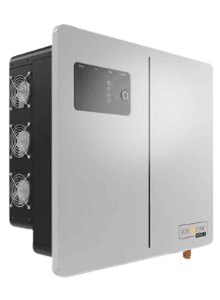

Sunsynk Lynks Pro 2nd Generation 12kW 48V Three-Phase IP65 Hybrid Inverter
The Sunsynk Lynks Pro 2nd Generation 12kW Three-Phase Hybrid Inverter is a powerful commercial-grade energy management solution designed for large residential properties, commercial buildings, agricultural applications, and three-phase backup power systems.
Featuring a robust IP65-rated enclosure, this advanced hybrid inverter supports high-capacity solar installations, battery storage, grid interaction, wind turbines, and microinverters. Its intelligent energy management, enhanced user interface, and high-efficiency operation make it an ideal solution for demanding energy applications.
With built-in Wi-Fi monitoring, a touchscreen LCD, and support for large PV arrays of up to 18kW, the Lynks Pro delivers exceptional performance while simplifying system monitoring and management.
System Information
The inverter delivers 12,000W continuous three-phase output power and supports up to 18,000W of photovoltaic (PV) input, making it ideal for larger homes, businesses, farms, and commercial installations.
Dual independent MPPT trackers maximise solar production from multiple roof orientations while intelligent battery management optimises energy storage and backup performance.
The updated touchscreen interface provides intuitive system control, while the included Wi-Fi dongle enables convenient remote monitoring from anywhere.
Key Features
-
12kW three-phase hybrid inverter
-
Supports up to 18kW of solar PV input
-
Dual MPPT trackers with 28A rated input current per MPPT
-
Compatible with solar panels, battery storage, wind turbines and microinverters
-
IP65-rated enclosure for indoor or outdoor installation
-
New and improved touchscreen user interface
-
Built-in Wi-Fi monitoring (dongle included)
-
CT clamp included as standard
-
Integrated DC isolation switch
-
High conversion efficiency of up to 97.6%
-
5-year manufacturer's warranty*
Technical Specifications
Inverter
-
Continuous Output Power: 12,000W
-
Peak Surge Power: 24,000W (1 second)
-
Maximum AC Output (5 minutes): 12,000W
-
Maximum PV Input Power: 18,000W
-
MPPT Inputs: 2
-
Rated Input Current: 28A per MPPT
-
Maximum DC Input Current: 56A
-
MPPT Operating Voltage Range: 120V – 450V
-
DC Start-up Voltage: 150V
-
DC Shutdown Voltage: 149V
-
Maximum PV Input Voltage: 500V
-
Connector Type: MC4
-
Euro Efficiency: 97.6%
-
Transformer: High Frequency (HF)
-
Integrated DC Isolation Switch: Yes
-
Protection Rating: IP65
Battery Compatibility
The Sunsynk Lynks Pro 2nd Generation is compatible with:
-
Sunsynk X-Series Batteries
-
Pylontech UF5000
-
Pylontech US3000D
-
Freedom Won eTower
What's Included
-
Sunsynk Lynks Pro 2nd Generation 12kW Three-Phase Hybrid Inverter
-
Wi-Fi Monitoring Dongle
-
CT Clamp
-
Installation Documentation
Ideal Applications
The Sunsynk Lynks Pro is ideal for:
-
Large residential solar systems
-
Commercial buildings
-
Agricultural and farming applications
-
Three-phase backup power systems
-
High-capacity solar installations
-
Battery energy storage systems
-
Indoor and outdoor installations
Warranty & Registration
This product includes a 5-year manufacturer's warranty.
To ensure full warranty activation, all Sunsynk installations must be registered within 7 days of commissioning. Failure to register the installation may result in the warranty becoming void.
Professional Installation Required
This product must be installed by a qualified electrician or accredited solar installer. All installations must comply with applicable local electrical regulations and standards. Incorrect installation may affect system performance and may void the manufacturer's warranty.
