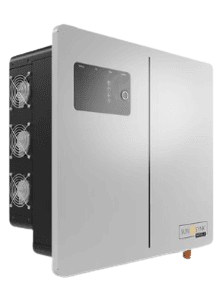

Sunsynk Lynks Pro 2nd Generation 8kW 48V Single-Phase IP65 Hybrid Inverter
The Sunsynk Lynks Pro 2nd Generation 8kW Hybrid Inverter is a high-performance single-phase energy management solution designed for residential and light commercial solar installations.
Built with a rugged IP65-rated enclosure for indoor and outdoor installations, the Lynks Pro combines advanced hybrid inverter technology with high solar input capacity, dual MPPT trackers, and intelligent energy management. Its flexible design allows seamless integration with solar panels, battery storage, the utility grid, wind turbines, and microinverters.
With support for three-phase system configurations and remote monitoring via the included Wi-Fi dongle, the Lynks Pro is ideal for both new installations and system upgrades.
System Information
The inverter delivers 8,000W continuous output power and supports up to 12,000W of photovoltaic (PV) input, making it suitable for medium to large residential properties and commercial applications with higher energy demands.
Dual independent MPPT trackers optimise solar generation from multiple roof orientations while intelligent battery management ensures efficient charging and reliable backup performance.
The integrated touchscreen LCD provides intuitive local system control, while built-in Wi-Fi enables convenient remote monitoring.
Key Features
-
8kW single-phase hybrid inverter
-
Supports up to 12kW of solar PV input
-
Dual MPPT trackers with 28A rated input current per MPPT
-
Suitable for solar panels, batteries, wind turbines and microinverters
-
IP65-rated enclosure for indoor or outdoor installation
-
Touchscreen LCD display
-
Integrated Wi-Fi monitoring (dongle included)
-
CT clamp included as standard
-
Supports three-phase system configuration
-
Integrated DC isolation switch
-
High conversion efficiency of up to 97.6%
-
5-year manufacturer's warranty*
Technical Specifications
Inverter
-
Continuous Output Power: 8,000W
-
Peak Surge Power: 16,000W (1 second)
-
Maximum AC Output (5 minutes): 8,000W
-
Maximum PV Input Power: 12,000W
-
MPPT Inputs: 2
-
Rated Input Current: 28A per MPPT
-
Maximum DC Input Current: 56A
-
MPPT Operating Voltage Range: 120V – 450V
-
DC Start-up Voltage: 150V
-
DC Shutdown Voltage: 149V
-
Maximum PV Input Voltage: 500V
-
Connector Type: MC4
-
Euro Efficiency: 97.6%
-
Transformer: Transformerless
-
Integrated DC Isolation Switch: Yes
-
Protection Rating: IP65
Battery Compatibility
The Sunsynk Lynks Pro 2nd Generation is compatible with:
-
Sunsynk X-Series Batteries
-
Pylontech UF5000
-
Pylontech US3000D
-
Freedom Won eTower
Please Note: The Lynks Pro 2nd Generation IP65 range is not compatible with the Sunsynk Lynks IP41 range.
What's Included
-
Sunsynk Lynks Pro 2nd Generation 8kW Hybrid Inverter
-
Wi-Fi Monitoring Dongle
-
CT Clamp
-
Installation Documentation
Ideal Applications
The Sunsynk Lynks Pro is ideal for:
-
Residential solar installations
-
Premium home backup systems
-
Small businesses
-
Commercial energy storage systems
-
Outdoor inverter installations
-
High-demand hybrid solar systems
-
Three-phase system configurations
Warranty & Registration
This product includes a 5-year manufacturer's warranty.
To ensure full warranty activation, all Sunsynk installations must be registered within 7 days of commissioning. Failure to register the installation may result in the warranty becoming void.
Professional Installation Required
This product must be installed by a qualified electrician or accredited solar installer. All installations must comply with applicable local electrical regulations and standards. Incorrect installation may affect system performance and may void the manufacturer's warranty.
