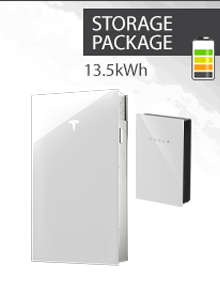

Tesla Powerwall 3 & Gateway Package for South Africa

Tesla Powerwall 3 & Gateway Package for South Africa

The Tesla Powerwall 3 & Gateway Package is a complete residential energy storage solution that combines the powerful Tesla Powerwall 3, Tesla Gateway 2, and the required Tesla EMI Filter Enclosure into one integrated package. Designed specifically for the South African market, this system provides reliable backup power, intelligent energy management, and seamless solar integration for modern homes.

The package delivers 13.5 kWh of usable lithium-ion battery storage, an integrated 11.04 kW hybrid inverter, and advanced whole-home energy monitoring through the Tesla Gateway. Together, these components optimise solar self-consumption, provide uninterrupted backup power during outages, and allow complete system control through the Tesla mobile app.

Package Includes

• 1 × Tesla Powerwall 3 – 11.04 kW Hybrid Inverter with 13.5 kWh Battery

• 1 × Tesla Gateway 2 AC Connection Box (South African Version)

• 1 × Tesla EMI Filter Enclosure Assembly

Key Features

• Complete Tesla home energy storage package

• Integrated 11.04 kW single-phase hybrid inverter

• 13.5 kWh usable lithium-ion battery capacity

• Supports up to 20 kW DC solar input

• Three independent Maximum Power Point Trackers (MPPTs)

• Tesla Gateway provides intelligent energy management

• Automatic backup during grid outages

• Real-time energy monitoring through the Tesla app

• Optimises solar self-consumption and battery usage

• Supports time-based electricity tariff optimisation

• Storm Watch automatically prepares the battery before severe weather events

• Expandable with additional Tesla Powerwall units

• NRS-097-2-1 Certified and City of Cape Town Approved

Complete Backup Power Solution

The Powerwall 3 combines a high-performance hybrid inverter and lithium-ion battery into a single unit, delivering up to 11.04 kW of continuous AC output while storing 13.5 kWh of usable energy. The system automatically supplies backup power during grid failures and can support the electrical demands of most residential properties.

Tesla Gateway Energy Management

The included Tesla Gateway 2 acts as the intelligent control centre for the entire energy system. It continuously monitors household energy consumption, solar generation, battery status, and grid availability.

Using the Tesla mobile app, homeowners can:

• Monitor live energy production and consumption

• Track battery charge levels

• Configure backup reserve settings

• Optimise energy usage

• Receive system notifications

• Manage time-based energy usage remotely

Maximise Solar Energy

Powerwall 3 supports up to 20 kW of DC solar input with three independent MPPTs, allowing multiple solar array orientations to operate efficiently. Excess solar energy generated during the day is stored in the battery for use at night or during power outages.

Reliable Backup Protection

Powerwall automatically detects grid failures and transitions to battery power within moments, keeping essential household circuits operating without interruption. The system is capable of starting heavy electrical loads with in-rush currents of up to 185 A, making it suitable for demanding residential applications.

Applications

Ideal for:

• Residential backup power

• Whole-home energy storage

• Solar self-consumption

• Load shedding protection

• Time-of-use electricity savings

• Electric vehicle charging

• Hybrid solar systems

Specifications

Powerwall 3

• Brand: Tesla

• Model: Powerwall 3 (South Africa)

• Integrated Inverter Output: 11.04 kW

• Usable Battery Capacity: 13.5 kWh

• Maximum Solar Input: 20 kW DC

• MPPT Trackers: 3

• Maximum PV Input Voltage: 600 V

• Maximum Charge Power: 5,000 W

• Continuous AC Output: 11.04 kW

• Solar-to-Grid Efficiency: 97.5%

Battery

• Battery Chemistry: Lithium-Ion

• Nominal Energy: 14,000 Wh

• Usable Energy: 13.5 kWh

• Depth of Discharge: 96%

• Nominal Voltage: 375 V

• Continuous Discharge Power: 5,000 W

• Maximum Discharge Power (5 Minutes): 5,000 W

• Maximum Charge Power (5 Minutes): 5,000 W

General

• Part Number: TES-POWERWALL3-PACK-SA

• System Type: Single-Phase Residential Energy Storage System

• Total Weight: 151.11 kg

What's Included

• 1 × Tesla Powerwall 3 with Integrated Hybrid Inverter

• 1 × Tesla Gateway 2 AC Connection Box (South African Version)

• 1 × Tesla EMI Filter Enclosure Assembly

Important: The Tesla Powerwall 3 must be installed together with a Tesla Gateway, which provides the energy management, backup control, and monitoring functions required for correct system operation. Installation must be carried out by a Tesla Certified Installer in accordance with Tesla installation requirements and all applicable local electrical regulations and standards. Only Tesla Certified Installers are authorised to purchase and install Tesla Powerwall products.
