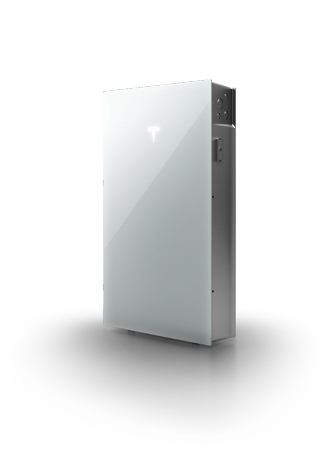

Tesla Powerwall 3 for South Africa – 11.04 kW Inverter with 13.5 kWh Battery

Tesla Powerwall 3 for South Africa – 11.04 kW Inverter with 13.5 kWh Battery

The Tesla Powerwall 3 is an all-in-one home energy storage system that combines a powerful 11.04 kW single-phase hybrid inverter with a 13.5 kWh lithium-ion battery in one compact unit. Designed specifically for the South African market, it provides reliable backup power, intelligent energy management, and seamless solar integration for residential applications.

With support for up to 20 kW of DC solar input, three independent MPPTs, and 11.04 kW continuous AC output, the Powerwall 3 is capable of powering most homes while maximising solar self-consumption and reducing reliance on the grid.

Key Features

• Integrated 11.04 kW single-phase hybrid inverter

• 13.5 kWh usable lithium-ion battery capacity

• 11.04 kW continuous backup power

• Supports up to 20 kW DC solar input

• 3 independent Maximum Power Point Trackers (MPPTs)

• Fast automatic backup transition during grid outages

• Integrated solar inverter with 97.5% solar-to-grid efficiency

• Optimises solar self-consumption and battery usage

• Compatible with time-of-use electricity tariffs

• Storm Watch feature automatically prepares the battery before severe weather events

• Supports EV charging using excess solar energy

• Modular design allows multiple Powerwall units for increased storage and power

• NRS-097-2-1 Certified and City of Cape Town Approved

All-in-One Energy Storage Solution

Powerwall 3 combines a high-performance battery and hybrid inverter into a single system, simplifying installation while reducing the number of external components required. Its integrated design improves efficiency, lowers installation costs, and provides a streamlined solution for both backup power and solar energy storage.

Reliable Backup Power

With 11.04 kW continuous output, Powerwall 3 can power most household appliances during load shedding or grid outages. It also supports heavy motor starting loads of up to 185 A Locked Rotor Amps (LRA), allowing demanding appliances such as pumps and air conditioners to start reliably.

Maximise Solar Energy

The integrated hybrid inverter captures and stores excess solar energy generated during the day, allowing it to be used during the evening, overnight, or during power outages. With three independent MPPTs, the system can optimise energy production across multiple roof orientations.

Intelligent Energy Management

Powerwall 3 automatically manages energy usage to maximise savings by:

• Storing excess solar energy for later use

• Reducing grid consumption during peak tariff periods

• Automatically preparing for severe weather using Storm Watch

• Optimising battery charging and discharge based on household demand

• Supporting EV charging using excess solar generation

Built for South African Conditions

Engineered for reliable operation in demanding environments, the Powerwall 3 is designed to withstand high humidity, extreme temperatures, and temporary water exposure, making it well suited for South African residential installations.

Applications

Ideal for:

• Residential backup power

• Whole-home energy storage

• Solar self-consumption

• Load shedding protection

• Time-of-use electricity savings

• Electric vehicle charging

• Hybrid solar systems

Specifications

Inverter

• Brand: Tesla

• Model: Powerwall 3 South Africa

• Part Number: TES-POWERWALL-3-SA

• Continuous AC Output: 11,040 W

• Maximum AC Output (5 Minutes): 11,040 W

• Surge Output (1 Second): 11,040 W

• Maximum Charge Power: 5,000 W

• Solar-to-Grid Efficiency: 97.5%

• MPPT Trackers: 3

• Maximum DC Solar Power: 20,000 W

• Maximum PV Input Voltage: 600 V

• MPPT Operating Voltage Range: 60–480 V

• DC Start-up Voltage: 60 V

• DC Shutdown Voltage: 60 V

• Maximum DC Current: 78 A

• Maximum DC Inputs: 6

• Connector Type: MC4

• Included Connectors: 6

• Integrated DC Switch: No

• Transformer Type: Transformerless

Battery

• Battery Type: Lithium-Ion

• Usable Energy Capacity: 13.5 kWh

• Nominal Energy: 13,500 Wh

• Depth of Discharge: 100%

• Continuous Discharge Power: 11,000 W

• Maximum Discharge Power (5 Minutes): 11,040 W

• Surge Discharge Power (15 Seconds): 11,040 W

• Nominal Voltage: 230 V

General

• Weight: 130 kg

• Application: Residential Hybrid Solar & Backup Energy Storage

• Certification: NRS-097-2-1 Certified

• Approval: City of Cape Town Approved

What's Included

• 1 × Tesla Powerwall 3 with Integrated 11.04 kW Hybrid Inverter

• Integrated 13.5 kWh Lithium-Ion Battery

• MC4 Solar Connectors

Important: Each Tesla Powerwall 3 requires its own AC line filter, installed between the battery AC terminal and its corresponding overcurrent protection device. Installation must be carried out by a Tesla Certified Installer in accordance with Tesla installation requirements and all applicable local electrical regulations and standards. Only Tesla Certified Installers are authorised to purchase and install Tesla Powerwall products.
