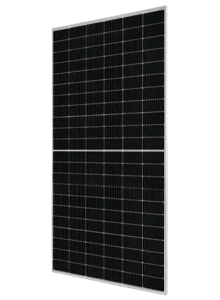

Trina Solar 630 W Vertex N-Type i-TOPCon Bifacial Dual Glass Monocrystalline Solar Panel
The Trina Solar 630 W Vertex N-Type i-TOPCon Bifacial Dual Glass Monocrystalline Solar Panel is a high-performance photovoltaic module engineered for utility-scale, commercial, and large residential solar installations. Built using advanced N-Type i-TOPCon cell technology and a durable dual-glass bifacial design, this module delivers outstanding efficiency, increased energy yield, and long-term reliability.
With an impressive 630 W power output and 23.3% module efficiency, the Vertex series is designed to maximise energy production while reducing the overall cost of electricity (LCOE). Its bifacial construction allows the rear side of the panel to capture reflected sunlight, increasing total energy generation by up to 80% bifaciality, depending on installation conditions.
Key Features
-
High-performance 630 W output
-
Advanced N-Type i-TOPCon cell technology
-
High module efficiency of 23.3%
-
Dual-glass bifacial design for increased energy yield
-
Up to 80% rear-side bifaciality
-
Lower annual power degradation for improved lifetime performance
-
Excellent performance in high-temperature conditions
-
Enhanced mechanical load resistance
-
Compatible with TS4 and Staubli MC4 (EVO2) connectors
-
Suitable for residential, commercial, and utility-scale installations
Advanced N-Type i-TOPCon Technology
The Vertex module utilises advanced N-Type i-TOPCon solar cells, offering higher efficiency, improved temperature performance, and significantly lower long-term degradation compared to conventional P-Type technologies. This results in greater lifetime energy production and a lower levelised cost of energy.
Bifacial Dual Glass Construction
The dual-glass design allows sunlight to be harvested from both the front and rear of the module. Depending on ground reflectivity and installation configuration, the rear side can contribute significant additional energy production, helping maximise overall system performance.
High Energy Yield
Combining high power output with industry-leading efficiency, the Vertex 630 W module helps reduce the number of panels, mounting hardware, and installation costs required for large solar systems.
Applications
Ideal for:
-
Utility-scale solar farms
-
Commercial rooftop installations
-
Industrial solar projects
-
Large residential systems
-
Ground-mounted solar arrays
-
Hybrid and off-grid energy systems
Specifications
-
Brand: Trina Solar
-
Model: Vertex N-Type i-TOPCon Bifacial Dual Glass
-
Part Number: TSM66-NEG19RC-20-630
-
Rated Power: 630 W
-
Module Efficiency: 23.3%
-
Cell Technology: N-Type i-TOPCon Monocrystalline
-
Module Type: Bifacial Dual Glass
-
Maximum Power Voltage (Vmp): 40.68 V
-
Maximum Power Current (Imp): 15.49 A
-
Open Circuit Voltage (Voc): 48.9 V
-
Short Circuit Current (Isc): 16.38 A
-
Temperature Coefficient (Pmax): -0.29%/°C
-
Dimensions: 2,382 × 1,134 × 30 mm
-
Weight: 33 kg
-
Connector Type: EVO2 (Compatible with Staubli MC4)
-
Clamp Position: Long Side Only
-
Pallet Size: Oversized
Warranty
-
12-Year Product Warranty
-
30-Year Linear Performance Warranty
What's Included
-
1 × Trina Solar 630 W Vertex N-Type i-TOPCon Bifacial Dual Glass Monocrystalline Solar Panel
Important: This solar panel must be installed by a qualified solar installer or electrician in accordance with applicable electrical regulations and manufacturer installation guidelines. Correct mounting, wiring, and system design are essential to ensure safe operation and optimal long-term performance.
