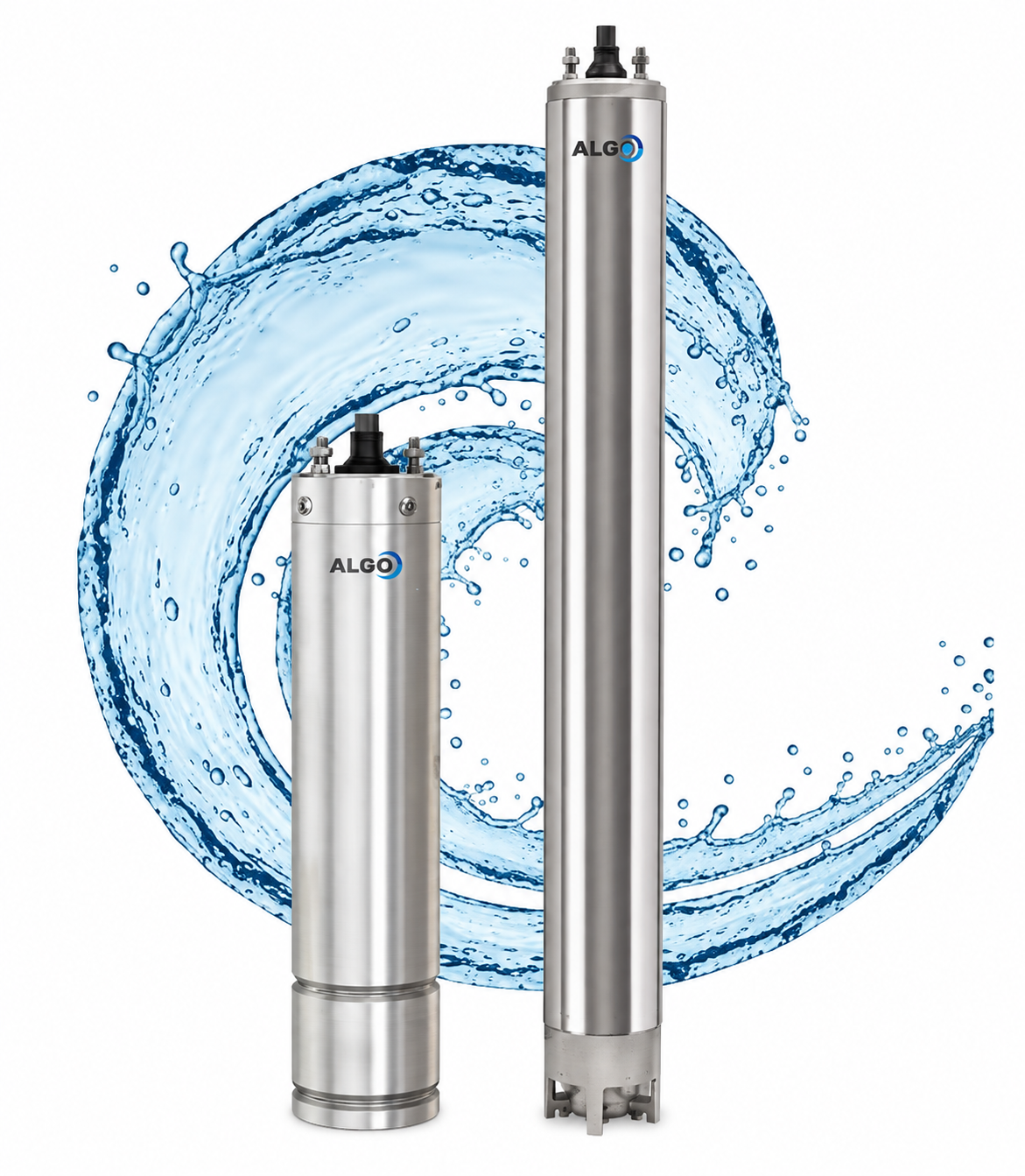

ALGO V4K-05M – LAVO Series 4" Oil Filled Submersible Motor & Control Box Package
The ALGO V4K-05M LAVO Series Motor & Control Box Package combines a 4" oil filled single-phase submersible motor with its compatible 0.55 kW single-phase control box, providing the essential motor and electrical control components for a borehole pumping system in one convenient package.
The V4K-05M motor has a 0.55 kW power rating and is designed for deep-well borehole installations with a maximum immersible depth of 150 m. Paired with the matching ALGO control box, this package provides a practical solution for use with a compatible 4" submersible pump end.
Key Features
-
Complete motor and control box package
-
LAVO Series
-
V4K-05M 4" oil filled submersible motor
-
0.55 kW motor power
-
Single-phase configuration
-
Includes compatible 0.55 kW single-phase control box
-
230V, 50Hz control box
-
Control box rated current: 7A
-
25µF capacitor
-
IP44 control box protection
-
Designed for deep-well borehole installations
-
Maximum motor immersible depth of 150 m
-
Suitable for compatible 4" submersible pump ends
-
Designed for reliable borehole water pumping applications
What's Included
-
1 × ALGO V4K-05M LAVO Series 4" Oil Filled Single-Phase Submersible Motor – 0.55 kW
-
1 × ALGO Single-Phase Submersible Pump Control Box – 0.55 kW
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Series | LAVO |
| Motor Model | V4K-05M |
| Package Type | Submersible Motor & Control Box |
| Motor Type | Oil Filled Submersible Motor |
| Motor Diameter | 4" |
| Motor Power | 0.55 kW |
| Phase | Single Phase |
| Control Box | Included |
| Control Box Rating | 0.55 kW |
| Control Box Voltage | 230V, 50Hz |
| Control Box Rated Current | 7A |
| Control Box Capacitor | 25µF |
| Control Box Protection | IP44 |
| Maximum Motor Immersible Depth | 150 m |
| Installation Type | Deep-Well / Borehole |
Applications
Ideal for:
-
Borehole pumping systems
-
Deep-well installations
-
Domestic water supply
-
Agricultural water systems
-
Irrigation systems
-
General water supply applications
-
Compatible 4" submersible pump systems
Please Note: This package includes the submersible motor and control box only. A compatible submersible pump end and any additional cables, piping, fittings and installation components required to form a complete pumping system are not included.
