Victron MultiPlus-II 48/3000/35-32 Backup Power Kit
The Victron MultiPlus-II 48/3000/35-32 Backup Power Kit is a compact single-phase backup energy solution designed for homes, small offices, and essential-load applications.
Built around the Victron MultiPlus-II 48/3000/35-32 Inverter/Charger and a Dyness DL5.0C V2 5.12 kWh lithium battery, this system provides dependable backup power during grid interruptions while allowing for future system expansion and solar integration.
System Information
The system includes a 2,400 W continuous-output Victron MultiPlus-II inverter/charger paired with one Dyness DL5.0C V2 5.12 kWh 51.2 V lithium iron phosphate battery.
The inverter can support short-duration AC loads of up to approximately 3,120 W. At a typical continuous load of 1 kW, the battery may provide approximately 5.1 hours of runtime under ideal conditions.
Actual runtime will vary depending on:
-
Connected load
-
Battery state of charge
-
Battery condition and temperature
-
Inverter and standby consumption
-
System configuration
-
Installation conditions
Avoiding unnecessary high peak loads can help extend battery runtime and improve overall system performance.
Key Features
-
Complete Victron and Dyness backup power solution
-
2,400 W continuous pure sine wave output
-
Approximately 5.12 kWh lithium battery storage
-
Fast automatic transfer during grid interruptions
-
Victron PowerAssist technology
-
Intelligent multi-stage battery charging
-
Suitable for essential household and office loads
-
Expandable battery storage options
-
Compatible with future solar PV integration
-
Designed for professional single-phase installations
Reliable Backup Power
The MultiPlus-II combines a pure sine wave inverter, intelligent battery charger, and automatic transfer switch in one unit. During a grid failure, the inverter automatically supplies power from the connected battery to the designated backup circuits.
Its pure sine wave output makes it suitable for equipment such as:
-
Lighting
-
Internet and networking equipment
-
Televisions
-
Computers
-
Security systems
-
Refrigeration
-
Small appliances
-
Selected pumps and motors within the inverter’s capacity
Victron PowerAssist
Victron’s PowerAssist technology can supplement a limited grid or generator supply with battery power whenever electrical demand temporarily exceeds the available AC input.
When demand reduces, available incoming power can be used to recharge the battery.
Dyness Lithium Battery Storage
The included Dyness DL5.0C V2 battery provides 5.12 kWh of lithium iron phosphate storage in a compact 51.2 V format. LiFePO₄ technology offers strong cycle life, stable performance, and efficient charging and discharging.
Additional compatible battery capacity may be added where longer backup duration is required, subject to correct system design and manufacturer requirements.
Applications
Ideal for:
-
Essential home backup
-
Small office backup
-
Internet and communication equipment
-
Lighting and security systems
-
Refrigeration
-
Home entertainment equipment
-
Small appliances
-
Off-grid and hybrid energy systems

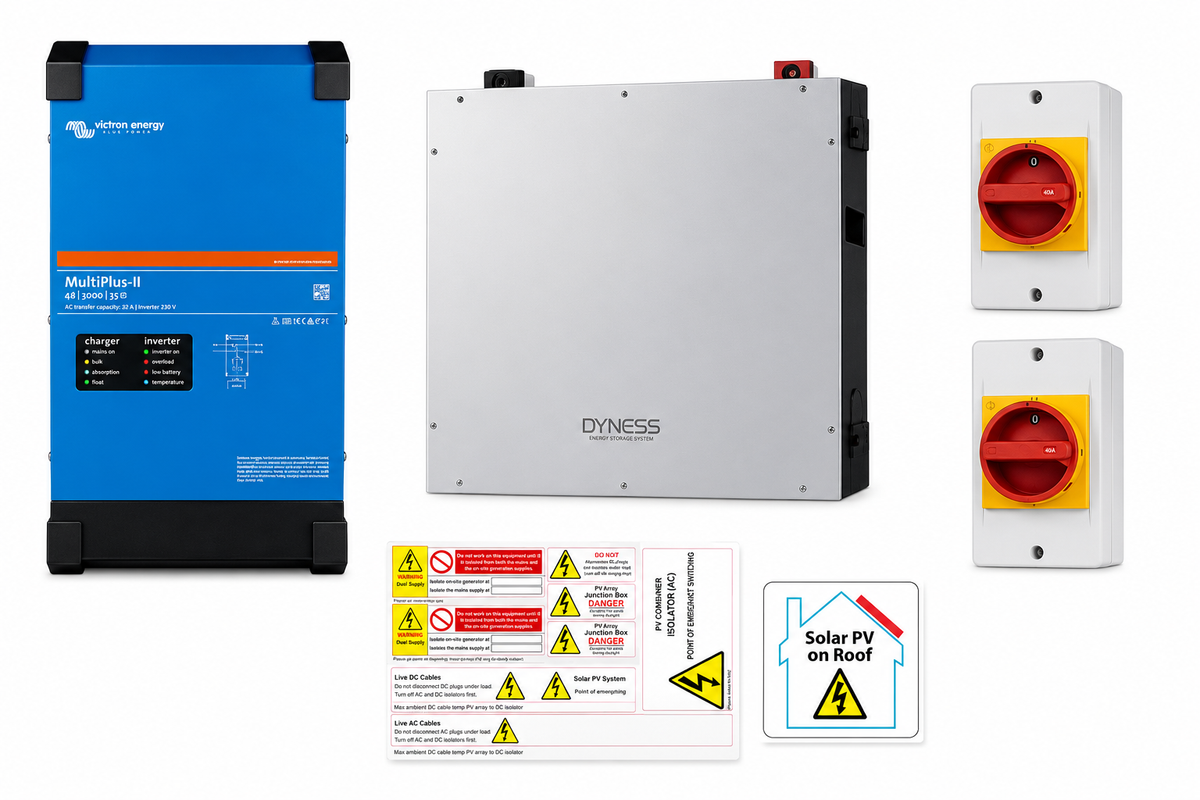

Kit Includes
Main Equipment
-
1 × Victron MultiPlus-II 48/3000/35-32 Inverter/Charger
-
1 × Dyness DL5.0C V2 5.12 kWh 51.2 V LFP Battery
Protection and Labelling
-
2 × K&N Single-Phase 40 A AC Switch Disconnectors
-

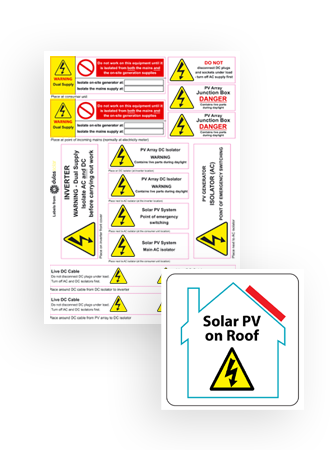

1 × PV Roof and Hazard Label Pack
Specifications
Inverter/Charger
-
Brand: Victron Energy
-
Model: MultiPlus-II 48/3000/35-32
-
Battery Voltage: 48 V
-
Rated Apparent Power: 3,000 VA
-
Continuous Output Power: 2,400 W
-
Maximum AC Output: Approximately 3,120 W for short-duration loads
-
Output Waveform: Pure Sine Wave
-
Battery Charger Rating: 35 A
-
AC Transfer Rating: 32 A
Battery
-
Brand: Dyness
-
Model: DL5.0C V2
-
Nominal Voltage: 51.2 V
-
Nominal Capacity: 5.12 kWh
-
Battery Quantity: 1
-
Battery Chemistry: Lithium Iron Phosphate (LiFePO₄)
General
-
Kit Reference: KIT-VIC-MULTIPLUS-II-3-48-BU
-
System Type: Single-Phase Backup Power System
-
Nominal Stored Energy: 5.12 kWh
-
Typical Estimated Runtime at 1 kW: Approximately 5.1 hours under ideal conditions
-
Solar Compatibility: Solar equipment may be added as part of a correctly designed system
What’s Included
-
1 × Victron MultiPlus-II 48/3000/35-32 Inverter/Charger
-
1 × Dyness DL5.0C V2 5.12 kWh Battery
-
2 × K&N Single-Phase 40 A AC Switch Disconnectors
-
1 × PV Roof and Hazard Label Pack
Important: This system must be installed, configured, and commissioned by a qualified electrician or technician. The installer must verify system sizing, cable ratings, battery communication, protection devices, earthing, backup circuits, and compliance with applicable South African electrical regulations. Additional installation materials may be required depending on the site and final system design.
