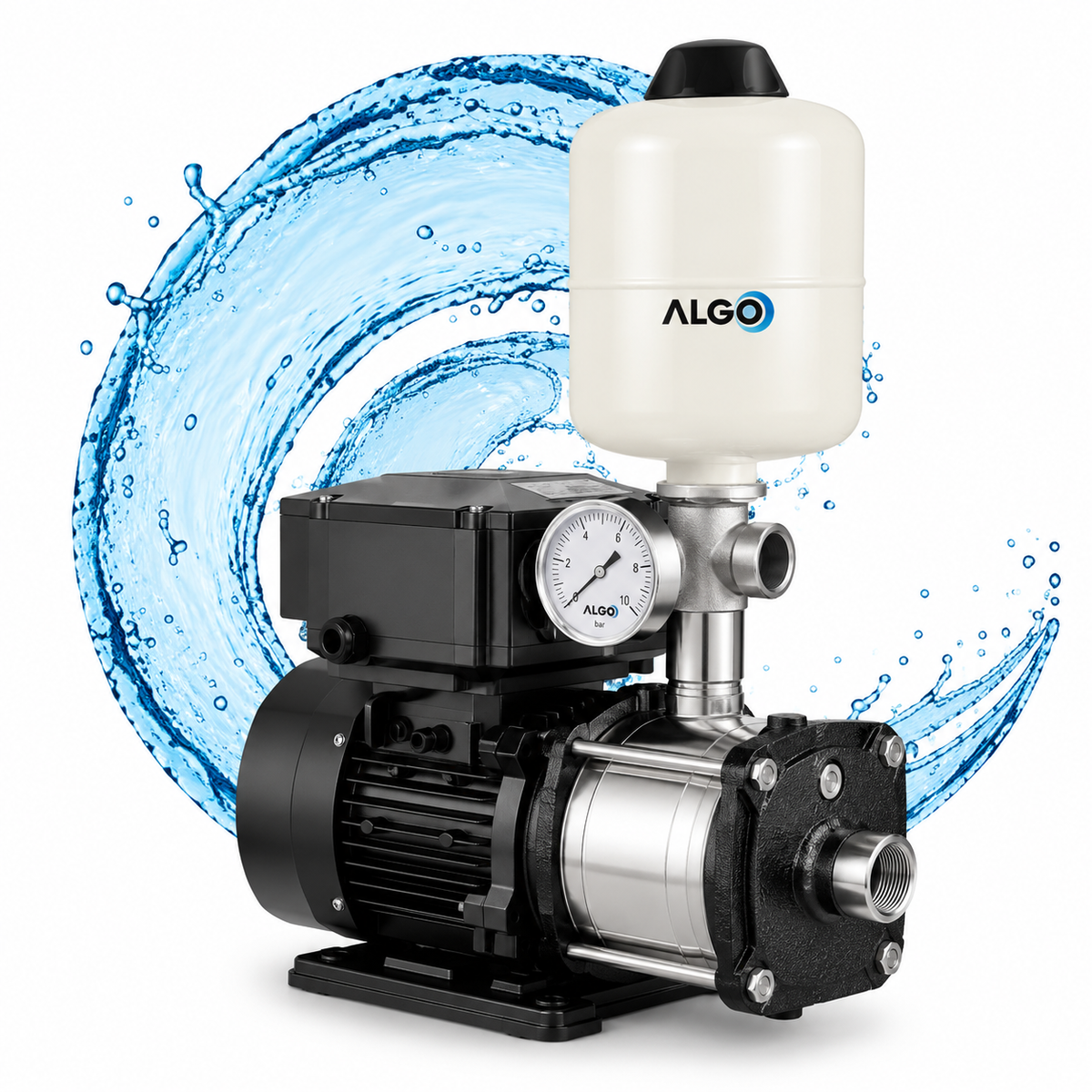

ALGO Xstream 204H – VFD Constant Pressure Booster Pump
The ALGO Xstream 204H is a compact Variable Frequency Drive (VFD) booster pump designed to provide stable and consistent water pressure for residential and small commercial applications. Its intelligent variable-speed operation automatically adjusts pump performance according to water demand, helping maintain constant pressure while improving operating efficiency.
The Xstream 204H features a 600 W, 220 V single-phase motor, with a rated flow of 2 m³/h at a rated head of 37 metres. It is capable of reaching a maximum head of 45 metres and a maximum flow of 4.8 m³/h, making it well suited to domestic water supply and pressure-boosting applications.
Key Features
-
600 W VFD booster pump
-
220 V single-phase operation
-
Built-in Variable Frequency Drive (VFD)
-
Constant-pressure water supply
-
Permanent magnet synchronous motor
-
Automatically adjusts operation according to water demand
-
Rated head of 37 m
-
Rated flow of 2 m³/h
-
Maximum head of 45 m
-
Maximum flow of 4.8 m³/h
-
5000 rpm motor speed
-
1" × 1" connections
-
Adjustable pressure setting
-
Integrated pressure transmitter
-
2 L pressure tank
-
IP54 protection
-
NSK bearings
-
SS304 hydraulic components
-
SiC / Graphite mechanical seal
-
Compact all-in-one pressure-boosting solution
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Series | Xstream |
| Model | Xstream 204H |
| Product Type | VFD Constant Pressure Booster Pump |
| Power | 600 W |
| Voltage | 220 V |
| Phase | Single Phase |
| Current | 3.6 A |
| Rated Head | 37 m |
| Maximum Head | 45 m |
| Rated Flow | 2 m³/h |
| Maximum Flow | 4.8 m³/h |
| Motor Speed | 5000 rpm |
| Connection Size | 1" × 1" |
| Protection | IP54 |
| Tank Size | 2 L |
| Ambient Temperature | 0–40°C |
| Liquid Temperature | 0–100°C |
| Motor Type | Permanent Magnet Synchronous Motor |
| Bearing | NSK |
Materials of Construction
| Component | Material |
|---|---|
| Impeller | SS304 Stainless Steel |
| Diffuser | SS304 Stainless Steel |
| Pump Body | SS304 Stainless Steel |
| Shaft | SS304 Stainless Steel |
| Mechanical Seal | SiC / Graphite |
| 5-Way Connector | SS304 Stainless Steel |
Performance
| Performance Specification | Rating |
|---|---|
| Rated Flow | 2 m³/h |
| Rated Head | 37 m |
| Maximum Flow | 4.8 m³/h |
| Maximum Head | 45 m |
| Motor Speed | 5000 rpm |
Intelligent Constant Pressure Operation
The integrated VFD and pressure-control system automatically responds to changing water demand. As water outlets are opened or closed, the pump adjusts its operating speed to help maintain consistent system pressure instead of simply operating continuously at full speed.
This provides a convenient automatic water-pressure solution for homes and smaller commercial installations where water demand varies throughout the day.
Applications
Ideal for:
-
Domestic water pressure boosting
-
Residential water supply
-
Small commercial properties
-
Tank-to-house water supply
-
Constant-pressure water systems
-
Pressure boosting from storage tanks
-
Water transfer applications
-
General clean-water pumping
The ALGO Xstream 204H combines intelligent VFD control, a compact design, stainless steel hydraulic components and automatic constant-pressure operation to provide an efficient and dependable solution for everyday water supply and pressure boosting.
