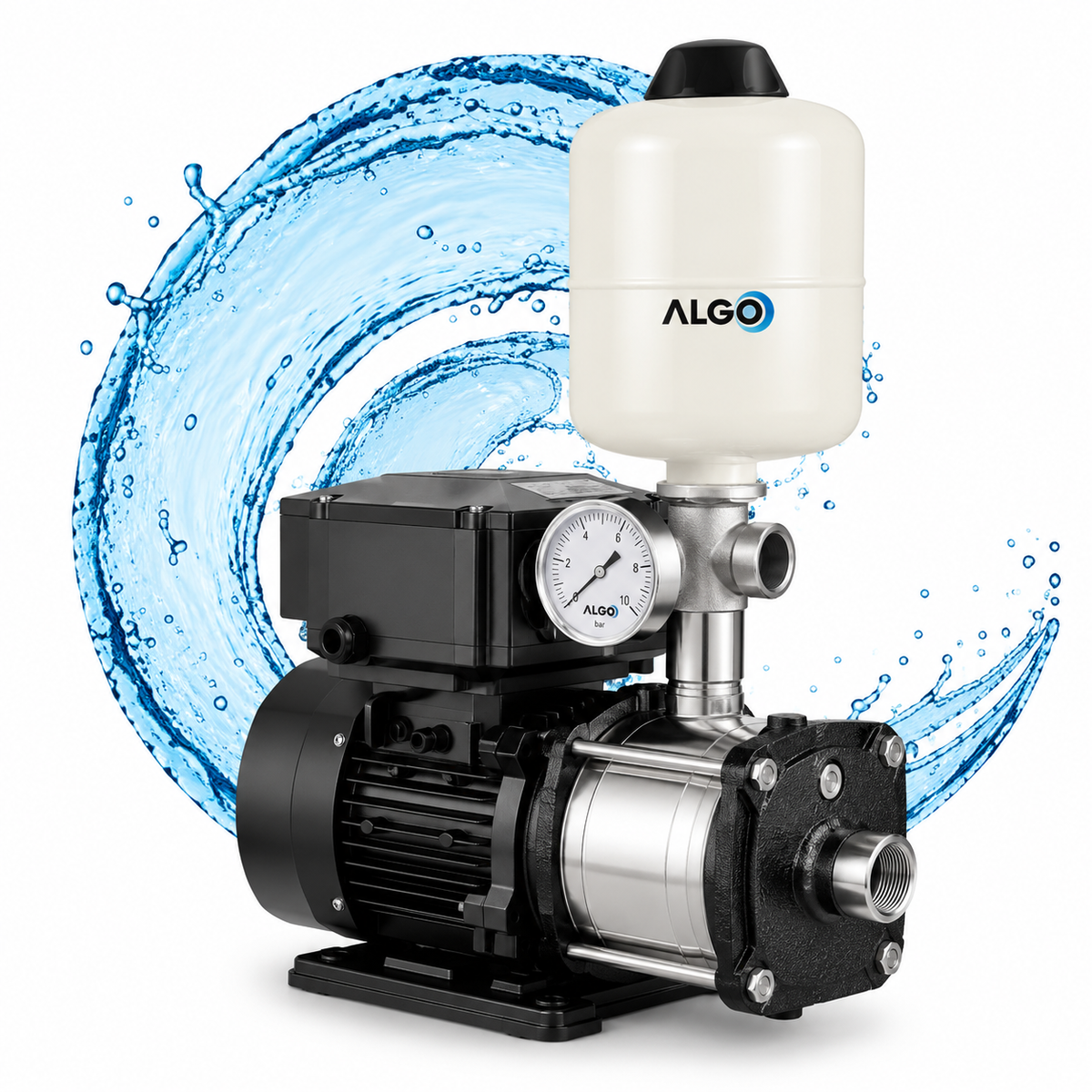

ALGO Xstream 405S – VFD Constant Pressure Booster Pump
The ALGO Xstream 405S is a powerful Variable Frequency Drive (VFD) constant pressure booster pump designed to provide stable and consistent water pressure as demand changes. Its intelligent variable-speed control automatically adjusts pump operation according to water usage, making it an efficient solution for residential, commercial and general water pressure boosting applications.
The Xstream 405S features a 1500 W, 220 V single-phase motor, delivering a rated flow of 4 m³/h at a rated head of 45 metres. With a maximum head of 55 metres and a maximum flow of 8 m³/h, it provides strong pressure performance for demanding water supply applications.
Key Features
-
1500 W VFD constant pressure booster pump
-
220 V single-phase operation
-
Built-in Variable Frequency Drive (VFD)
-
Automatic constant-pressure operation
-
Adjusts pump performance according to water demand
-
Rated head of 45 m
-
Rated flow of 4 m³/h
-
Maximum head of 55 m
-
Maximum flow of 8 m³/h
-
4000 rpm operating speed
-
1¼" × 1" connections
-
Adjustable pressure setting from 2–5 bar
-
24V, 4–20mA pressure transmitter
-
Integrated 2 L pressure tank
-
IP54 protection
-
NSK bearings
-
SS304 hydraulic components
-
SiC / Graphite mechanical seal
-
Suitable for continuous automatic pressure boosting
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Series | Xstream |
| Model | Xstream 405S |
| Product Type | VFD Constant Pressure Booster Pump |
| Power | 1500 W |
| Voltage | 220 V |
| Phase | Single Phase |
| Motor Input Current | 6.2 A |
| Controller Input Current | 10.1 A |
| Rated Head | 45 m |
| Maximum Head | 55 m |
| Rated Flow | 4 m³/h |
| Maximum Flow | 8 m³/h |
| Motor Speed | 4000 rpm |
| Connection Size | 1¼" × 1" |
| Pressure Setting Range | 2–5 Bar |
| Pressure Transmitter | 24V, 4–20mA |
| Protection | IP54 |
| Tank Size | 2 L |
| Ambient Temperature | 0–40°C |
| Liquid Temperature | 0–100°C |
| Bearing | NSK |
Materials of Construction
| Component | Material |
|---|---|
| Impeller | SS304 Stainless Steel |
| Diffuser | SS304 Stainless Steel |
| Pump Body | SS304 Stainless Steel |
| Shaft | SS304 Stainless Steel |
| Mechanical Seal | SiC / Graphite |
| 5-Way Connector | SS304 Stainless Steel |
Performance
| Performance Specification | Rating |
|---|---|
| Rated Flow | 4 m³/h |
| Rated Head | 45 m |
| Maximum Flow | 8 m³/h |
| Maximum Head | 55 m |
| Motor Speed | 4000 rpm |
Intelligent Constant Pressure Operation
The integrated VFD and pressure transmitter allow the Xstream 405S to automatically respond to changing water demand. As water outlets are opened or closed, the system adjusts the pump speed to help maintain the selected pressure, providing a more consistent water supply without requiring the pump to operate continuously at maximum speed.
Applications
Ideal for:
-
Domestic water pressure boosting
-
Residential water supply
-
Commercial water supply
-
Tank-to-house water supply
-
Constant-pressure water systems
-
Pressure boosting from storage tanks
-
Water transfer systems
-
General clean-water pumping
The ALGO Xstream 405S combines a 1500 W variable-speed motor, strong 55 m maximum head, stainless steel hydraulic components and intelligent constant-pressure control to provide a dependable solution for automatic water supply and pressure boosting.
