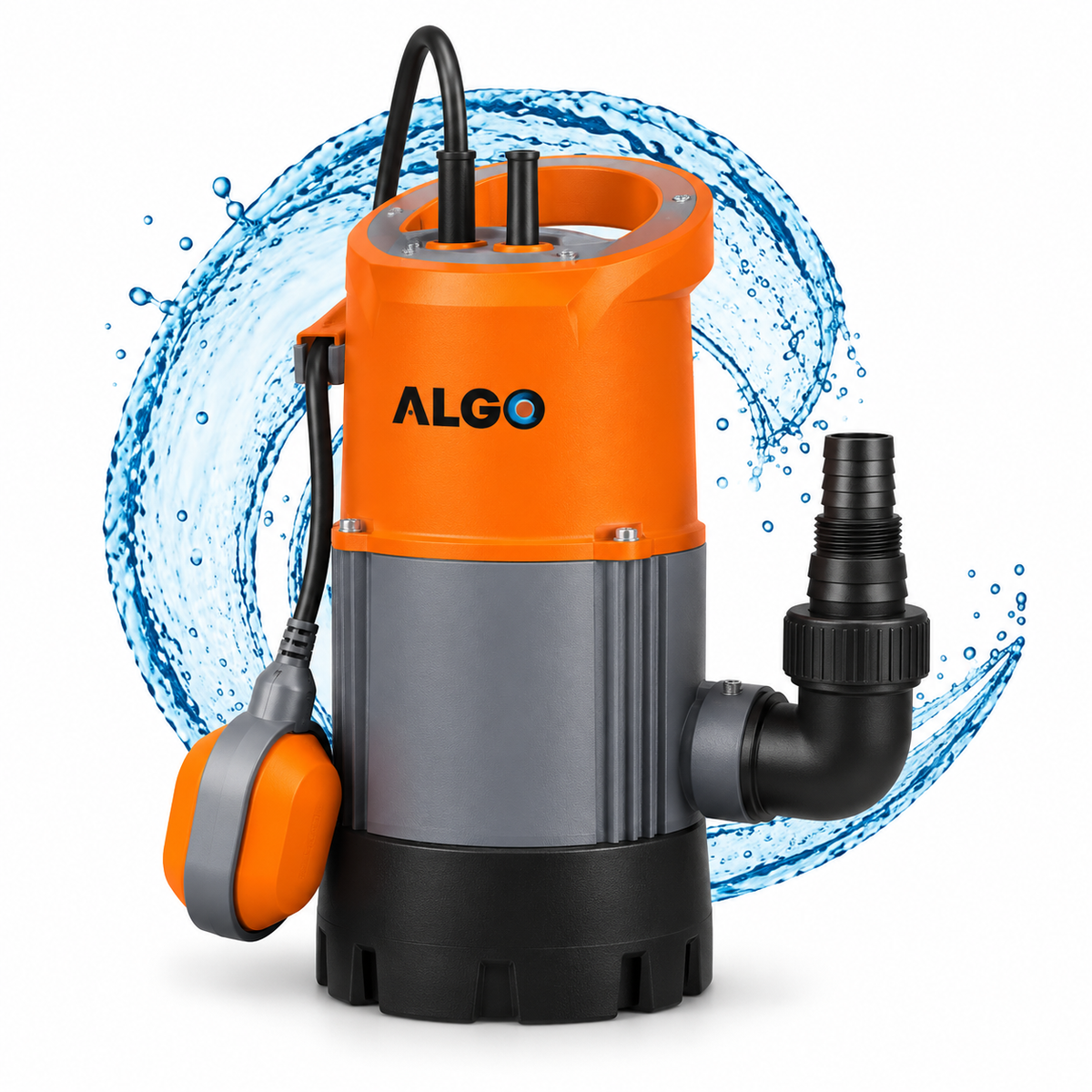

ALGO Zingo 5 – 400W Submersible Drainage Pump
The ALGO Zingo 5 is a compact submersible drainage pump designed for clean-water dewatering and general water-transfer applications. Its submersible construction makes it a practical solution for removing or transferring water from tanks, sumps and other collection areas.
Powered by a 400W single-phase motor, the Zingo 5 operates on 230V, 50Hz and offers a maximum head of approximately 7 meters with a maximum flow of approximately 10 m³/h.
Key Features
-
400W submersible drainage pump
-
Designed for clean-water dewatering
-
Single-phase 230V operation
-
Maximum head of approximately 7 meters
-
Maximum flow of approximately 10 m³/h
-
1¼" connection
-
2900 rpm motor speed
-
IP68 protection
-
Class F insulation
-
S1 continuous duty
-
Supplied with a 10 meter, 3-core power cable
-
Adjustable base for different operating requirements
-
Compact design for convenient water removal and transfer
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALGO |
| Series | Zingo |
| Model | Zingo 5 |
| Product Type | Submersible Drainage Pump |
| Power | 400 W |
| Phase | Single Phase |
| Rated Voltage | 230 V |
| Frequency | 50 Hz |
| Motor Speed | 2900 rpm |
| Maximum Head | Approx. 7 meters |
| Maximum Flow | Approx. 10 m³/h |
| Connection Size | 1¼" |
| Duty | S1 Continuous |
| Protection Rating | IP68 |
| Insulation Class | F |
| Cable | 10 meter, 3-core |
Performance
| Flow (m³/h) | Head (m) |
|---|---|
| 0 | 7 |
| 2 | 5 |
| 4 | 4 |
| 6 | 3 |
| 8 | 2 |
| 10 | 1 |
Materials of Construction
| Component | Material |
|---|---|
| Pump Housing | Polypropylene |
| Motor Housing | Polypropylene |
| Impeller | Polypropylene |
Applications
Ideal for:
-
Clean-water dewatering
-
Water tanks
-
Sumps and collection areas
-
General drainage applications
-
Water transfer
-
Domestic water management
-
Removing accumulated clean water
The ALGO Zingo 5 combines a compact submersible design with 400W power, a maximum head of approximately 7 meters and flow capacity of approximately 10 m³/h, making it a practical solution for everyday clean-water drainage and transfer applications.
